Home > Products > 110-240V LED Emergency Conversion Kit Module

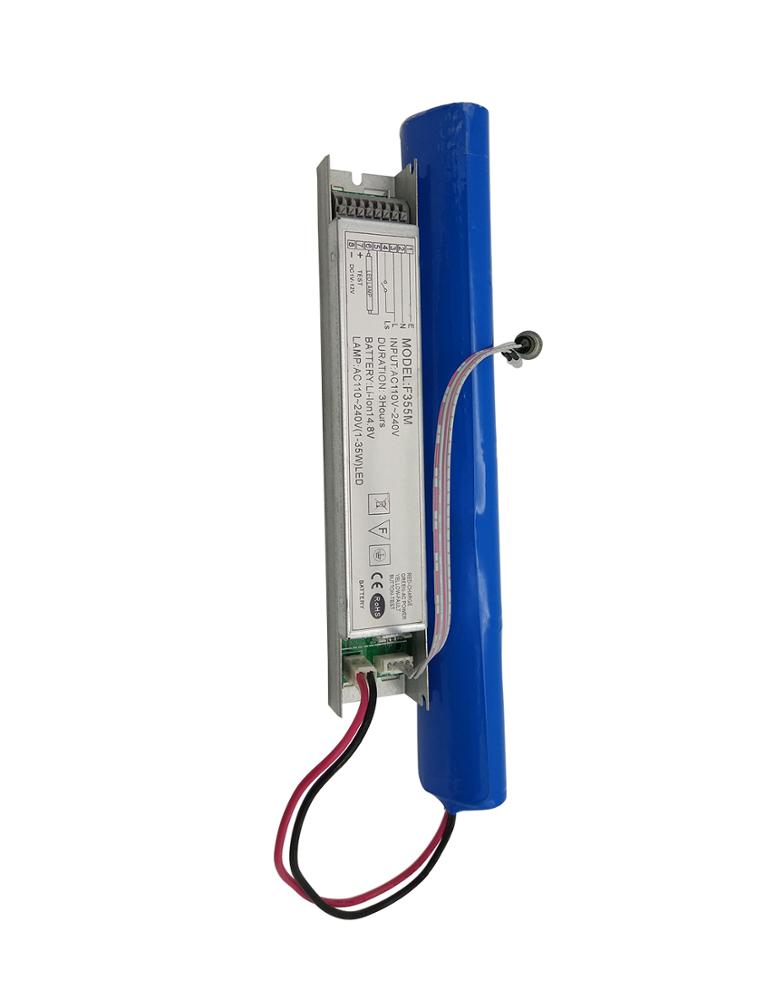

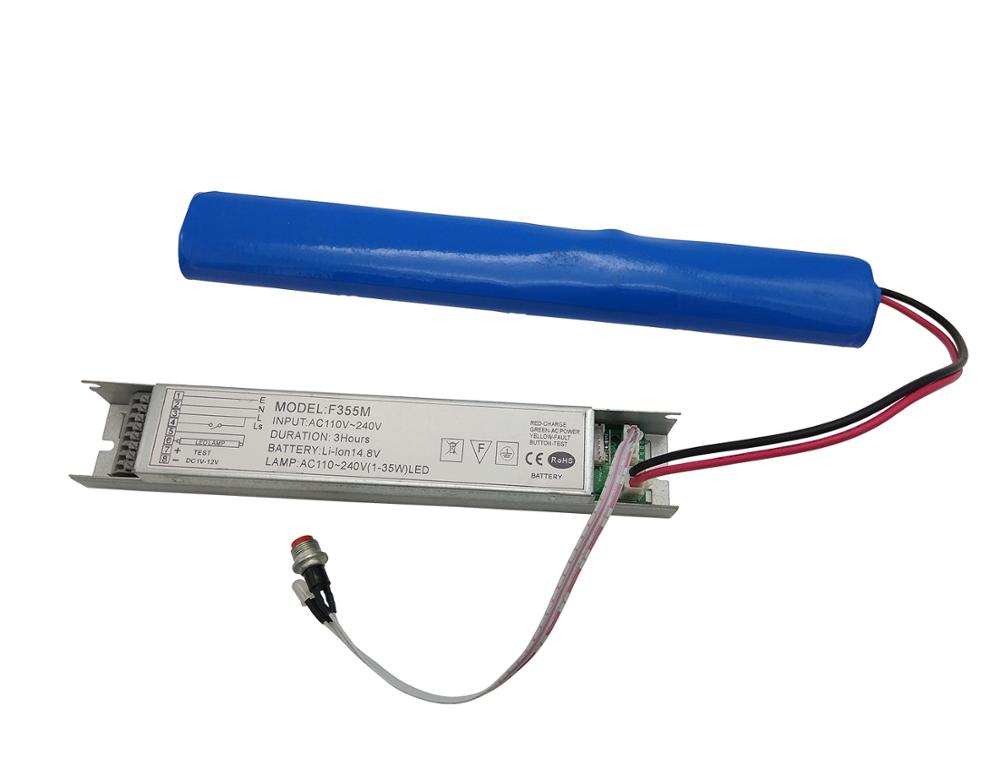

110-240V LED Emergency Conversion Kit Module
Click on the image to view the original image
Product: views:4110-240V LED Emergency Conversion Kit Module
Branch: Zhuiming
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 02:48
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Zhuiming
Bulb Type:
LED
Battery Type:
Lithium Battery
Material:
Steel, Steel Casing
Usage:
Power Supply
Certification:
CE
Specifications:
For 1-45W LED lamp sources
Applied Lamps:
LED, Halogen Lamps, energy saving lamps
Input Voltage:
110~240V
Battery:
Li-ion
Emergency Time:
3 hours
Size:
220*30*30 mm/ 0.3kg
Package:
20pcs/CTN
Lamp Applied:
11-20w led lamp
Warranty:
3 Years
Charge time:
24h/48h
Supply Ability
Supply Ability:
3000 Set/Sets per Day we can supply 3000pcs emergency power source each day
Packaging & Delivery
Packaging Details
20pcs/CTN
Port
Shanghai or Ningbo
110-240V LED Emergency Conversion Kit Module
Product Description

BL20A

Product Show:









Advantage :

a. Widely used. F355M is widely used. It mainly used to supply power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers.

b. High quality. F355M is made of high quality electronic components. It has long operating life and low power consumption

c. High-level lithium battery. F355M use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.

d. F355M can be used build-in or external. Depend on the lamp.

e. ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.

f. Self-test. (Pls. see instruction as below.)

g. Protect circuit board in battery packs to make safe when battery charging or discharging.

h. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate. )



 Technical parameters:



1) Input voltage: AC220V (± 10%) 50Hz / 60Hz



2) Output power: <30W



3) Emergency converting time ≤3S



4) Emergency time:



Number

Lamp type

Rated power

Battery configuration

Emergency time

1

LED tube

11-18W

14.8V/4500mAh

more than 3h

2

LED tube

20-30W

14.8V/4500mAh

more than 1.5h

3

LED downlight

11-18W

14.8V/4500mAh

more than 3h

4

LED downlight

20-25W

14.8V/4500mAh

more than 1.5h

5

LED downlight

1-5W

14.8V/2000mAh

more than 5h

6

LED downlight

6-10W

14.8V/2000mAh

more than 3h

7

LED spotlights

11-18W

14.8V/4500mAh

more than 3h

8

LED spotlights

20-25W

14.8V/4500mAh

more than 1.5h





Test Button Operation and Indicator Status

1. Indicator status without test button operation

Indicator

Performance

Means Status

Red

Lit

Charging

Green

Lit

Fully charged

Slow blink(1Hz)

Manual check mode

blink(3Hz)

Automatic monthly self-check mode

Quick blink(5Hz)

Automatic annual self-check mode

Yellow

Lit

Battery aging, or too short emergency time

Slow blink(1Hz)

Battery is in short circuit or open circuit

blink(3Hz)

Wrong connection with lamps or not matchable lamps

Off



Emergency or stop working condition

2.Test Button Operation and Indicator Status

Pressed time

Indicator status

Check mode

<1s

No reaction

None. To avoid mistakenly operating

1~3s

Slow blink (1Hz) in green

check mode and discharge for 5 seconds

3~5s

blink(3Hz) in green

monthly self-check mode and discharge for 2 mins

5~7s

Quick blink(5Hz) in green

annual self-check mode and discharge for 1 hour

>7s



Stop discharging to recharge again





Company Information

1. Established in 2008, Hangzhou, China

2. Four Production Lines, workshop occupies 1700m2, warehours occupies 1100m2

3. Main Products

  1. Emergency Lights
  2. Exit Sign Lights
  3. Emergency Power Supply





Our Services

1.Any Inquiries will be replied within 24 hours.

2. Professional manufacturer.

3. OEM/ODM available:

1)Silk print logo on the product
2)Customized products
3)Customized package

4. High quality, fashion designs, reasonable & competitive price, fast lead time.

5. After-sale service

1)All products will be strictly quality checked before packing.
2)All products will be well packed before shipping.
3)All products and most of accessories have 3 year warranty.

6. Payment

You can pay for the order via: TT, Western Union,L/C

Certifications



FAQ
:
1. Is it acceptable for OEM and ODM?
Yes, both ODM and OEM are acceptable.
2. How about the life span of LED Lamp?
Under normal condition, it is about 50000h.
3.What can be customized?
1.) Battery
2.) Package
3.) Emergency Time: Normally, it is 3 hours. it can be customzied to be 1.5h, 2h.
