Battery Backup Emergency Escape Bulkhead Light
EL030AN
Technical Data
| Operation | Non-Maintained |
| Input voltage | 110V-127V 50/60 Hz;220V-240V 50/60 Hz |
| Charging Current | 120mA (Nominal) |
| Lamp Used | 30 SMD 3014 White LED |
| Battery | Ni-Cd Battery 3.6V 1.0Ah |
| Indication | Green LED Indicates Charging |
| Duration Time | more than 3 hours |
| Construction | Fire-retardant ABS Casing and Plate; PC Diffuser |
| Ip Rate | IP65 |
| Installation | Wall/Ceiling Surface Mounted |
| Weight | 0.683KG |
| Operating Temperature | -10°C to 55°C |
| Product Size | 345 ×107 ×76 mm(13.6*4.2*3 inch) |
| Customize Option | Battery, Duration Time, Package |

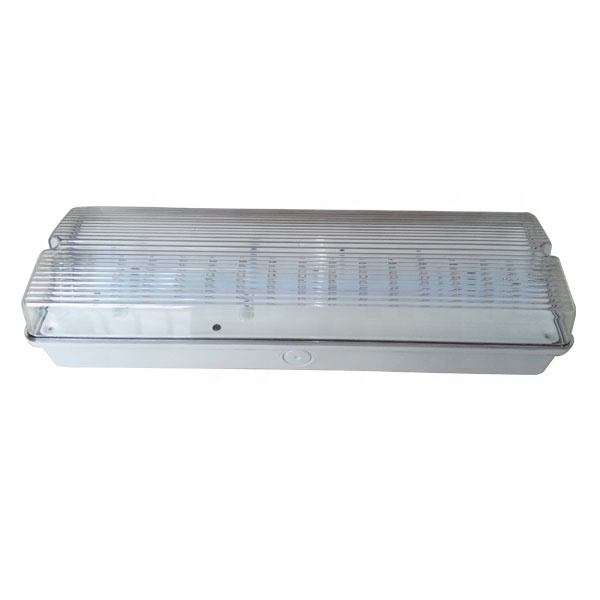

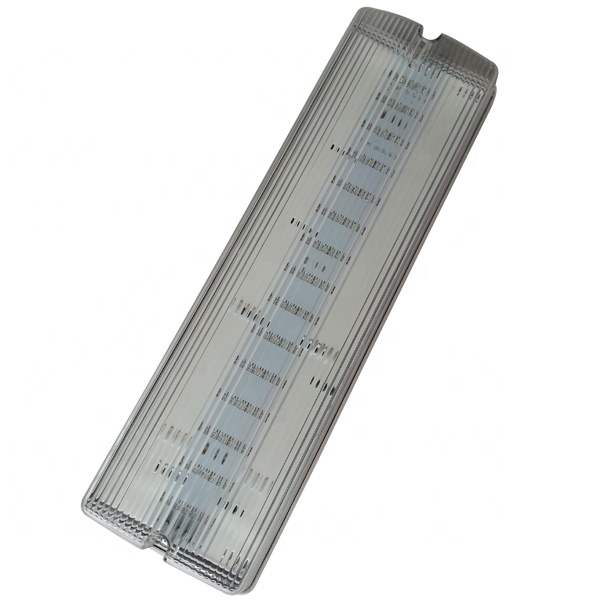

Product Show:
Packing Information
| Package | 1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton |
| Master Carton Size | 45*37*26cm (17.7*14.6*10.2 inch) |
| G.W | 8.45kgs |
| N.W | 6.83kgs |
Delivery Time:
20~35 on receipt of your payment
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
1)Silk print logo on the product
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
1)All products will be strictly quality checked before packing.
2)All products will be well packed before shipping.
3)All products and most of accessories have 3 year warranty.
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3.Exhibitions & Fairs
4.Certificates
- SGS Factory
- CE & Rohs
- IP65
5.Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 5000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes, both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6.What can be customized?
Battery
Package
Emergency time. Other requirements from cutomers. Of course, the engineers will evaluate first.
