Home > Products > Wall Recessed Battery Rechargeable LED Emergency Light
Wall Recessed Battery Rechargeable LED Emergency Light
Click on the image to view the original image
Product： views：4Wall Recessed Battery Rechargeable LED Emergency Light
Branch： Zhuiming
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:48
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Zhuiming
Bulb Type:
LED
Battery Type:
Ni-Cd
Material:
Plastic, ABS Body, PS Diffuser, PP outer casing
Usage:
Building Emergency Use
Certification:
CE
Specifications:
6pcs 5730 smd led
Lamp type:
6 pcs SMD 5730 LED
Lumen:
200 lm
Battery:
Ni-Cd battery 3.6V1.8Ah
Duration Time:
3 hours
product Size:
238mm*80mm*40mm/0.38kg
Installation way:
Wall Recessed
Wattage:
3W
Input Voltage:
220-240V 50/60Hz
Warranty:
3 Years
Supply Ability
Supply Ability:
3000 Unit/Units per Day we can supply led emergency light 3000pcs each day
Packaging & Delivery
Packaging Details
Standard Export Carton
50PCS/CTN
Port
Shanghai or Ningbo

Wall Recessed Battery Rechargeable LED Emergency Light


Product Description





L116N-C1

Product feature:



This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,our emergency light has high lumens,long lifetime, and low energy dissipation feature.

Specification:

Operation

Non-maintained

Input Voltage

220V-240V 50/60Hz

Lamp type

6 pcs SMD 5730 LED

Battery

Nickel-Cadmium Battery 3.6V 1.8Ah

Indicator

Green LED--AC power on, Red LED--charging

Duration Time

More than 3 hours

Construction

Fire Retardant ABS Casing and Plate; PS Diffuser

IP Rate

IP20

Installation

wall Ceiling Recessed

Weight

0.38KG

Size

238mm*80mm*40mm Tolerance ±0.03mm

Package:

Package

1 Set in 1 Inner Box

50 Sets in 1 Outer Carton

Inner Box Size

270*105*45mm

Outer Carton Size

56*29*58mm

Gross Weight

26KG

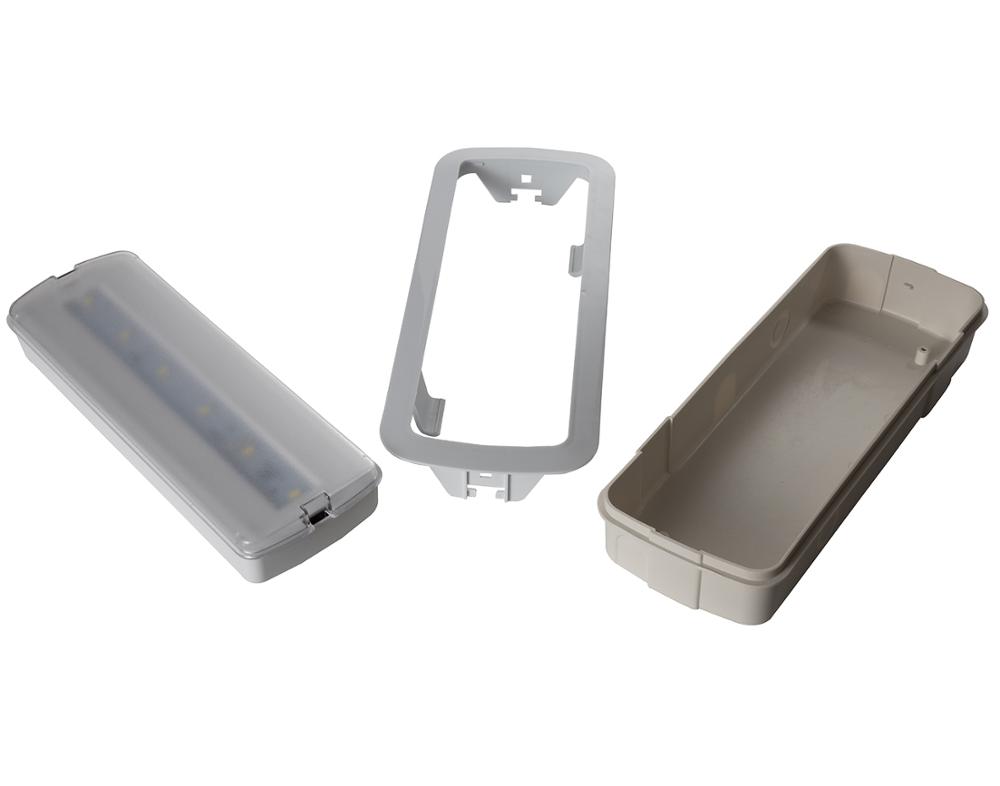

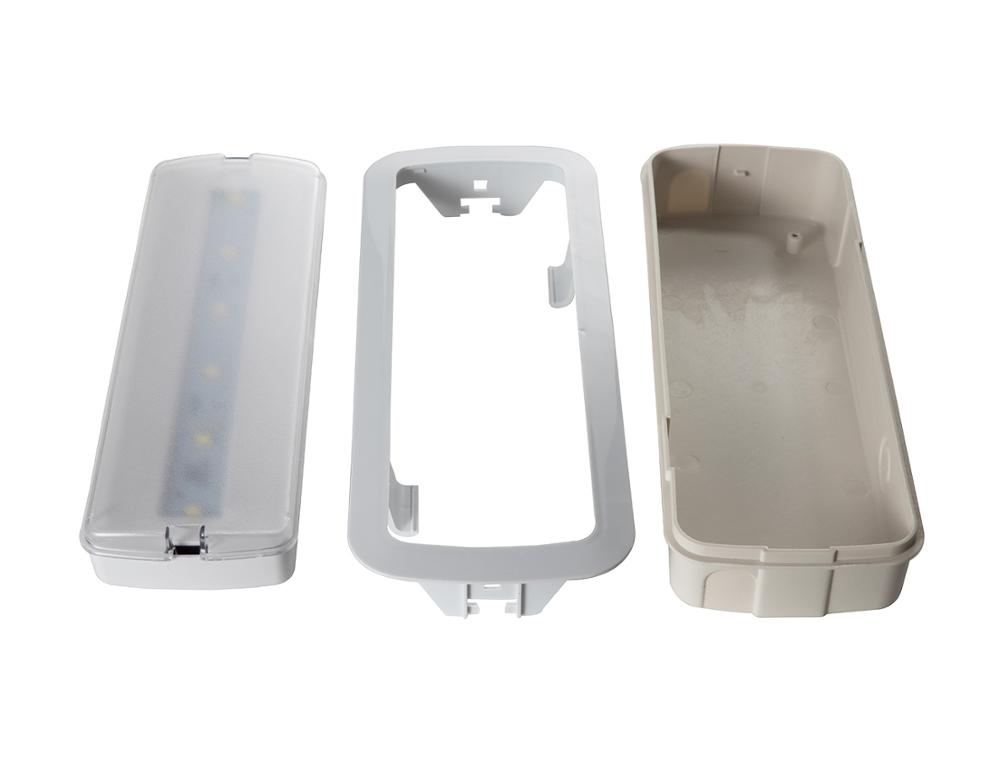

Product show:



Installation step:

1. Open the product ( Pls. use tiny slot type screwdriver or flats tools to tilted

product’s surface gap, make the diffuser separate from the bottom case, and take out the middle plate.

2. Use setscrew to fasten the bottom case on the wall.

3. Put AC wire through the bottom case hole, connect the main circuit board on L,N

    connect terminal

4. Install the middle plate.(Make the indicator lamp through middle plate hold.)

5. Close the diffuser(Fasten with the bottom case)

6. Connect with the AC power




Certifications



Company Information

1. Established in 2008, Hangzhou, China

2. Four Production Lines, workshop occupies 1700m2, warehours occupies 1100m2





3. Main Products

  1. Emergency Lights
  2. Exit Sign Lights
  3. Emergency Power Supply



Our Services

1.Any Inquiries will be replied within 24 hours.

2. Professional manufacturer.

3. OEM/ODM available:

1)Silk print logo on the product
2)Customized products
3)Customized package

4. High quality, fashion designs, reasonable & competitive price, fast lead time.

5. After-sale service

1)All products will be strictly quality checked before packing.
2)All products will be well packed before shipping.
3)All products and most of accessories have 3 year warranty.

6. Payment

You can pay for the order via: TT, Western Union,L/C



Exhibition



FAQ
:
1. Is it acceptable for OEM and ODM?
Yes, both ODM and OEM are acceptable.
2. How about the life span of LED Lamp?
Under normal condition, it is about 50000h.
3.What can be customized?
1.) Battery
2.) Package
3.) Emergency Time: Normally, it is 3 hours. it can be customzied to be 1.5h, 2h.
