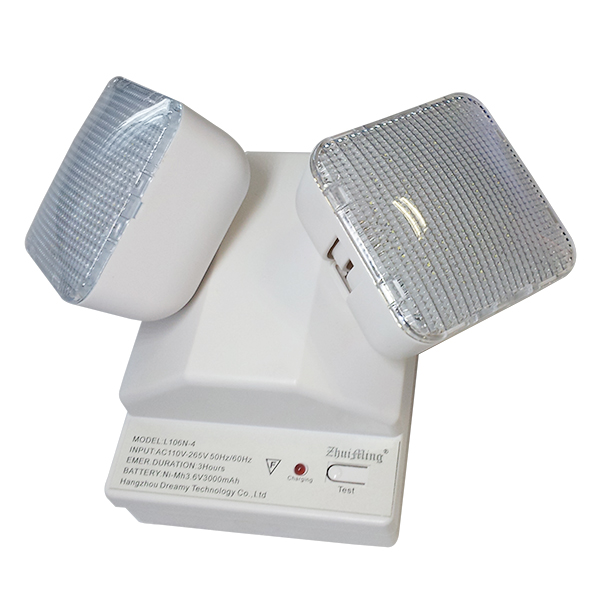

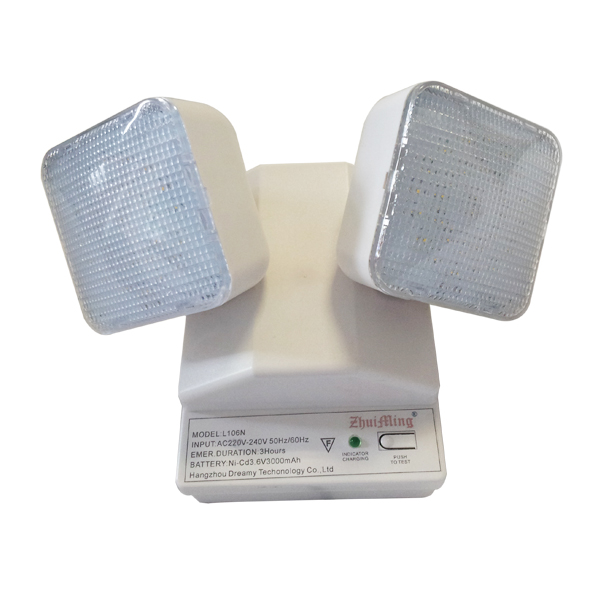

Test Button LED Twin-spot Emergency Light
Function
Automatically lights when a building experiences a sudden AC power failure.
Application and Place postion
Hallway, stairs of High residential buildings & Commercial buildings
- Dormitories/Teaching Buildings
- Office Buildings
- Government Buildings
- Apartment Buildings/Hotels
- Shopping Malls/Super Markets
- Banks
- Hospitals
Advantages & Features
-Easy installation
-Lightweight and small size
-Exquisite Body
-High Water-proof Level
-High Luminous Flux & Efficacy
-Test button for easy regular check
-International standard size
-Over 3 hours emergency time
-Easy wall-hanging installation/Flexible installation
-Energy Saving
-CE & RoHs Standards
-Customization available
-Wide range application
-Rotary Twin Lighting Heads
-Long Emergency Time
Parameters
Technical Parameters | |
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×15 pcs SMD 3014 white LED |
Battery | Nickel-Cadmium Battery 3.6V/1.6AH |
Indicator | Green LED Indicates Power On |
Duration Time | More than 3 hours |
Construction | PC Casing and PC Diffuser |
IP Rate | IP20 |
Installation | Wall Surface Mounted |
Weight | 0.76 kg |
Working Temperature | -10ºC to 55ºC |
Size | 228mm*145mm*165mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Similar Products
Same series products
LED Twin-spot Emergency Light with 2*10pcs SMD white LED:TL020DN
LED Twin-spot Emergency Light with 2*20pcs SMD white LED:TL040AN
LED Twin-spot Emergency Light with 2*30pcs SMD white LED:TL060AN
Same shape products
LED Twin-spot Emergency Light with 2*15pcs DIP white LED: TL030BN
LED Twin-spot Emergency Light with 2*30pcs SMD white LED:TL060AN
Detailed pictures
1. Standard Export Packing
| Package | 1 set in 1 Inner Box, 120sets in Outer Carton |
| Outer Carton Size | 50*47*38 cm |
| Inner Box Size | 24*18*16cm |
| Gross Weight | 11.5kg |
| Net Weight | 10kg |
