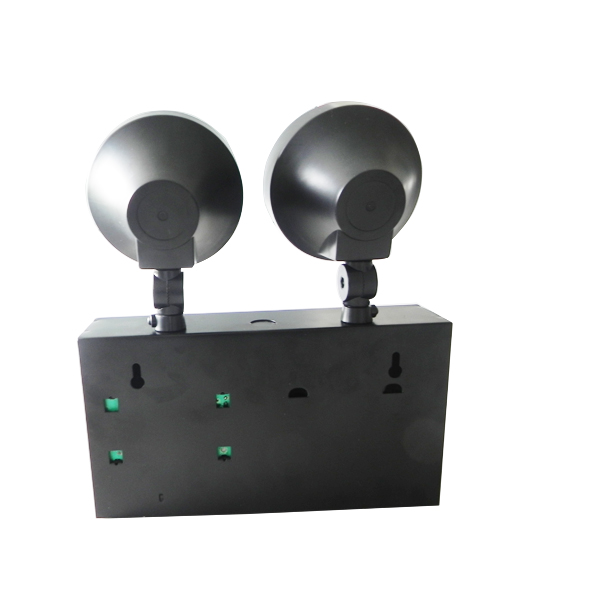

L105N
Defination
Non-maintained fluorescent emergency light after blackout
Function
Over 3hrs emergency lighting after sudden blackout
Application
For High residential buildings & Commercial buildings
- Shoping Malls/Super Markets
- Office Buildings
- Domintaries/Teaching Buildings
- Apartments/ Hotels
- Govenment Buildings
Similar Products
Same series product
LED Twin-spot Emergency Light with 2*15pcs DIP white LED: TL030AN(also same shape)
Same shape products
LED Twin-spot Emergency Light with 2*10pcs SMD white LED:TL020DN
LED Twin-spot Emergency Light with 2*20pcs SMD white LED:TL040AN
Parameters
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×20 pcs smd white LED |
Battery | Nickel-Cadmium Battery 3.6V/3.0Ah |
Indicator | Red LED Indicates Power On |
Duration Time | More than 3 hours |
Construction | Electro-Galvanized Steel Casing & PS Diffuser |
IP Rate | IP20 |
Installation | Wall Surface Mounted |
Weight | 1.50 kg |
Working Temperature | -10ºC to 60ºC |
Size | 272mm*80mm*300mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Features & Advantages
Test button for easy regular check

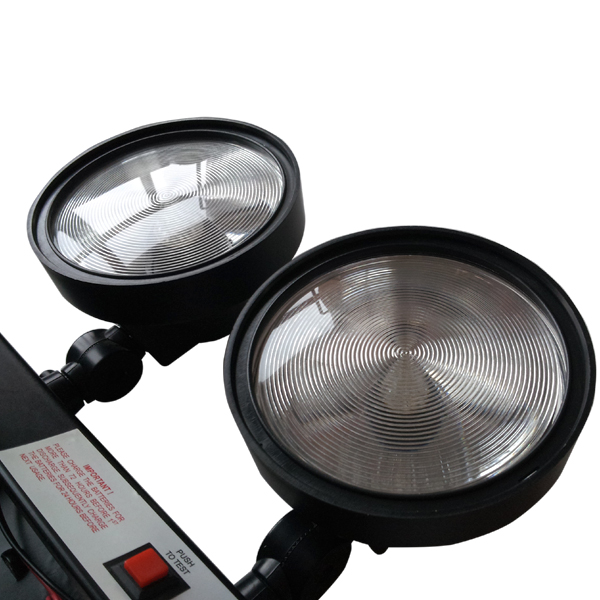

Rotary Twin Lighting Heads
Energy Saving Design
Long Emergency Time
CE & RoHs Standards
3 years warranty
Customization available
Detailed Pictures
- Standard Export Package
- 1 set in 1 Innder Box
12 sets in Baster Carton
- Master Carton size: 57*29*33.5 CM
2. N.W.: 11.4KG
G.W.: 13KG
Customization Services
Duration time can be customized
Indication Lamp: red or green optional
Battery can be choosed
After sales services
warranty: 3 years
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
1. What is the main differences of Fluorescent lamp and LED?
Main differences are power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
