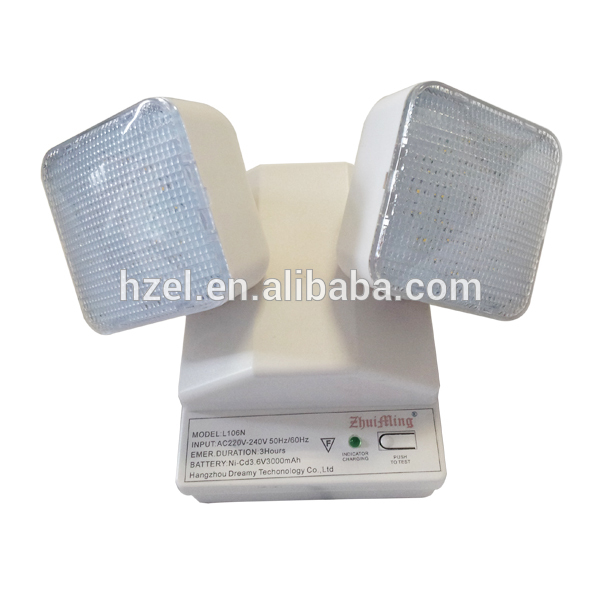

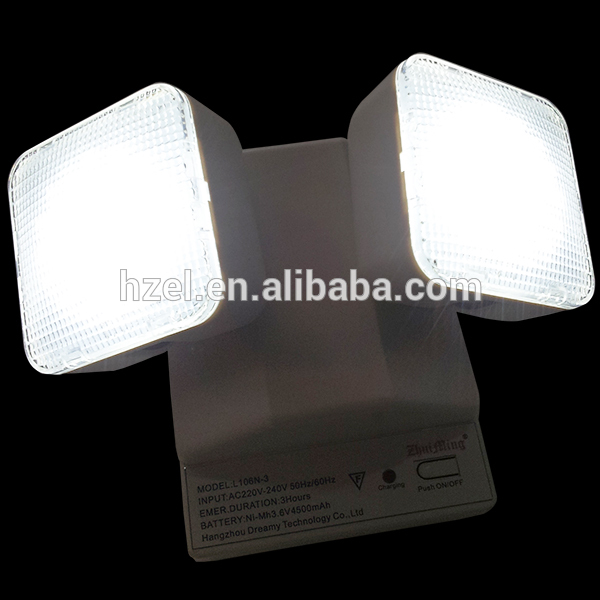

Fireproof Twin-spot Power Failure LED Emergency Light
Function
Automatically lights when a building experiences a sudden AC power failure.
Application
High residential buildings & Commercial buildings
- Dormitories/Teaching Buildings
- Office Buildings
- Government Buildings
- Apartment Buildings/Hotels
- Shopping Malls/Super Markets
- Banks
- Hospitals
Advantages & Features
-Easy installation
-Lightweight and small size
-Exquisite Body
-High Luminous Flux & Efficacy
-Test button for easy regular check
-International standard size
-Over 1.5 hours emergency time
-Easy wall-hanging installation/Flexible installation
-Energy Saving
-CE & RoHs Standards
-Customization available
-Wide range application
-Rotary Twin Lighting Heads
-Long Emergency Time
Parameters
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×15 pcs SMD 3014 white LED |
Battery | Nickel-Cadmium Battery 3.6V/1.6AH |
Indicator | Green LED Indicates Power On |
Duration Time | More than 3 hours |
Construction | PC Casing and PC Diffuser |
IP Rate | IP20 |
Installation | Wall Surface Mounted |
Weight | 0.76 kg |
Working Temperature | -10℃ to 60℃ |
Size | 228mm×145mm×165mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
1. Standard Export Packing
| Package | 1 set in Inner Box, 12 sets in 1 Outer Carton |
| Outer Carton Size | 50cm*47m*38cm |
| Gross Weight | 11.5 kg |
| Net Weight | 10 kg |
2. Customized Packing
MOQ: 300PCS
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- Hong Kong International Lighting Fair 2014 (Autumn Edition)
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6. What can be customized?
1)Battery
2)Package
3)Emergency time. Usually, it is 3 hours. Can be customized to 1.5h, 2h, 4.5h and so on.
4)Other requirements from customers.
