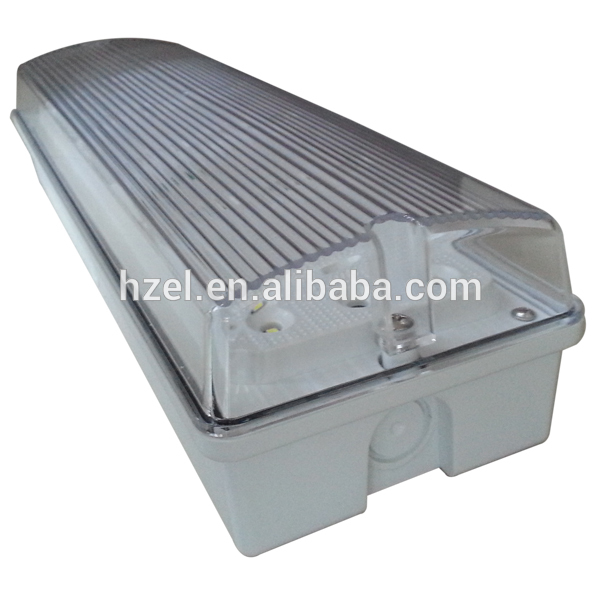

Customized Led Wall/Ceiling Surface Mounted Emergency Bulkhead Lighting
Defination
An emergency light is a battery-backed lighting device that comes on automatically when a building experiences a power outage.
Function
Over 3hrs emergency lighting after sudden blackout
Application
For shoping malls, office buildings,goverment buildings, teaching buildings, Domintaries and so on.
Parameters
Operation | Maintained or Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 15 pcs SMD 2835 white LED |
Battery | Nickel-Cadmium Battery 3.6V 2.5Ah |
Indicator | Green LED Indicates Charging |
Duration Time | More than 3 hours |
Construction | Fire-Retardant ABS Casing and Plate; PC Diffuser |
IP Rate | IP65 |
Installation | Wall Surface Mounted, Ceiling Surface Mounted |
Weight | 0.683kg |
Working Temperature | -10ºC to 55ºC |
Size | 345mm*107mm*76mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Features
High Brightness
Long emergency time, more than 3h after sudden blackout
Intergress protection grade: IP65
Wide range application
shopping malls
office buildings
government buildings
teaching buildings
dormintories
Easy Installation
wall surface mounted
ceilding surface mounted
Detailed pictures
Similar Products
Same shape products
1*15PCS DIP LED water-proof high brightness Emergency LED Light: EL015A
1*8W Flourescent water-proof Emergency Fluorescent Light: EF108AN
1*30PCS SMD LED water-proof high brightness Emergency LED Light: EL030A
1*60 SMD LED water-proof high brightness Emergency LED Light: EL060A
Same serious products
3 hours Emergency LED Light: EL015B
3 hours Emergency LED Light: EL015C
3 hours Emergency LED Light: EL015D
- Standard Export Package
- 1 set in 1 Inner Box
10 sets in Outer Carton
- Master Carton size: 45*37*26CM
2. N.W.: 10KG
G.W.: 13KG
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008
2. Located in Hangzhou, China
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
