Self-contained 3 Hours Battery Operated Power Pack For Led Emergency Light

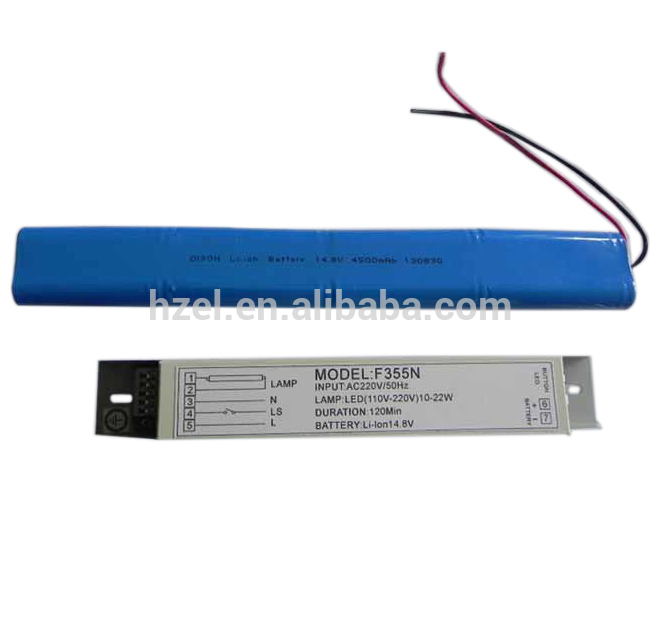

F355M/N
Advantage :
a. Widely used. F355M is widely used. It mainly used to supply power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers
b. High quality. F355M is made of high quality electronic components. It has long operating life and low power consumption
c. High-level lithium battery. F355M use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.d. F355M can be used build-in or external. Depend on the lamp.

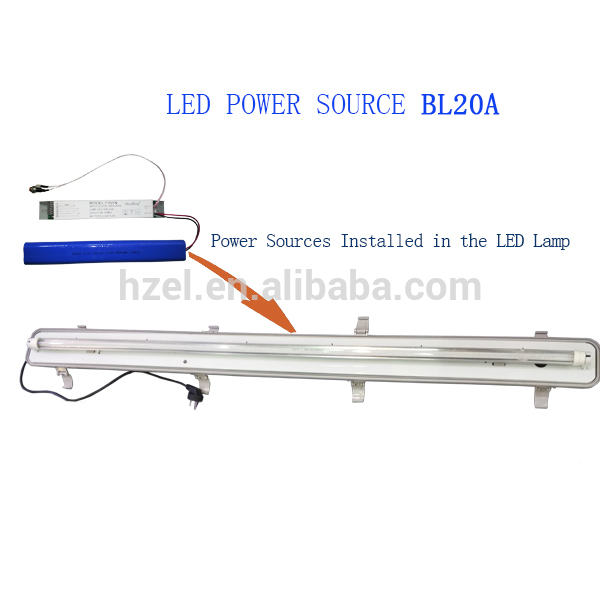

e. ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.
f. Self-test. (Pls. see instruction as below.)
g. Protect circuit board in battery packs to make safe when battery charging or discharging.
h. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate. )
Product Show:
Specification:
Operation | Completely Self-contained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Lamp type | 20w Led Tube |
Battery | Li-ion Battery 14.8V 4.5Ah for 20w Led Tube |
Indicator | Three Colors In 1 LED Indicator, Red Indicates charging, Green Indicates Emergency Mode, Yellow Indicates battery failure; |
Duration Time | More than 2 hours |
Construction | Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating; |
Weight | 0.3kg(Excluding Batteries) |
Size | 220mm×30mm×30mm Tolerance±0.03mm |
Customization | Battery, Duration Time, Package |
Package:
Package | 1 Set in 1 Inner Box,100 Sets in 1 Outer Carton |
Outer Carton Size | 370mm×230mm×230mm |
Gross Weight | 12.5 kg |
Net Weight | 11.5kg |
