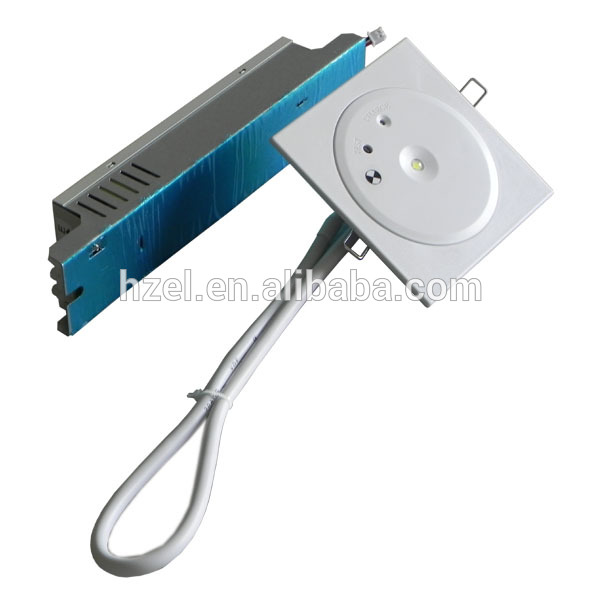

3W Ceiling Recessed PC Material SMD Led PCB Board Emergency Downlight
EL1*3AN
Description
This LED Emergency Down Light is specially designed for ceiling recessed emergency ligting.
Function
Automatically light at once when buildings experience power outage.
Application
High occupancy buildings, commercial buildings, including:
Teaching buildings
Dormitories
Government buildings
Office buildings
Banks
Hospitals
Shopping malls
Installation places
Hallways
Stairways
Advantages
Thin: 3mm, can be fixed with only 3mm out the ceiling
Ceiling Recessed Design: almost invisble, saving room
Convenient Installation: fixed the lamp to the ceiling just with the spring clamp
Energey Saving: 1W for 100lm
High Luminous Efficacy: 1W for 100lm
Long Emergeny Time: 3h
Product Parameters
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz; 220V-240V 50/60Hz |
Charging Current | 40mA(Nominal) |
Lamp type | 3 watt SMD White LED |
Battery | Nickel-Cadmium Battery 3.6V 1.6Ah |
Indicator | Red LED Indicates Charging |
Duration Time | More than 3 hours |
Construction | Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate |
IP Rate | IP42 |
Installation | Ceiling Recessed Mounted |
Weight | 0.5 kg |
Working Temperature | -10ºC to 55ºC |
Size | 350mm*110mm*38mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package, Wire length |
Product Shows
1. Standard Export Packing
| Package | 1 set in Inner Box,20 sets in Outer Carton |
| Outer Carton Size | 45*37*25cm |
| Inner Box Size | 35.5*12*4cm |
| Gross Weight | 12.5kg |
| Net Weight | 10kg |
2. Customized Packing
MOQ: 3000PCS
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6. What can be customized?
1)Battery
2)Package
3)Emergency time. Usually, it is 3 hours. Can be customized to 1.5h, 2h, 4.5h and so on.
4)Other requirements from customers.
