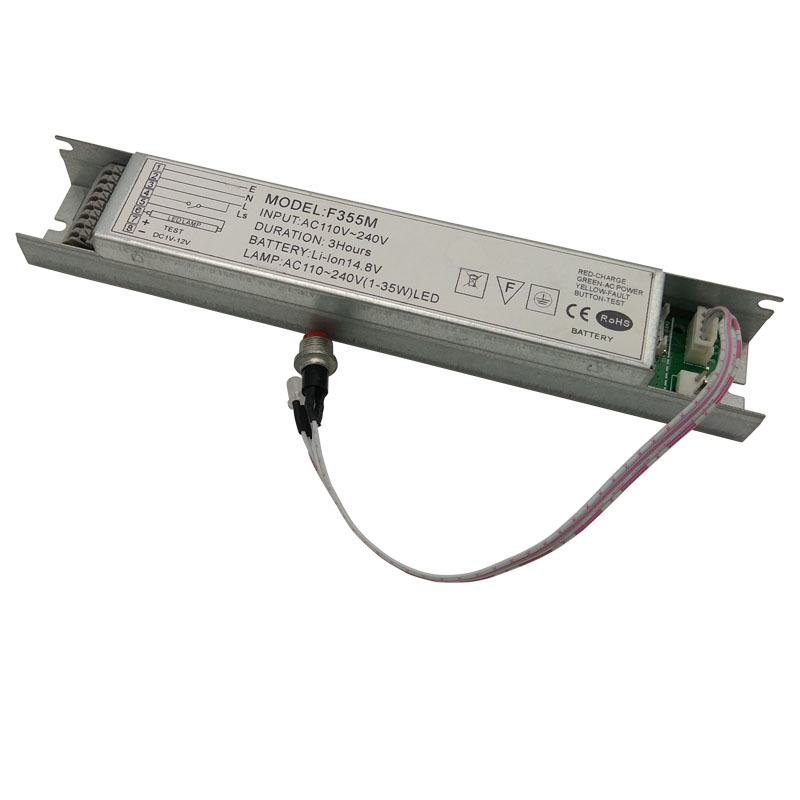

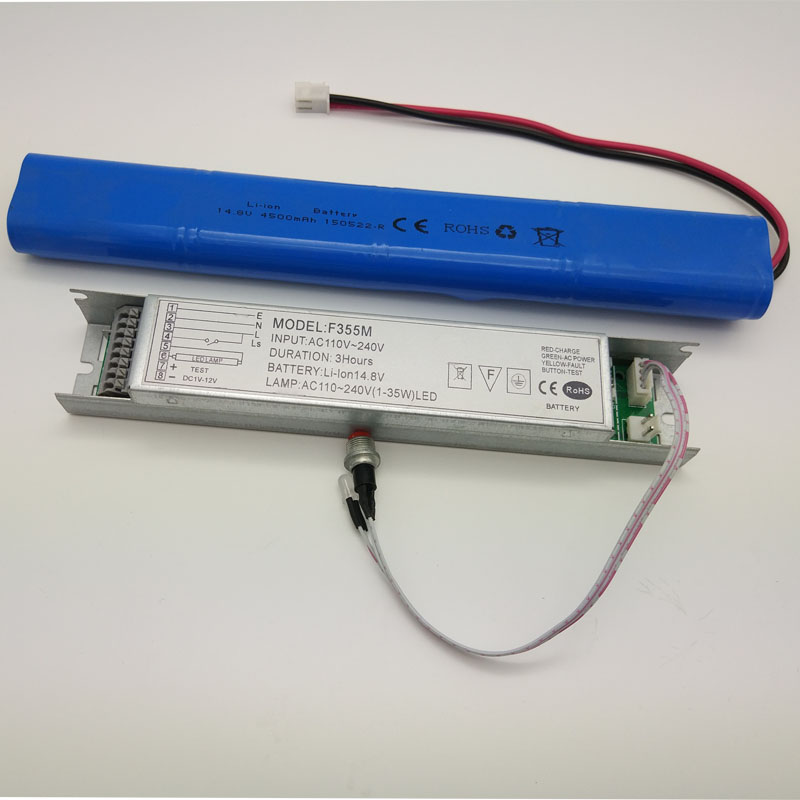

3HR 220V Battery Backup LED Emergency Conversion Kit

Click on the image to view the original image

Product：	views：33HR 220V Battery Backup LED Emergency Conversion Kit
Branch：	Zhuiming
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:02

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Zhuiming

Model Number:: F355AM

Output Power:: 1 - 50W

Output Type:: Multiple

Input Voltage:: 220V, AC110V-220V, 50/60HZ

Output Frequency:: 50/60HZ

Output Current:: 120mA

Description:: 3HR Emergency Light

Model:: F355AM

Indicator:: tri-color LED indicatior

Applied Lamp:: 1-10W LED lamps

Indication:: Red Led Indicates Charging

Duration time:: more than 3 hours

Warranty:: 3 years

Emergency Inverter Weight:: 0.3KG(Excluding Batteries)

Emergency Inverter Size:: 220*30*30 mm(Excluding Batteries)

Output Voltage:: 14.8V

Supply Ability

Supply Ability:: 3000 Piece/Pieces per Day 3HR 220V Battery Backup LED Emergency Conversion Kit

Packaging & Delivery

Packaging Details: 1. Standard Export Carton
24SETS/12.5KG/27*23*17.5CM/CTN
2.Customized Package
MOQ: 3000PCS

Port: Ningbo or Shanghai

3HR 220V Battery Backup LED Emergency Conversion Kit

F355AM

Overview

Emergency power unit CONVERSION KIT LED BL10A is aimed to provide an uninterrupted interior lighting with LED luminaires in case of unforeseen power switch offs. Unit consists of a driver and a rechargeable Ni-Cd battery.

Unit is installed inside of the LED luminaire and provides operation of the LED module during an emergency mode for at least 3 hour. Level of illumination is high enough for orientation, evacuation from the premise or continuation of the work, which cannot be immediately stopped. LED tri-color indicator showing and testing the Ni-Cd battery performance is connected to LED module.

Technical Data

Operation	Completely Self-contained
Input Voltage	110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current	120mA(Nominal)
Lamp type	10w Led Tube
Battery	Li-ion Battery 14.8V 2Ah for 10w Led Tube
Indicator	Three Colors In 1 LED Indicator, Red Indicates charging, Green Indicates Emergency Mode, Yellow Indicates battery failure;
Duration Time	More than 2 hours
Construction	Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating;
Working Temperature	-10ºC to 55ºC
Size	Battery:26518 15.6mm/ 0.24kg Casing: 22131.231.2mm/0.16kg
Customization	Battery, Duration Time, Package
