1x8W Fluorescent Tube Emergency Bulkhead Luminaire EF108B
Defination
This emergency light is a battery-backed lighting device that comes on automatically when a building experiences a power outage.
Function:light automatically after AC powers failure.
Application
Commercial, industrial, government and residential buildings,
including:
Dormitories
Teaching buildings
Office buildings
Shopping malls
Super markets
Banks
Hospitals
Government Buildings
Features & Advantages
- Test button for easy regular check
- Indicator for charging situation
- Easy wall-hanging installation
- International standard size
- Over 3 hours emergency time
- maintain and non-maintain option
Parameters
Operation | Maintained or Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 8 Watt Fluorescent Tube |
Battery | Nickel-Cadmium Battery 3.6V 1.8Ah |
Indicator | Red LED Indicates Charging |
Duration Time | More than 3 hours |
Construction | Fire-Retardant ABS Casing and PC Diffuser |
IP Rate | IP20 |
Installation | Wall Surface Mounted, Ceiling Surface Mounted |
Weight | 1.0kg |
Working Temperature | -10ºC to 60ºC |
Size | 345mm*118mm*80mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Similar products
Same series products:
1*8W fluorescent emergency light with high level water-proof IP65: EF108AN
1*8W fluorescent emergency light: EF108C
2*8W fluorescent emergency light with high level water-proof IP65:EF208AN
Same shape product
1.5W led emergency light: EL015B

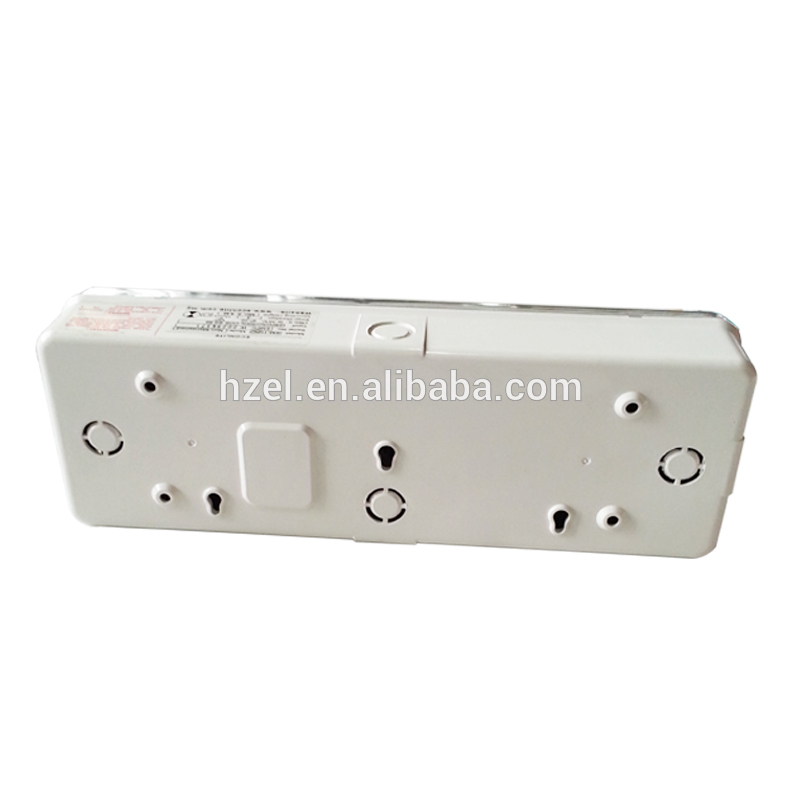

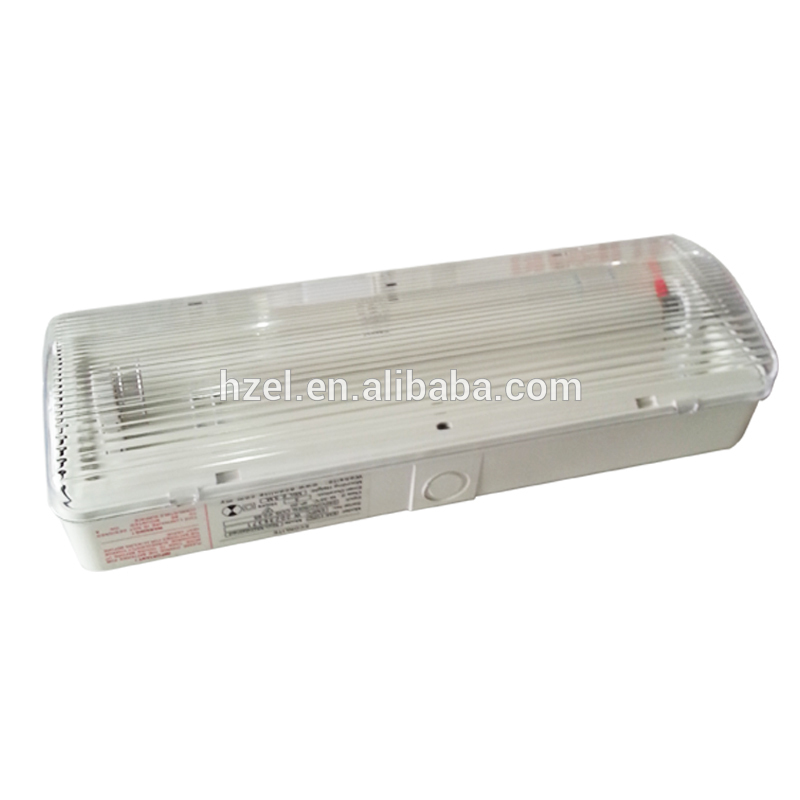

Detailed pictures
| Package | 1 Set in 1 Inner Carton 10 Sets in 1 Master Carton |
| Master Carton Size | 48*40*30cm |
| G.W | 9.5KG |
| N.W | 8KG |
