BF58A
Description

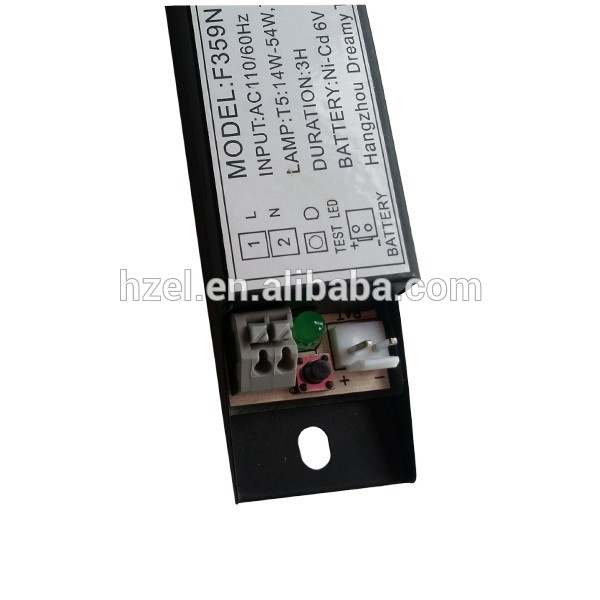

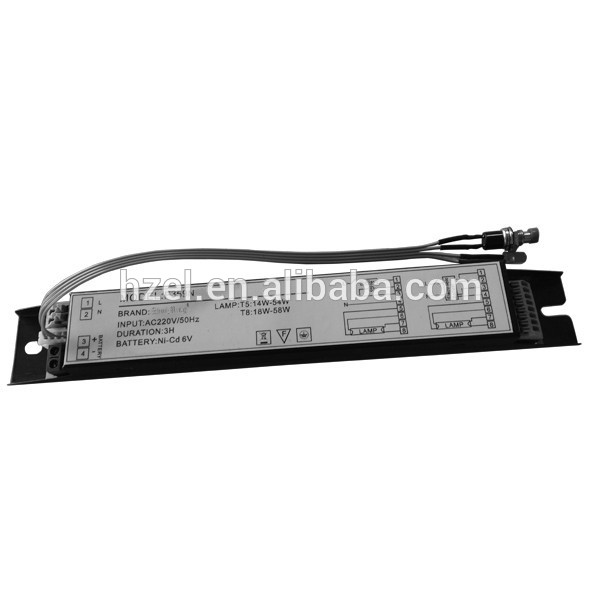

Emergency Power Supply for fluorescent tubes is a device that automatically supplies power to fluorescent tubes when a building experiences power failure. That is to say, with this device, the ordinary fluorescent tubes will automactically light when AC power goes out.
Function
Supply power for ordinary lamp sources after AC power sudden blackout.
Applied Lamp Sources
Fluorescent Lamps
—T5: 14W-54W
—T8: 18W-58W
Parameters
Operation | Completely Self-contained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 200mA(Nominal) |
Lamp type | T5:14w-54w, T8: 18w-58w |
Battery | Nickel-Cadmium Battery 6V/4.5Ah(suggested) |
Indicator | Red LED Indicates Charging |
Duration Time | More than 3 hours |
Construction | Steel Casing or ABS |
Weight | 0.4kg(Excluding Battery Pack) |
Working Temperature | -10ºC to 60ºC |
Size | 220mm*30mm*2mm,Tolerance±0.03mm |
Customization | Battery, Duration Time, Package |
Similar Products
For Fluorescent lamps
Emergency Power Supply for 13W energy Saving Lamp/CFL: BF13A
Emergency Power Supply for 13W-26W PLC or 7W-11W PL: BF26A
Emergency Power Supply for 20-40W Fluorescent Tubes: BF40A
For LED Lamps
Emergency Power Supply for 1-10W Led Lamps: BL10A
Emergency Power Supply for 10-20W Led Lamps: BL20A
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6. What can be customized?
1)Battery
2)Package
3)Emergency time. Usually, it is 3 hours. Can be customized to 1.5h, 2h, 4.5h and so on.
4)Other requirements from customers.
