3 Hour Operation LED emergency lighting fixtures
EL016S
Model: EL016S
Product descrition: High Water-proof Emergency LED Light with 3h emergency time
MOQ: 300PCS
High water-proof level: IP65
Long emergency time: 3h
Defination
An emergency light is a battery-backed lighting device that comes on automatically when a building experiences a power outage.
Function
Over 3hrs emergency lighting after sudden blackout
Application
For shoping malls, office buildings,goverment buildings, teaching buildings, Domintaries and so on.
Features
High Water Proof Design---IP65
Good Heat Dispersion---Metal Casing, PCB, Plate
Quality Luxury Appearance----Aluminum Casing and PC UP Cover
High Brighness: 300LM to 800LM
Long Emergency Time: over 3 hours
Easy Installation---wall surface mounted/ceilding surface mounted
Parameters
Operation | Maintained or Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 16 pcs SMD LED 5730 |
Battery | Nickel-Cadmium Battery 7.2V 4.0Ah |
Indicator | Red-charge, green-AC power, yellow-battery fault |
Duration Time | More than 3 hours |
Construction | Aluminum Casing, PC diffuser |
IP Rate | IP65 |
Installation | Wall Surface Mounted |
Weight | 2.5kg |
Working Temperature | -10ºC to 55ºC |
Size | 310mm*310mm*10.3mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Similar Products
Same Serious Product
Round high water-proof high brightness Emergency LED Light: EL016R
IP65 Products
1.5W high water-proof high brightness Emergency LED Light: EL015A
1.5W high water-proof high brightness Emergency LED Light: EL015D
3W high water-proof high brightness Emergency LED Light: EL015E
3W high water-proof high brightness Emergency LED Light: EL030A
1*8W hours high water-proof Fluorescent Emergency Light: EF108AN
1*8W hours high water-proof Fluorescent Emergency Light: EF108DN
2*8W hours high water-proof Fluorescent Emergency Light: EF208AN

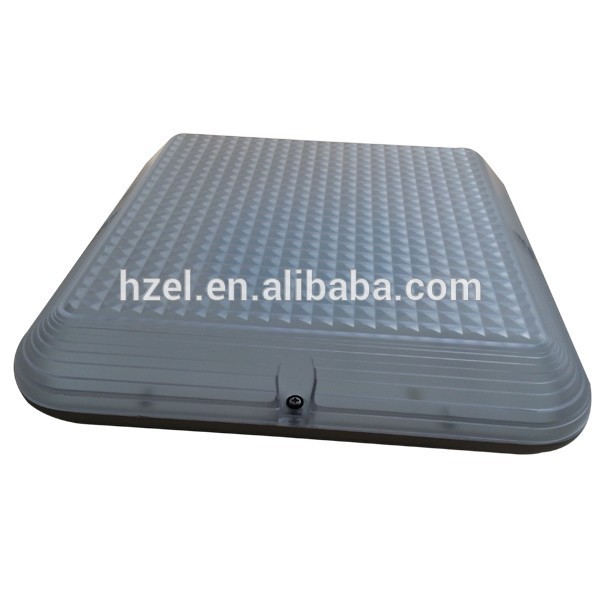

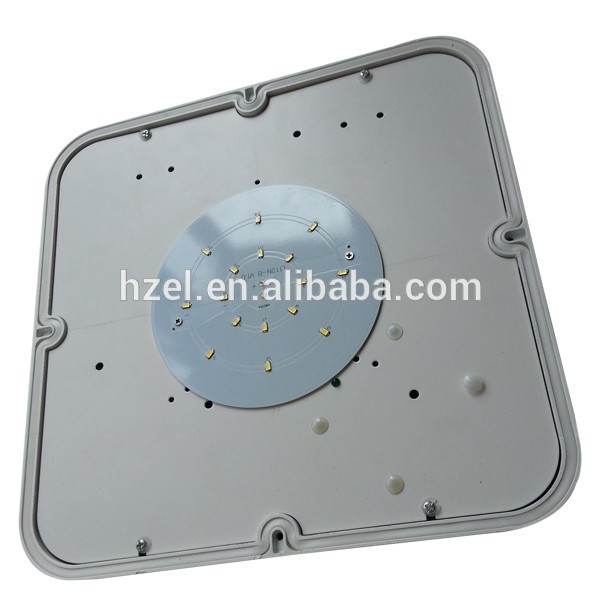

Detailed pictures
- Standard Export Package
- 1set in 1 Innder Box
4 sets in master Carton
- Master Carton size: 48*35*35CM
2. N.W.: 14KG
G.W.: 15KG
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008
2. Located in Hangzhou, China
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 5000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes, both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6.What can be customized?
Battery
Package
Emergency time.
Other requirements from cutomers. Of course, the engineers will evaluate first.
