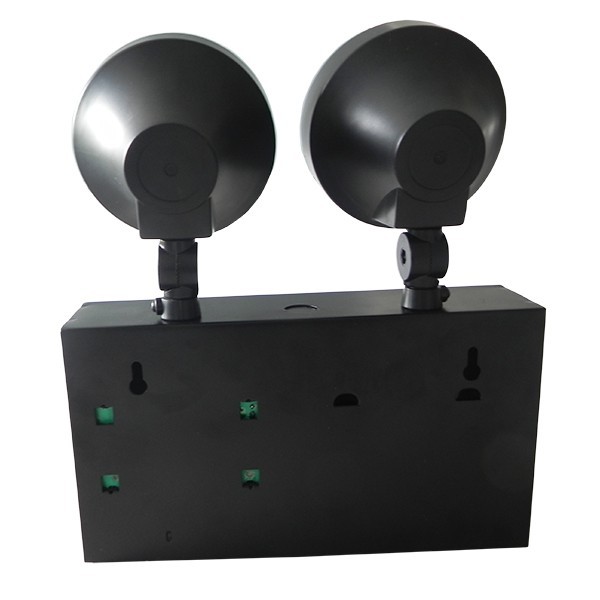

Led Chargeable Twin Spot Emergency Light TL030A
Defination
Non-maintained fluorescent emergency light after AC Power blackout.
Function
Over 3hrs emergency lighting after sudden blackout
Application
For High residential buildings & Commercial buildings
- Shoping Malls/Super Markets
- Office Buildings
- Domintaries/Teaching Buildings
- Apartments/ Hotels
- Govenment Buildings
Installation
Wall hanging
Features & Advantages
Test button for easy regular check
Rotary Twin Lighting Heads
Energy Saving Design
Long Emergency Time
CE & RoHs Standards
3 years warranty
Customization available
Parameters
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×15 pcs DIP white LED |
Battery | Nickel-Cadmium Battery 3.6V/1.6AH |
Indicator | Red LED Indicates Power On |
Duration Time | More than 3 hours |
Construction | Electro-Galvanized Steel Casing of High Reflectance Finished with CorrosionResistant Epoxy Spray Coating; and with PS Diffuser; |
IP Rate | IP20 |
Installation | Wall Surface Mounted |
Weight | 1.50 kg |
Working Temperature | -10ºC to 55ºC |
Size | 272mm*80mm*300mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Package Information
Package | 1 Set in 1 Inner Box, 8 Sets in 1 Outer Carton |
Outer Carton Size | 600mm*470mm*345mm |
Inner Box Size | 290*115*315mm |
Gross Weight | 15.54 kg |
Net Weight | 12.65 kg |
Detailed photos
- Standard Export Package
- 1 set in 1 Innder Box
12 sets in Baster Carton
- Master Carton size: 57*29*33.5 CM
2. N.W.: 11.4KG
G.W.: 13KG
Customization Services
Duration time can be customized
Indication Lamp: red or green optional
Battery can be choosed
After sales services
warranty: 3 years
- Establisehd in 2008
- Located in Hangzhou, China
- Main Products
- Emergency Lights
- Exit Signs
- their accessaries
- 19th Guangzhou International Lighting Exhibition
- 115th Canton Fair 2014 Spring
- Russia Exhibition 2013 Winter
5. Cerficates
- CE & Rohs
- SGS Factory
6. Equipments
- Intergrating Spehres: for brightness measuring
- Wave Soldering Machine: for PCB soldering
- Aging Test Board:for sound products selecting
- Constant Temperature Humidity Chamber: products testing in environment condition
