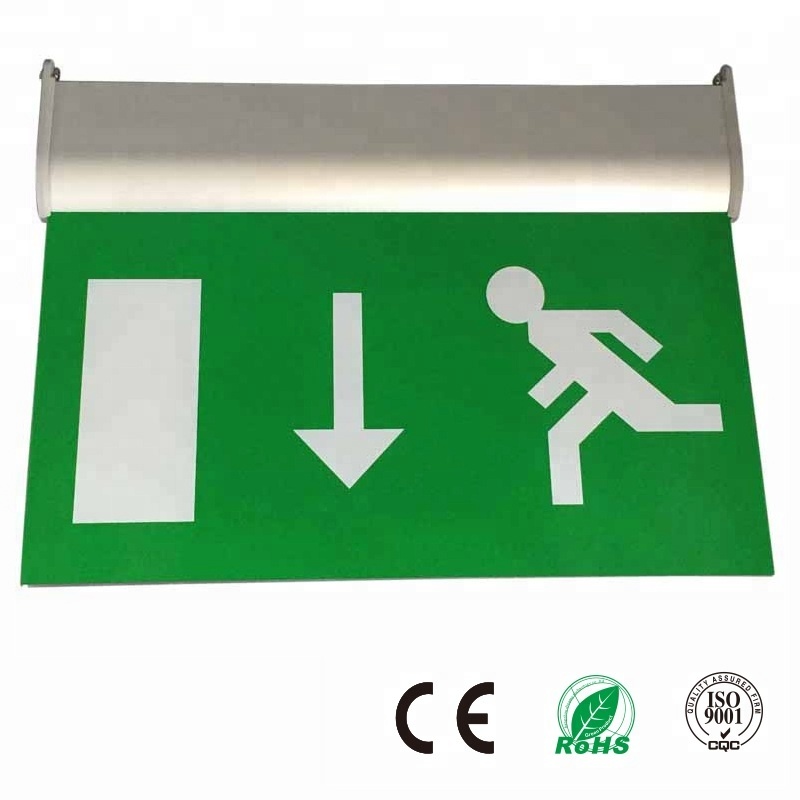

Double Sided Legend Pendant LED Exit Sign
DSL010AM
Defination and Function
This exit sign is a device installed in a public facility( such as a building, aircraft or boat) denoting the location of closest emergency exit in case of fire or other emergency.
Application
High occupancy residential buildings and commercial buildings or places,including
- Dormitories
- Teaching buildings
- Govenment buildings
- Office buildings
- Shopping malls
- Super market
- Aircraft
- Boat
Features
Parameters
Operation | Maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 10 pcs SMD white LED |
Battery | Nickel-Cadmium Battery 3.6V/0.3Ah |
Indicator | Green LED Indicates Charging |
Duration Time | More than 3 hours |
Construction | Aluminum Material End Cap, Acrylic Plate |
IP Rate | IP20 |
Installation | Ceiling Surface Suspended |
Weight | 0.76kg |
Working Temperature | -10ºC to 55ºC |
Size | 308mm*205m×30mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Similar Products
LED Exit Signs
Double Sided Legend LED Exit Sign: DSL007BM
High brightness LED Emergency Light: SL030AM
Super brightness LED Emergency Light: SL060DM
Fluorescent Exit Signs
High brightness fluorescent Emergency Light: SF108AM
Detailed Pictures
Standard Export Package
1. 1pc in 1 inner box
10pcs in 1 outer carton
2. Outer Carton Size: 45*43*25CM
3. G.W.: 17KG
4. N.W.: 16KG
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008
2. Located in Hangzhou, China
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6. What can be customized?
1)Battery
2)Package
3)Emergency time. Usually, it is 3 hours. Can be customized to 1.5h, 2h, 4.5h and so on.
4)Other requirements from customers.
