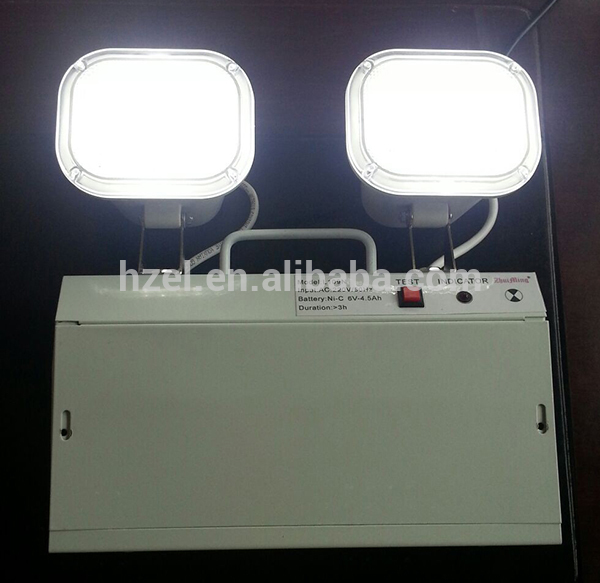

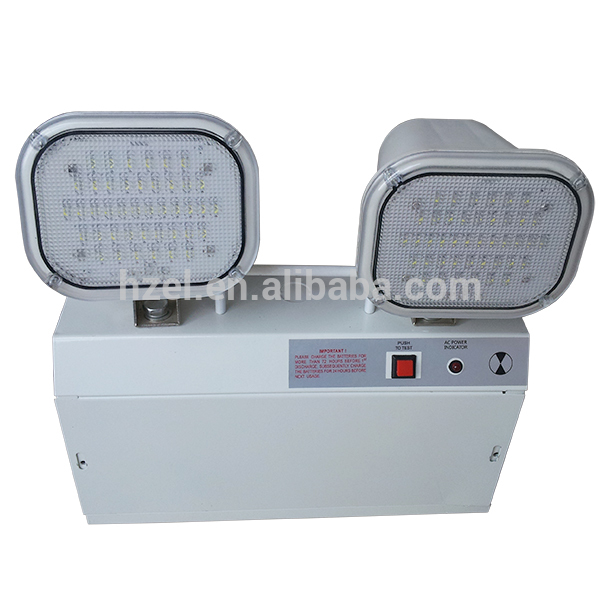

220V Battery Backup Led Double Spots Emergency Light
TL060CN
Defination
This Twin-spot Emergency Light is designed for hallway, stairway lighting when a building experiences power outage.
Function
Automatically light once the goes out.
Application
High occupancy residential buildings and commercial buildings,including
- Dormitories
- Teaching buildings
- Govenment buildings
- Office buildings
- Shopping malls
- Super market
Installation
Position: installed in the hallways, stairways of the buildings
Steps:
1. Test. Connect to the mains power, charging the device.Press the test button, the device lights at once. Go to next step.
2. Installation. Open the casing, fixed the device onto the wall with screws.
3. Connect to the mains power. Shut the casing.
4. Installtion finished.
Features
ü High luminous efficacy
ü Wide-coverage lighting
ü High water-proof level IP65
ü Totally rotary two heads
ü Energy saving design
ü Long Emergency Time
Technical Data
Operation: Non-Maintained
Input voltage: 110v-127V, or 220V-240V
Charging Current: 120mA(Normal)
Lamp Type: 2*42 smd white LED
Battery Capacity: Ni-Cad, 6V/4Ah
Indicator: Red LED indicates charging, greel LED for power on
Emergency Time: >3h
Construction: Steel Casing, PC diffuser
Water-proof grade: IP20
Installation: wall hang
Weight: 2.2kg
Working Temerature: -10°C to 60°C
Product Size: 272*90*275 mm
Customize Option: Battery, emergency time, package
Packing information
Package: 1 Set in 1 Inner Carton,5 Sets in 1 Master Carton
Inner Box Size: 29*11*33cm
Master Carton Size: 68*33*36cm
G.W: 14KG
N.W.:11KG
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 2015 Autumn Hong Kong International Lighting Fair
- 2015 Guangzhou International Lighting Fair
- 2015 Spring Hong Kong International Lighting Fair
- Hong Kong International Lighting Fair 2014 (Autumn Edition)
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
2015 Guangzhou International Lighting Fair
2015 Spring Hong Kong International Lighting Fair
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6. What can be customized?
1)Battery
2)Package
3)Emergency time. Usually, it is 3 hours. Can be customized to 1.5h, 2h, 4.5h and so on.
4)Other requirements from customers.
