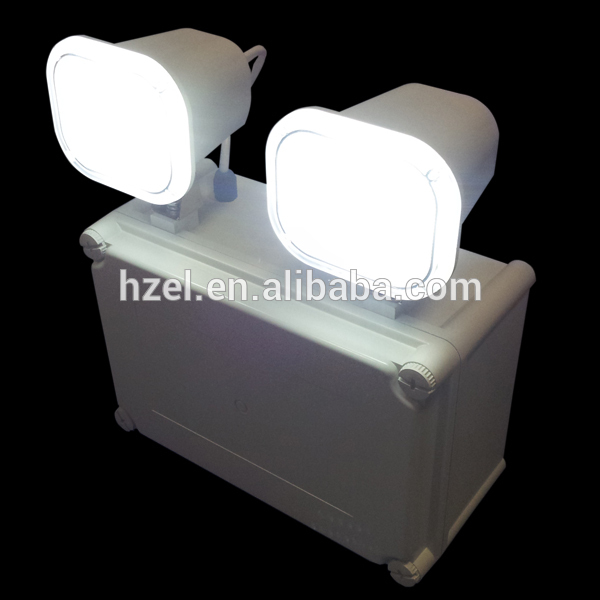

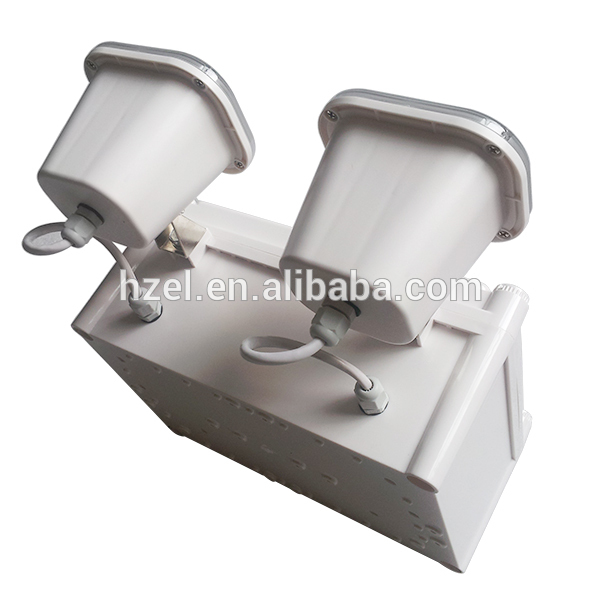

IP65 2X5W SMD Led Industrial Twin Spot Emergency Light TL084A
Overview
The Waterproof Emergency Light uses a hermetically sealed fiberglass housing that is designed for outdoor applications where moisture and rain are present. Damaging elements are sealed out, protecting the 6-volt 4.5 amp battery that provides 3 hours of emergency power to the LED lamp heads. This fixture features two bright LED lamps that can be adjusted to meet unique lighting applications.
The durable fire-retadant housing ensures durability, reliability, and corrosion resistance.
Function
This IP65 Rechargeable LED Twin-spot Emergency Lamp provides over 3hrs emergency lighting after AC power goes out.
Application
High occupancy residential buildings and commercial buildings, including
--Dormitories/Teaching buildings
--Govenment buildings/Office buildings
--Shopping malls/Super market
--Hotels/Appartments
--Museum/Theater/Entertainment Clubs
--Underground stores/ Underground Garages
Features
CE certified
IP65 certified
IES File available
Safe transport certified
High water-proof IP65 Design: hermetically sealed PC housing, Sealing washer, Screws
High Brightess: max up to 840LM
Output Power: up to 8.4W
Fire Retardant Material: Fire-retardant PC Casing & Diffuser
Long Emergency Time:> 3 hrs
Total Rotary Twin Heads: UP↔Down, Righ↔Left
Energey Saving Design: for same brightness but only 1/3 power consumption of fluorescent lamps
Customization: Package, Emergency Time, Brightness
Parameters
Technical Parameters | |
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×42 pcs SMD 3014 white LED |
Battery | Nickel-Cadmium Battery 6V/4.5Ah |
Indicator | Red LED Indicates Charging while Green LED indicates for Power On |
Duration Time | More than 3 hours |
Construction | PC Casing and PC Diffuser |
IP Rate | IP65 |
Installation | Wall Surface Mounted |
Weight | 2.15kg |
Working Temperature | -10ºC to 60ºC |
Size | 280mm*133mm*320mm,Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Product Shows
Product Certificates
CE/RoHS
IP65
Safe Transport
Package
- 1 Piece in 1 Inner Carton ,5 Pieces in 1 Master Carton
- Master Carton Size: 68×33×36mm
- G.W:15.54KG
- N.W:12.65KG
Delivery Time
within 20 working days after payment for MOQ
1. Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008, Hangzhou, China
2. Factory Scale
Workshop occupies 1100m2 and is with 4 production lines
Warehouse occupies 1100m2
RD Team: 7 experienced engineers
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Company Certificates
- SGS Factory
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
