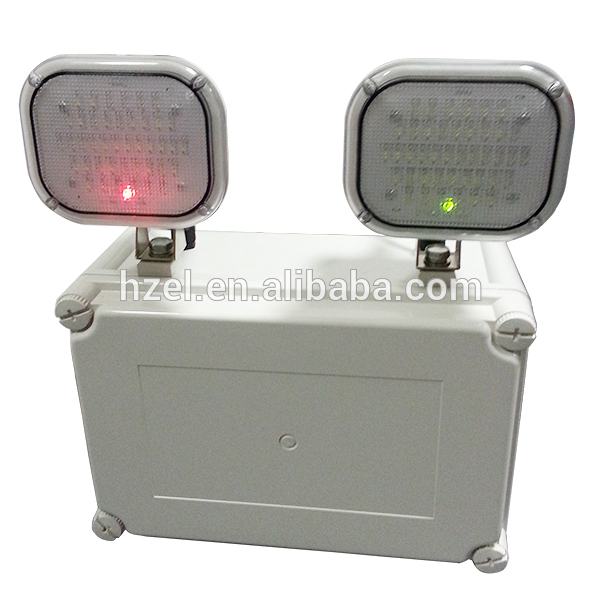

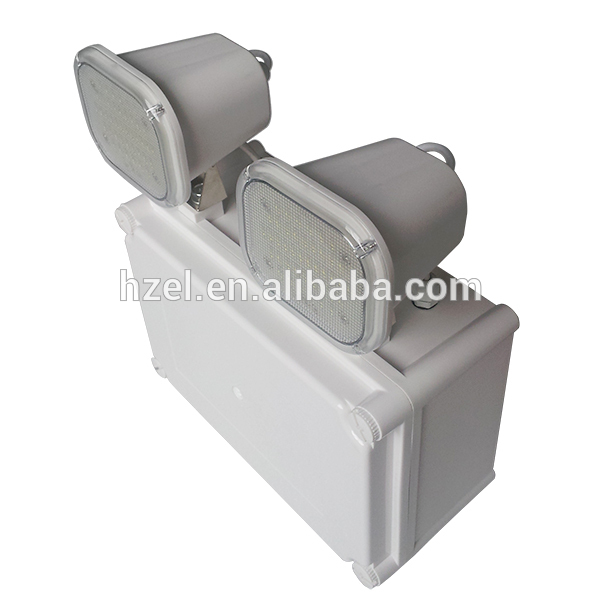

IP65 2X5W SMD Led Automatic Emergency Twin Spot Light TL084AN
Function
Automatically lights when a building experiences a sudden AC power failure.
Application
High residential buildings & Commercial buildings
- Dormitories/Teaching Buildings
- Office Buildings
- Government Buildings
- Apartment Buildings/Hotels
- Shopping Malls/Super Markets
- Banks
- Hospitals
Advantages & Features
-Easy installation
-High Water-proof Level
-High Luminous Flux & Efficacy
-International standard size
-Over 3 hours emergency time
-Energy Saving
-CE & RoHs, IP65 Standards
-Customization available
-Wide range application
-Rotary Twin Lighting Heads
-Long Emergency Time
Parameters
Technical Parameters | |
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×42 pcs SMD 3014 white LED |
Battery | Nickel-Cadmium Battery 6V/4.5Ah |
Indicator | Red LED Indicates Charging while Green LED indicates for Power On |
Duration Time | More than 3 hours |
Construction | PC Casing and PC Diffuser |
IP Rate | IP65 |
Installation | Wall Surface Mounted |
Weight | 2.15kg |
Working Temperature | -10ºC to 55ºC |
Size | 280mm*133mm*320mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
