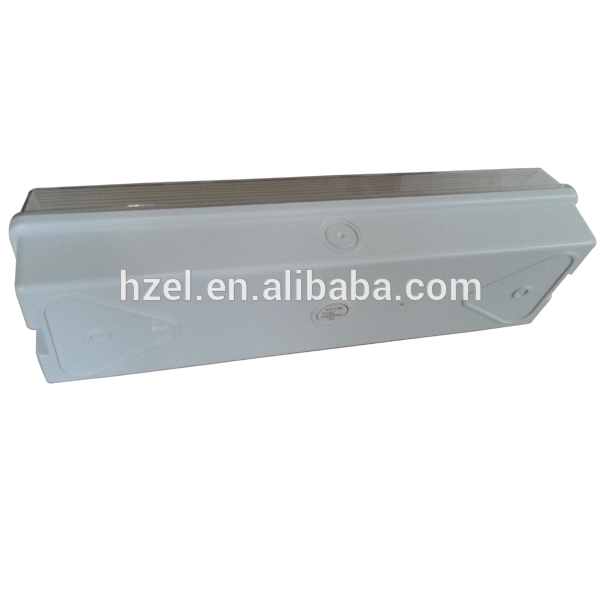

IP65 SMD Led Rechargeable Emergency Light Bulkhead
Overview
The LED Wet Location Emergency Light is constructed from high quality polycarbonate housing that protects internal electrical components from moisture, rain, and snow. The internal components and battery are completely sealed off from adverse weather to ensure reliable emergency illumination. This low profile fixture also features an advanced reflector to create a large area of illumination while keeping the fixture"s footprint a minimal size. The clear polycarbonate cover is durable and UV stabilized to reduce yellowing while providing maximum light output. The IP65 rating ensures reliability even under the harshest conditions.
A powerful nickel-cadmium battery backup system provides at least 180 minutes of emergency light when AC power has been lost. The LED illumination used in this fixture is efficient. This illumination technology consumes power less than 1.5W. A nickel metal hydride battery is available for advanced power options.
Function
Over 3hrs emergency lighting after sudden blackout
Application
For shoping malls, office buildings,goverment buildings, teaching buildings, Domintaries and so on.
Parameters
Operation | Maintained or Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 15 pcs DIP white LED |
Battery | Nickel-Cadmium Battery 3.6V 0.6Ah |
Indicator | Green LED Indicates Charging |
Duration Time | More than 3 hours |
Construction | Fire-Retardant ABS Casing and Plate; PC Diffuser |
IP Rate | IP65 |
Installation | Wall Surface Mounted, Ceiling Surface Mounted |
Weight | 0.683kg |
Working Temperature | -10ºC to 55ºC |
Size | 345mm*107mm*76mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Features
- Polycarbonate housing protects electrical components from water and moisture
- Advanced light reflectors allow maximum light distribution
- Push button testing for easy battery maintenance
- IP65 rated for wet locations
- Easy and flexible installation
- Exeed the bright visiility requirements
- 3 years warranty
Similar Products
Same shape products
3 hours high water-proof high brightness Emergency LED Light: EL015E
3 hours high water-proof Emergency Fluorescent Light: EF108AN
Same serious products
3 hours Emergency LED Light: EL015B
3 hours Emergency LED Light: EL015C
3 hours Emergency LED Light: EL015D
Detailed pictures
- Standard Export Package
- 1 set in 1 Innder Box
10 sets in Baster Carton
- Master Carton size: 45*37*26CM
2. N.W.: 10KG
G.W.: 13KG
1. Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008
2. Located in Hangzhou, China
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 115th Canton Fair 2014 Spring
- Russian Exhibition 2013 Winter
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 5000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes, both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6.What can be customized?
Battery
Package
Emergency time.
Other requirements from cutomers. Of course, the engineers will evaluate first.
