CE Certification Slim Style Emergency Light Ceiling Mounted Self Testing
Function
Automatically lights when a building experiences a sudden AC power failure.
Application and Place postion
Hallway, stairs of High residential buildings & Commercial buildings
- Dormitories/Teaching Buildings
- Office Buildings
- Government Buildings
- Apartment Buildings/Hotels
- Shopping Malls/Super Markets
- Banks
- Hospitals
Advantages & Features
-Easy installation
-Lightweight and small size
-Exquisite Body
-High Water-proof Level
-High Luminous Flux & Efficacy
-Test button for easy regular check
-International standard size
-Over 3 hours emergency time
-Easy wall-hanging installation/Flexible installation
-Energy Saving
-CE & RoHs Standards
-Customization available
-Wide range application
-Rotary Twin Lighting Heads
-Long Emergency Time
Parameters
Technical Parameters | |
Operation | Maintained/ Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 6 pcs SMD 5730 white LED |
Battery | Nickel-Cadmium Battery 3.6V/1.8AH |
Indicator | Green LED Indicates Power On |
Duration Time | More than 3 hours |
Construction | PC Casing and PC Diffuser |
IP Rate | IP20 |
Installation | Wall Surface Mounted And Ceiling Recessed |
Weight | 0.76 kg |
Working Temperature | -10ºC to 55ºC |
Size | 228mm*145mm*165mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Similar Products
Same series products
LED Twin-spot Emergency Light with 2*10pcs SMD white LED:TL020DN
LED Twin-spot Emergency Light with 2*20pcs SMD white LED:TL040AN
LED Twin-spot Emergency Light with 2*30pcs SMD white LED:TL060AN
Same shape products
LED Twin-spot Emergency Light with 2*15pcs DIP white LED: TL030BN
LED Twin-spot Emergency Light with 2*30pcs SMD white LED:TL060AN

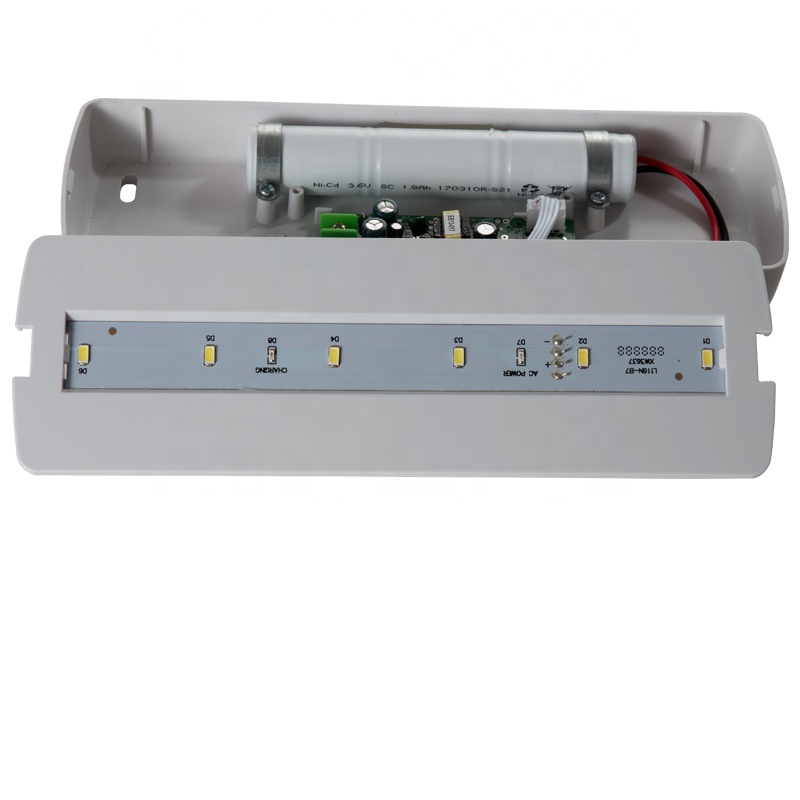

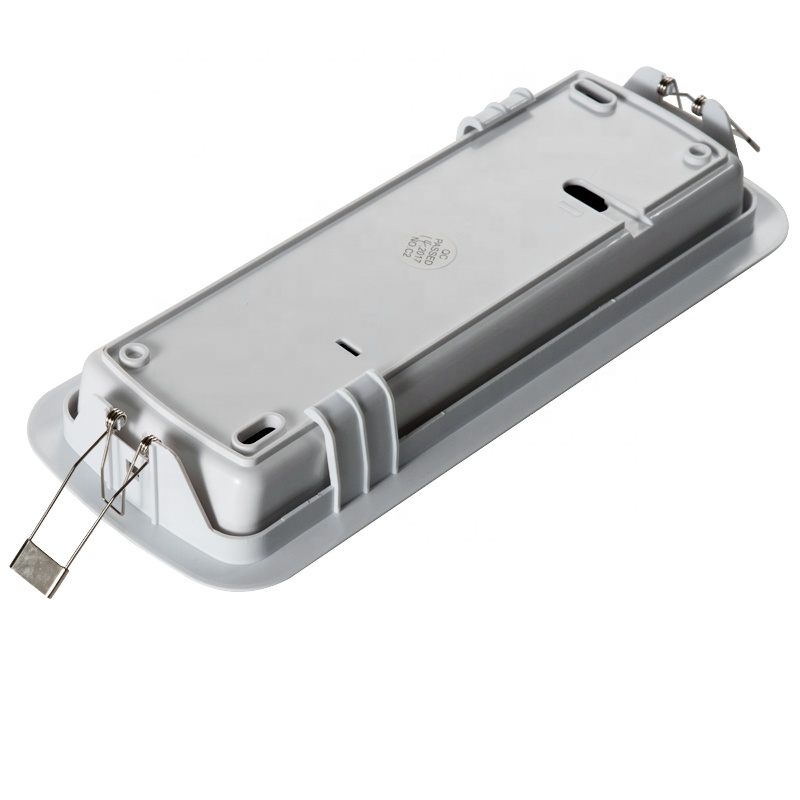

Detailed pictures
1. Standard Export Packing
| Package | 1 set in 1 Inner Box, 50sets in Outer Carton |
| Outer Carton Size | 49*27.5*56.5 cm |
| Inner Box Size | 26.5*10.5*4.5cm |
| Gross Weight | 22 kg |
| Net Weight | 20 kg |
2. Customized Packing
MOQ: 300PCS
1. Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1100m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
4. Exhibitions & Fairs
- 19th Guangzhou International Lighting Exhibitions
- 119th Canton Fair 2018 Spring
- Germany Exhibition 2018 Spring
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
