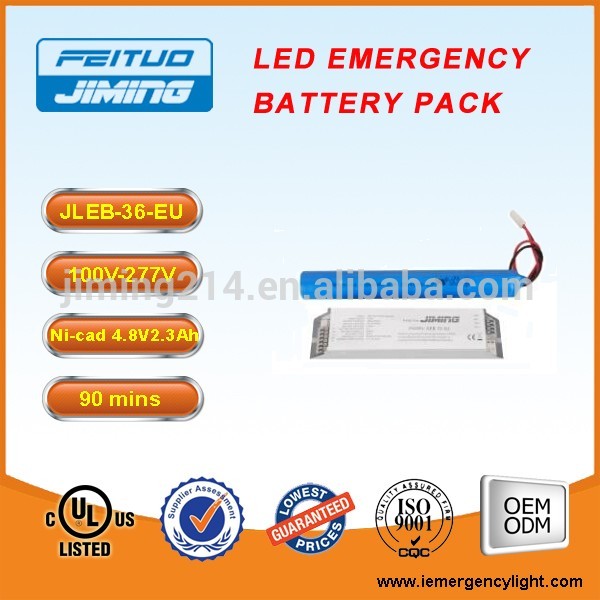

JLEB-36-EU 36WUL&cUL Listed LED Emergency Inverter for LED lighting fixture 36W CHINA TOP 1 Emergency Inverter Factory -iemergencylight.com
We are the Best, not just better!
JLEB-36-EU 36WUL&cUL Listed LED Emergency Inverter for LED lighting fixture 36W CHINA TOP 1 Emergency Inverter Factory -iemergencylight.com
JLEB-36-EU 36WUL&cUL Listed LED Emergency Inverter for LED lighting fixture 36W CHINA TOP 1 Emergency Inverter Factory -iemergencylight.com
| Product Name: | LED Emergency Battery Pack for LED Model-JLEB series(36W, External battery pack) | Packing Information | ||||
| Model No.: | JLEB-36-EU | Packing: | White box | |||
| Main Specification: | 3-40V DC output, <200mA, 4.8V 2300mAh Ni-Cad battery, 90mins, 36W, 15% Lumens output | Carton: | L(cm) | W(cm) | H(cm) | |
| Carton Size: | 40 | 25 | 16.5 | |||
| Product Size: | 168X37X28mm | Carton CBM: | 0.017M3 | |||
| MOQ: | 1000PCS | Q"TY/INNER BOX: | PCS | |||
| Lead Time: | 35 days | Q"TY/CTN: | 6PCS | |||
| Sample Delivery Time: | 3~10 days | Gross Weight: | 8.5KGS | |||
| Remarks: | Net Weight: | 7.5KGS | ||||
| Container Loading Q"TY(PCS): | 1*20" | 1*40" | 1*40" HQ | |||
| 9706 | 20294 | 23647 | ||||
| Model JLEB-36-EU Features: LED Emergency Battery Pack for LED Model-JLEB series(36W, External battery pack) JIMING LED emergency battery pack will operate LED lighting fixtures between 3-40VDC including LED panel, LED down light, LED ceiling light and the other LED fixtures with external AC drivers not exceeding 44W(JLEB-44 series) or 72W(JLEB-72 series). The LED lighting will be illuminated, at reduced output, for a minimum of 90 minutes. JIMING also provide a high lumen solution (JLEB-20-H) which can operate LED tube light, LED bulb and the other lighting fixtures need a high lumen output, not exceeding 20W. The LED lighting will be illuminated, at 100% output, for a minimum of 90 minutes. TECHNICAL DATA: Mode of Operation: Maintained Input Voltage: 100~277VAC 50/60HZ Input power: 2.8W Battery: 4.8V 2300mAh Nickel Cadmium Battery(External) Output voltage: 3-40VDC Output current: <200mA Lumen output: 15% Lamp used: 36W LED tubes or Down lights(Please Refer to Supplier) Operating Temperation: 0℃~40℃ Charger: Solid-state Electronics Provide High Reliability with Trickle Charge-Facility. Indication: Red LED Backup time: ≥90minutes Recharge time required: 24hous Protection: Low-Voltage Cut-Off to prevent Over-Discharge of Battery The JLEB series Emergency Ballasts for LED Model allow the same lighting fixture to be used for both normal and emergency operation. In the event of a power failure, the JLEB switches to the emergency mode and operates the LED tubes or Down lights for a minimum of 90 minutes. The unit with an external battery, charger and inverters IN A SINGLE PACKAGE. The JLEB can be mounted in the wireway or on the top of fixture. And UL, cUL certificate is pending. | ||||||
