emergency led driver for LED lighting fixture

Click on the image to view the original image

Product：	views：4emergency led driver for LED lighting fixture
Branch：	JIMING / FEITUO
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:53

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: JIMING / FEITUO

Model Number:: JLEB-36-US

Usage:: UL&cUL Listed LED Emergency Ballast Pack

Input Voltage::: 120/277VAC 60HZ

Certificate:: UL/cUL Approved

Lamp used::: LED fixtures with external AC drivers not exceeding 44W

Battery Specification:: 4.8V 2300mAh Nickel Cadmium Battery(Internal)

Charger::: Solid-state Electronics Provide High Reliability with Trickle Charge

Emergency backup time::: over 90 minutes

Operating Temperation::: 0℃~50℃

Warranty:: 2 Year

Style:: Electronic

Power Factor Compensation:: Active

Supply Ability

Supply Ability:: 80000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Color box or white box with poly bag
*Can be customerized packing design also.

Port: NINGBO

Lead Time:: Shipped in 45 days after payment

emergency led driver for LED lighting fixture

We are the best, not just better!

Product Description

emergency led driver for LED lighting fixture

Product Name:	LED Emergency Battery Pack for LED Model-JLEB series(36W, Internal battery pack)	Packing Information
Model No.:	JLEB-36-US	Packing:	White box
Main Specification:	3-40V DC output, <200mA, 4.8V 2300mAh Ni-Cad battery, 90mins, 36W, 15% Lumens output	Carton:	L(cm)	W(cm)	H(cm)
		Carton Size:	40	25	16.5
Product Size:	238X37.2X60mm	Carton CBM:	0.017M3
MOQ:	1000PCS	Q"TY/INNER BOX:	PCS
Lead Time:	35 days	Q"TY/CTN:	6PCS
Sample Delivery Time:	3~10 days	Gross Weight:	8.5KGS
Remarks:		Net Weight:	7.5KGS
		Container Loading Q"TY(PCS):	1*20"	1*40"	1*40" HQ
			9706	20294	23647

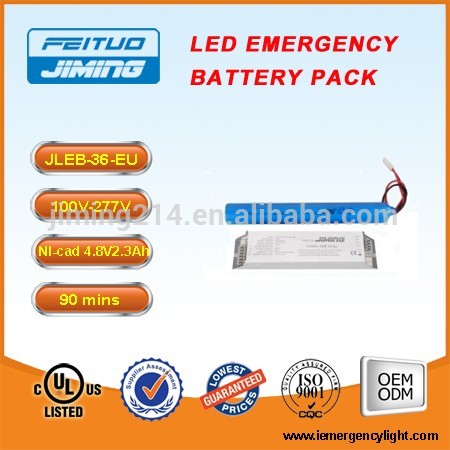

Model JLEB-36-US Features: LED Emergency Battery Pack for LED Model-JLEB series(36W, Internal battery pack) JIMING LED emergency battery pack will operate LED lighting fixtures between 3-40VDC including LED panel, LED down light, LED ceiling light and the other LED fixtures with external AC drivers not exceeding 44W(JLEB-44 series) or 72W(JLEB-72 series). The LED lighting will be illuminated, at reduced output, for a minimum of 90 minutes. JIMING also provide a high lumen solution (JLEB-20-H) which can operate LED tube light, LED bulb and the other lighting fixtures need a high lumen output, not exceeding 20W. The LED lighting will be illuminated, at 100% output, for a minimum of 90 minutes. TECHNICAL DATA: Mode of Operation: Maintained Input Voltage: 100~277VAC 50/60HZ Input power: 2.8W Battery: 4.8V 2300mAh Nickel Cadmium Battery(Internal) Output voltage: 3-40VDC Output current: <200mA Lumen output: 15% Lamp used: 36W LED tubes or Down lights(Please Refer to Supplier) Operating Temperation: 0℃~40℃ Charger: Solid-state Electronics Provide High Reliability with Trickle Charge-Facility. Indication: Red LED Backup time: ≥90minutes Recharge time required: 24hous Protection: Low-Voltage Cut-Off to prevent Over-Discharge of Battery The JLEB series Emergency Ballasts for LED Model allow the same lighting fixture to be used for both normal and emergency operation. In the event of a power failure, the JLEB switches to the emergency mode and operates the LED tubes or Down lights for a minimum of 90 minutes. The unit with an external battery, charger and inverters IN A SINGLE PACKAGE. The JLEB can be mounted in the wireway or on the top of fixture. And UL, cUL certificate is pending.
