Product Description
| Product Name: | Emergency Ballast-JEB series -500lumens | Packing Information | ||||
| Model No.: | JEB500 | Packing: | White box | |||
| Product Size: | Carton: | L(cm) | W(cm) | H(cm) | ||
| Product Net Weight: | Carton Size: | 30 | 23.3 | 16.5 | ||
| MOQ: | 1000PCS | Carton CBM: | 0.012M3 | |||
| Lead Time: | 30 days | Q"TY/INNER BOX: | PCS | |||
| Catalogue Page No.: | Q"TY/CTN: | 6PCS | ||||
| Sample Delivery Time: | 7 days | Gross Weight: | 5.3KGS | |||
| Remarks: | Net Weight: | 4.3KGS | ||||
| Container Loading Q"TY(PCS): | 1*20" | 1*40" | 1*40" HQ | |||
| 13750 | 28750 | 33500 | ||||

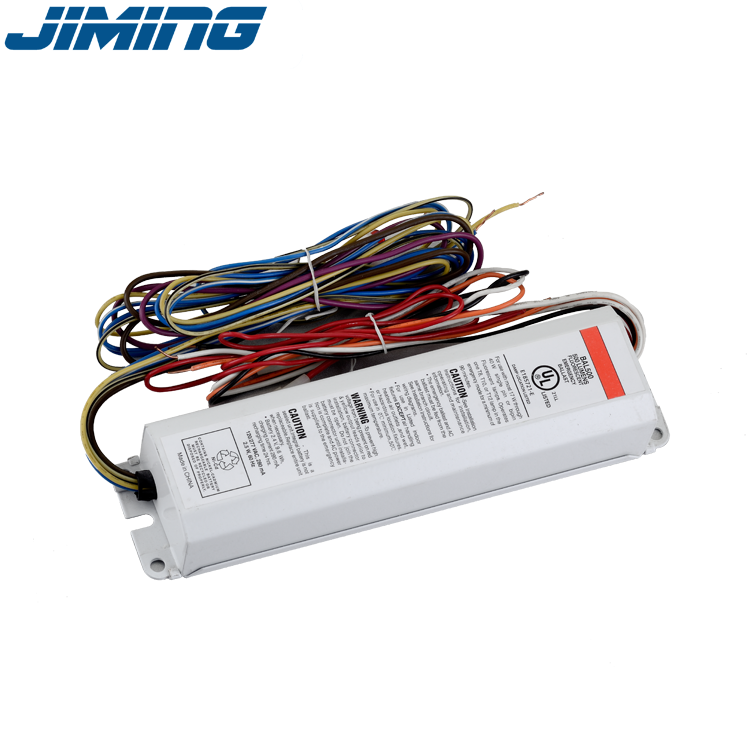

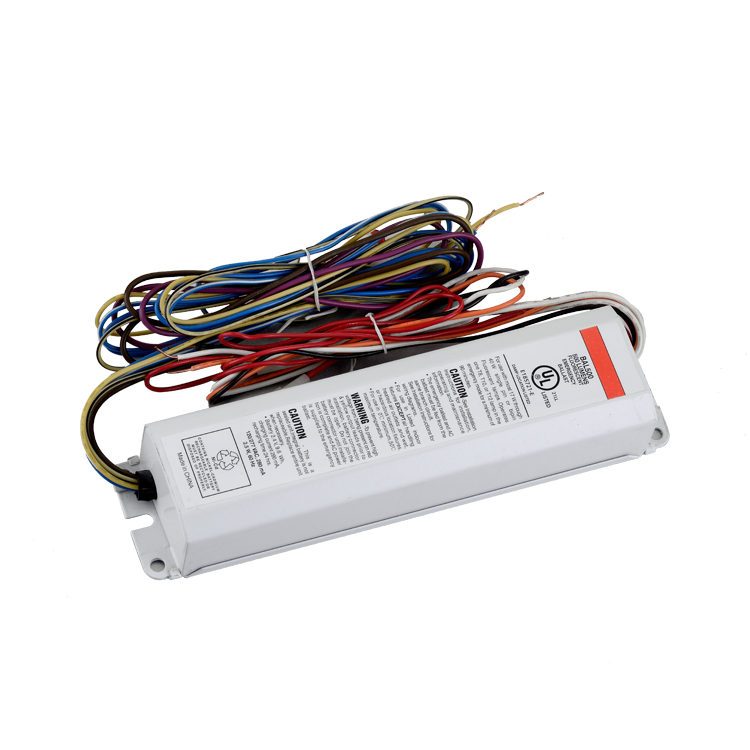

| Model JEB500 Features: Emergency Ballast-JEB series -500lumens Fluorescent emergency ballast with painted durable steel casing. Nickel-Cadmium battery, charger and inverter circuit contained. UL approved, Meets or exceeds all NEC and Life Safety Code emergency lighting requirements. Cold starts and operates specified lamp types, LED Charge indicator light and push-to-test switch. 120/277 VAC dual voltage operation, 90 minutes operation. TECHNICAL DATA: Mode of Operation: Maintained Input Voltage: 120/277VAC 60HZ Battery: 2.4V 4000mAh Nickel Cadmium Battery Lamp used: one 25W,32W,40W T8 Fluorescent lamp.(Please Refer to Supplier) Operating Temperation: 0℃~50℃ Charger: Solid-state Electronics Provide High Reliability with Trickle Charge-Facility. Indication: Red LED Backup time: ≥90minutes Compliance: UL, cUL Protection: Low-Voltage Cut-Off to prevent Over-Discharge of Battery The JEB series Emergency Ballasts allow the same lighting fixture to be used for both normal and emergency operation. In the event of a power failure, the JEB switches to the emergency mode and operates the fluorescent lamps or PLC tubes for a minimum of 90 minutes. The unit contains a battery, charger and inverters IN A SINGLE PACKAGE. The EBAL can be mounted in the wireway or on the top of fixture. And is UL, cUL approval. | ||||||
