Product Description

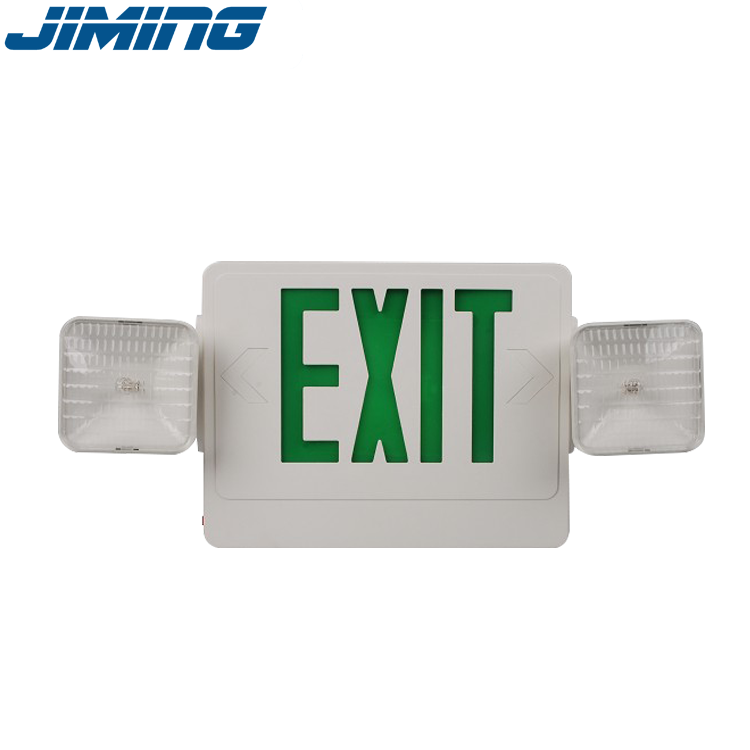

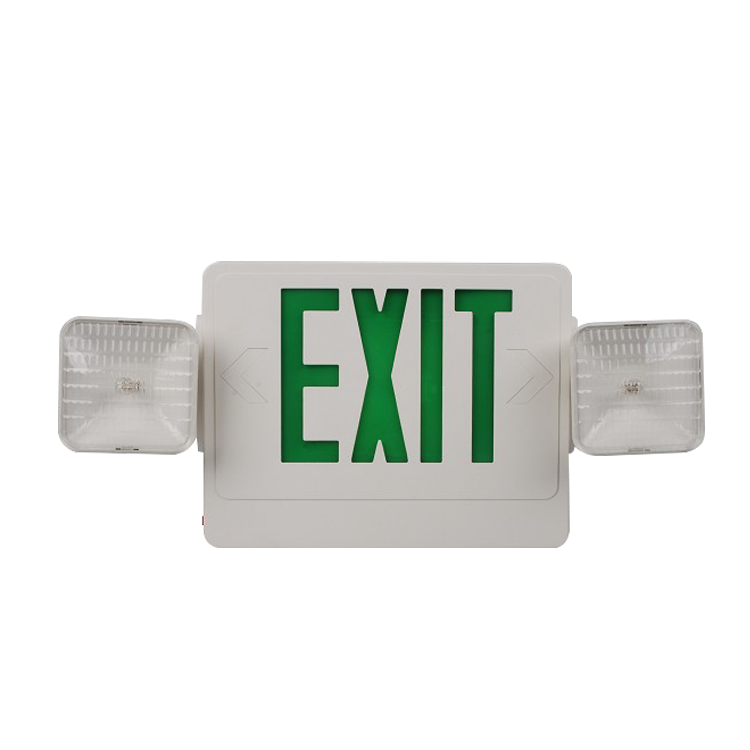

| Product Name: | Emergency Lighting Combo Exit Sign Model JEC2GW with Twin Heads (Green Letters) | Packing Information | ||||
| Model No.: | JEC2GW | Packing: | White box | |||
| Product Size: | 33-64*25.8*6.3cm | Carton: | L(cm) | W(cm) | H(cm) | |
| Product Net Weight: | 2.8kgs | Carton Size: | 61 | 56 | 40 | |
| MOQ: | 1000PCS | Carton CBM: | 0.137M3 | |||
| Lead Time: | 30 days | Q"TY/INNER BOX: | PCS | |||
| Catalogue Page No.: | Q"TY/CTN: | 6PCS | ||||
| Sample Delivery Time: | 7 days | Gross Weight: | 24KGS | |||
| Remarks: | Net Weight: | 23KGS | ||||
| Container Loading Q"TY(PCS): | 1*20" | 1*40" | 1*40" HQ | |||
| 1204 | 2518 | 2934 | ||||
| Model JEC2GW Features: Emergency Lighting Combo Exit Sign Model JEC2GW with Twin Heads (Green Letters) 2x6V5.4W T15 wedge base incandescent lamp Injection-moulded thermoplastic ABS housing UL94V-0 flame rating, fire-retardant, 120/277 VAC dual voltage operation, Letter 6"height with 3/4"stroke, Optional red or green letters (Ordering code: JEC2GW) Single or double face configuration, LED indicator light and push button test switch, Sealed lead acid battery(6V4.5AH) delivers more than 90 minutes capacity on emergency mode, Low voltage battery disconnection-preventing deep discharge damage to the battery. Universal mounting plate with EZ quick connect for rapid installation. TECHNICAL DATA: Mode of Operation: Maintained Input Voltage: 120/277VAC 60HZ Battery: 6V4.5AH Sealed lead acid battery Suitable damp location Operating Temperation: 0℃~40℃ Indication: Red LED Backup time: ≥90minutes Compliance: UL, cUL Protection: Low-Voltage Cut-Off to prevent Over-Discharge of Battery Option: Remote capability support total 9.2W output (Ordering code: JEC2RWRC) | ||||||
