Factory price Manual Railway Gasoline Internal combustion wrench

Click on the image to view the original image

Product：	views：8Factory price Manual Railway Gasoline Internal combustion wrench
Branch：	Hengwang
Type：	Tie Plates
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:20

Product Details

Overview

Quick Details

Type:: Tie Plates

Material:: Steel

Dimensions (L x W x H) (mm):: 1300*510*760(mm)

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Model Number:: NLB600

Certificate:: ISO

The gasoline engine type:: Honda

Name:: Railway Gasoline Wrench

Standard:: DIN17221

Gasoline engine power rating:: 4.5KW

Tightening torque adjustable:: 80-170 (N, m)

Maximum unscrew torque:: > 600 n, m

Application:: Rail Maintenance

Processing:: Casting

Color:: Clients'demend

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month Railway Gasoline Wrench

Packaging & Delivery

Packaging Details: Railway Gasoline Wrench

Port: shanghai qingdao dalian shenzhenningbo

Lead Time:: within3 daysafterreceive your payment

Product Description

Factory price Manual Railway GasolineInternal combustion wrench

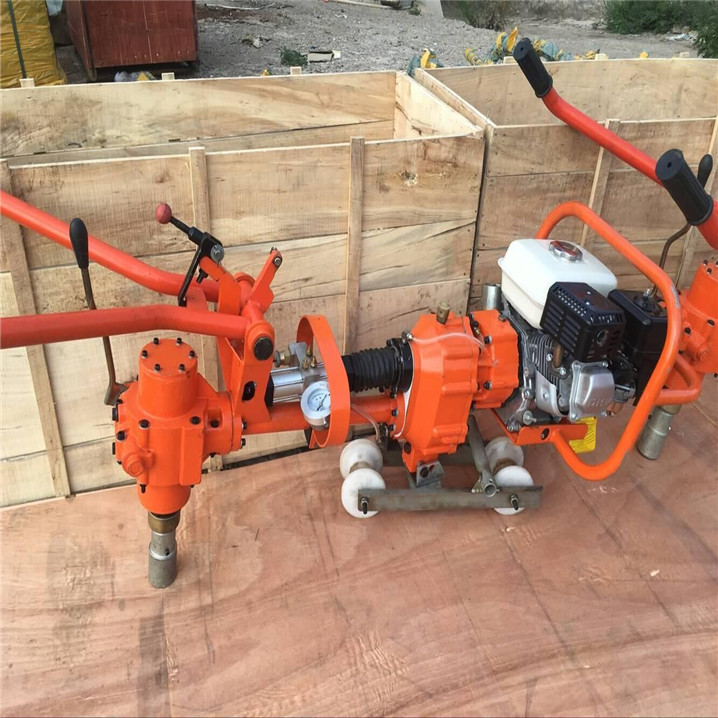

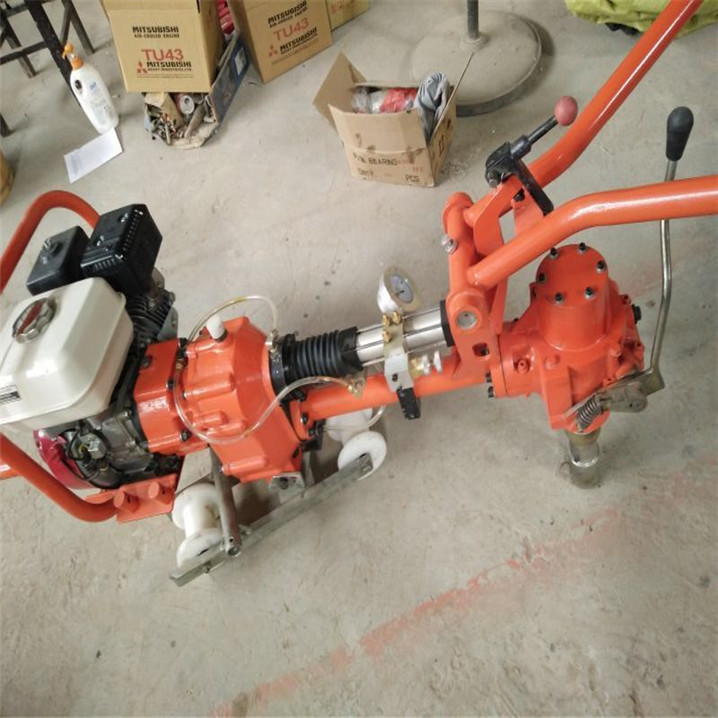

NLB-600 internal combustion power wrench is suitable for loosening & fastening the tie bolt & nut of railway track. Its petrol engine adopts wet clutch, which is easy to start. Its gear box adopts thin oil lubrication, which increases service life. It adopts static torque instead of impacting torque to allow the fasteners remain with less pressure error after operation. Its double sockets can operate at the same time with the reversal torque being more than 600N.m. It can be used to loosen & fasten various rust-eaten bolt & nut with high working efficiency. It possesses features of reversing flexibility, integrated operation and simple manipulation. It is indispensable equipment used to deal with a large amount of multifarious bolt & nut loosening & fastening operation.

Gasoline engine output power 4.8 kW / 3600rpm
Output shaft speed and torque 130rpm 20~450N·m (stepless adjustment), 600 N·m (instantaneous)
Dimensions (length × width × height) 1775 × 525 × 690 (mm)
Weight host 88kg
Wrench support rod 4kg
Sleeve size for hex nuts for M22, M24, M27, M30
Average noise emission rate 85dB(A)

Factory price Manual Railway GasolineInternal combustion wrench

ProductDetails

Factory price Manual Railway GasolineInternal combustion wrench

Factory price Manual Railway GasolineInternal combustion wrench

Packing & Delivery

Factory price Manual Railway GasolineInternal combustion wrench

Packaging
Size	1775 × 525 × 690 (mm)
Weight	88kg
Packaging Details	The normal package is wooden box(Size: 1775 × 525 × 690 (mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
