200m bore hole portable rotary water well drill rig for sale

Click on the image to view the original image

Product：	views：6200m bore hole portable rotary water well drill rig for sale
Branch：	HW
Type：	Rotary Drilling Rig, Rotary Drilling Rig
Size：	80X60X40 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:20

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig, Rotary Drilling Rig

Power Type:: Diesel, Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: drilling rig

Dimension(L*W*H):: 2400*950*1400mm

Weight:: 2880kg

Certification:: BV,SGS, ISO CE

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Engineers available to service machinery overseas

Drilling diameter:: 75-300mm

drill rod caliber:: 50mm

spindle stroke:: 450mm

end hole caliber:: 75mm

Working air pressure:: 1.05-4.5MPa

MaximumDrilling depth:: 200M

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X60X40 cm

Single gross weight:: 68.0 kg

Package Type:: drilling rig Standard wooden case packing

Lead Time:

Quantity(Set)	1 - 5	>5
Est. Time(days)	3	To be negotiated

Product Description

Water well drilling rig

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc

Parameter

SPECIFICATION FOR HW-230 WATER WELL DRILLING RIG
Drilling depth	200M
Maximum open hole caliber	260mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75°
Max. Lifting capacity with single rope	960kg
Lifting speed with single rope	0.41, 0.82, 1.64 ,1.96,2.23 m/s
Steel wire rope diameter	9.3mm
Steel wire rope cubic measure	27m
Mud pump type	BW

Main Features

1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.

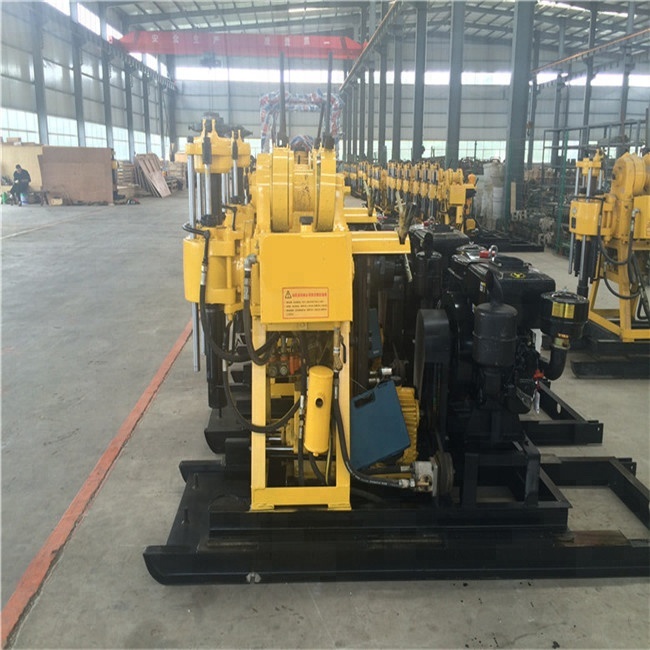

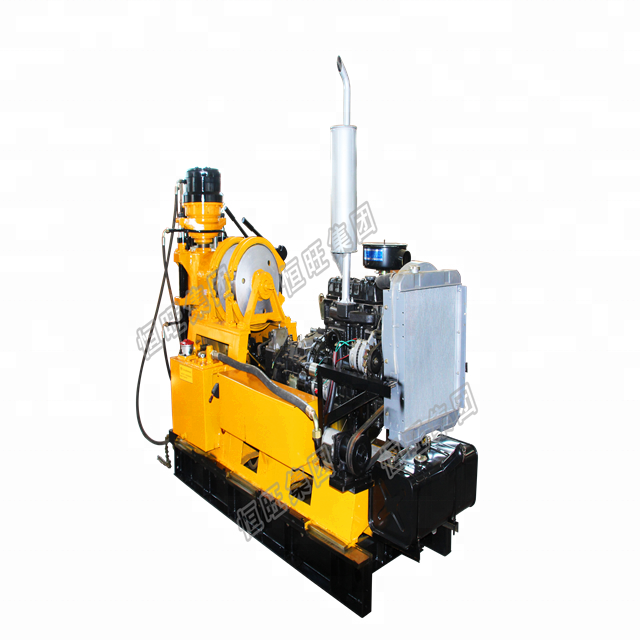

Detailed Images

Spare parts of drilling rig
