Home > Products > YQBJ-300 Hydraulic Track Lifting And Lining Machine,Rail Raising Machine,Railroad Lining Machine

YQBJ-300 Hydraulic Track Lifting And Lining Machine,Rail Raising Machine,Railroad Lining Machine

Click on the image to view the original image

Product：	views：9YQBJ-300 Hydraulic Track Lifting And Lining Machine,Rail Raising Machine,Railroad Lining Machine
Branch：	heng wang
Type：	Tie Plates
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:20

Product Details

Overview

Quick Details

Type:: Tie Plates

Material:: steel

Dimensions (L x W x H) (mm):: 1750 *850 *1210

Place of Origin:: Shandong, China

Brand Name:: heng wang

Model Number:: YQBJ-250

Product name:: YQBJ-300 Hydraulic Track Lifting And Lining Machine

Standard:: GB/T1222

Design Condition:: 60%RH

Model:: YQBJ-250

Power:: 9.5kw

Application:: Rail Maintenance

Name:: YQBJ-300 Hydraulic Track Lifting And Lining Machine

Keyword:: YQBJ-300 Hydraulic Track Lifting And Lining Machine

Weight:: 475kg

Color:: Clients'demend

Supply Ability

Supply Ability:: 1000 Set/Sets per Month YQBJ-300 Hydraulic Track Lifting And Lining Machine,Rail Raising

Packaging & Delivery

Packaging Details: wooden case

Port: shanghaiqingdao dalian shenzhen ningbo

Lead Time:

Quantity(Sets)	1 - 10	>10
Est. Time(days)	20	To be negotiated

Product Description

YQBJ-300 350N Hydraulic Track/Rail Lifting and Lining Machine for Sale Introduction

YQBJ-300 hydraulic track lifting and lining machine is specially used for the maintenance and repair of railway lines and the track bed. It applies to the track lifting and lining works of rails 43kg/m to 75kg/m, which can raise and adjust the track level. It is featured with high efficiency, simple operation, light weight, safety and reliability, a wide range of use etc.

YQBJ-300 350N Hydraulic Track/Rail Lifting and Lining Machine for Sale Parameter

Max.lifting force:	single cylinder 125KN
Max.lifting force:	double cylinder 125KNx2
The lifting cylinder stroke:	520mm±5mm
System working pressure:	16Mpa
Manual pump operating force	350N
Motor Engine Power	9.5KW
Motor rotate speed	3600rpm

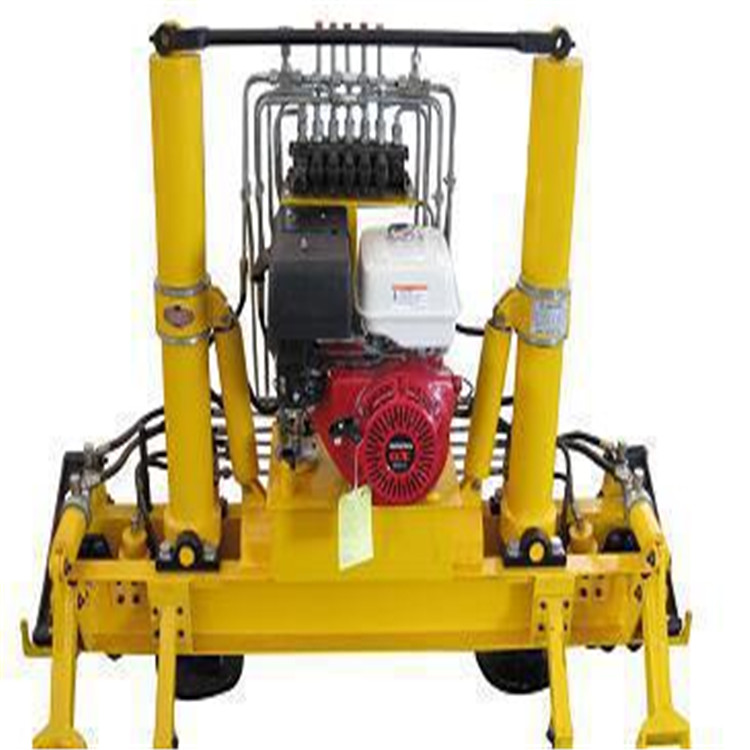

YQBJ-250 350N Hydraulic Track/Rail Lifting and Lining Machine for Sale Photos
