Hydraulic dry bulldozer mini crawler bulldozer for sale introduction
HD16 hydraulic transmission series bulldozers meet the European Ⅲ emission requirements. It is an indispensable machinery and equipment for construction and water conservancy construction such as national defense engineering, mine construction, urban and rural roads, etc. It is suitable for the operation of road, railway, mine, airport and other ground transportation, excavation, backfill earthwork and other bulk materials.
Hydraulic dry bulldozer mini crawler bulldozer for sale specification
| Main Parameters of HD16/22/32 | |||
| Model | HD16 | HD22 | HD32 |
| Engine model | Weichai WP10G178E355 | Cummins NT855-C280S10 | Cummins NTA855-C360S10 |
| Rated power(kw/rpm) | 131/1850 kw/rpm | 175/1800 | 235/2000 |
| Displacement(L) | 9.726 | 14.01 | 14.01 |
| Max.torque(N.m/rpm) | 830/1000-1200 | 1030/1250 | 1440/1400 |
| Operating weight(Kg) | 17000 | 23500 | 37200 |
| Dimension(no ripper)(mm) | 5140*3388*3032 | 5492*3726*3742 | 6885*4128*3645 |
| Min ground clearance(mm) | 405 | 405 | 500 |
| Ground pressure(MPa) | 0.067 | 0.072-0.077 | 0.105/0.09/0.078 |
| Track shoe width(mm) | 510 | 560/610/660 | 560/660/760 |
| Track gauge(mm) | 1880 | 2000 | 2140 |
| Dozing capacity( m3) | 4.55 | 6.4 | 10 |
| Blade width(mm) | 3390 | 3725 | 4130 |
| Blade height(mm) | 1150 | 1315 | 1590 |
| Maxdrop below ground(mm) | 540 | 540 | 560 |
| Pitch(mm) | 203.2 | 216 | 228 |
| Quantity of track link | 37 | 38 | 41 |
| Quantity of Carrier rollers | 4 | 4 | 4 |
| Quantity of Track rollers | 12 | 12 | 14 |
| Max pressure(MPa) | 14 | 14 | 14 |
| Discharge(L/min) | 213 | 262 | 355 |
| Max tractor force(KN) | 146 | 202 | 280 |
| Grade ability(°) | 30 | 30 | 30 |
| Forward(km/h) | 3.29/5.82/9.63 | 3.6/6.5/11.2 | 3.6/6.6/11.5 |
| Reverse(km/h) | 4.28/7.59/12.53 | 4.3/7.7/13.2 | 4.4/7.8/13.5 |

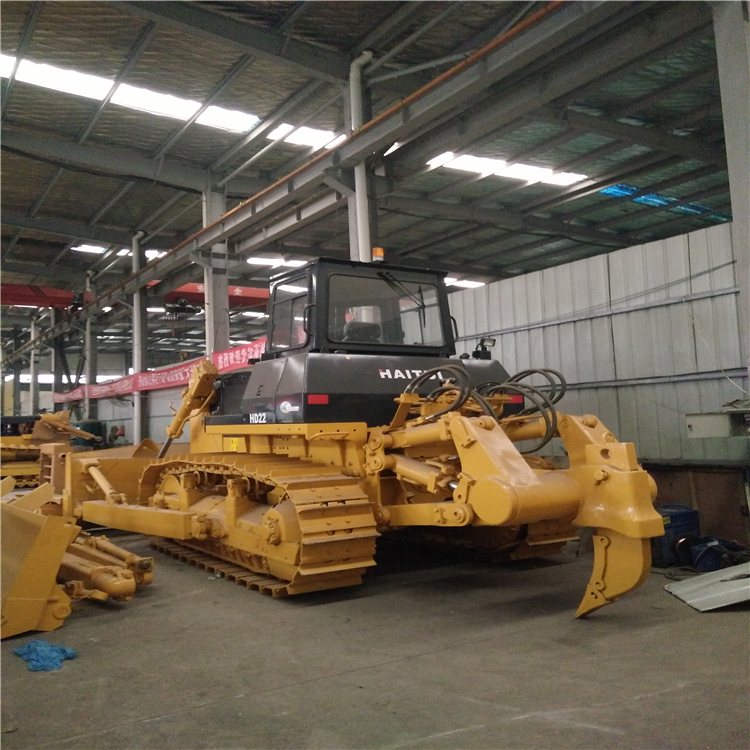

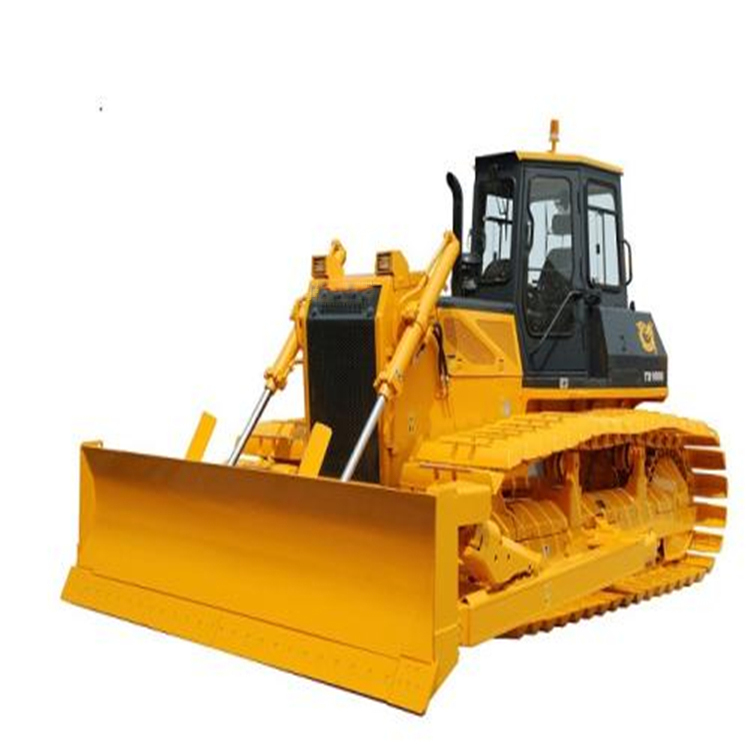

Hydraulic dry bulldozer mini crawler bulldozer for sale picture
HD16 Hydraulic Dozer,Mini Dozer For Sale
HD16 Hydraulic Dozer,Mini Dozer For Sale
HD16 Hydraulic Dozer,Mini Dozer For Sale
HD16 Hydraulic Dozer,Mini Dozer For Sale
