Home > Products > Mining Equipment YN27 Stone Rock Drilling Machine for sale
Mining Equipment YN27 Stone Rock Drilling Machine for sale
Click on the image to view the original image
Product： views：7Mining Equipment YN27 Stone Rock Drilling Machine for sale
Branch： rock drill
Type： rock drill
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:20
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
rock drill
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
rock drill
Usage:
coal mine,rock,road construction,
Voltage:
gasoline
Power(W):
gasoline rock drill
Dimension(L*W*H):
746 x 315 x 229 mm
Weight:
27kgs, 27KGrock drill
Certification:
SGS&ISO9001:2008
Warranty:
1 year
color:
yellow or other
Max Drilling Depth:
6mcombustion rock drill
Type of engine:
single cylinder
Rotating Speed of Drill Rod:
≥200r/min
dimension:
746 x 315 x 229 mm
Rotation speed of engine:
≥2450rpmrock drill
Packing size:
81*38*28CM
Drilling hole diameter:
28mm-42mm rock drill
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Week YN27C rock drill machine
Packaging & Delivery

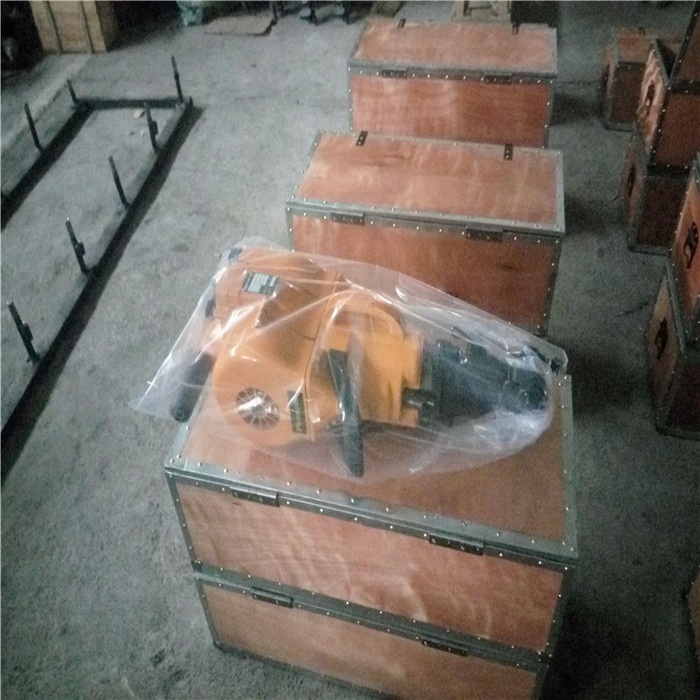

Packaging Details
Wooden box or according to your requirements
rock drill
combustion rock drill
Port
Qingdao Shanghai Tianjin
Lead Time:
Quantity(Sets)1 - 12 - 2 >2
Est. Time(days)23To be negotiated
YN27C product

1. Features


YN27C hand-held internal-combustion rock drill is a hand-rockdrilling tool which integrates small

gasoline engine,compressor and rock drill.

It can blow off the rock powder in the blast-hole by the compressing air generated from itself.

It is easy to be carried along,. It is stuited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.

2.Applications

With turning the swing arm to running-or-stop rotation plumbum, the machine can be converted into a breaker or a hammer, for breaking, digging, splitting or ramming. The machine is suited to build of bridge, road, power station, geological explortation etc.

Detailed Images
Overall dimension
746 x 315 x 229 mm
Type of engine
single cylinder,air cooled two strokes
Cylinder DiameterxStroke of piston
58 x 70mm
Rotating speed of engine
≥2450r/min
Drilling speed
≥ 250mm /min
Max. drilling depth
≥ 6m
Fuel consumption
≤0.12L /M
Tank capacity
≥ 1.14L
Clearance of Spark plug
0.5 -0.7mm
