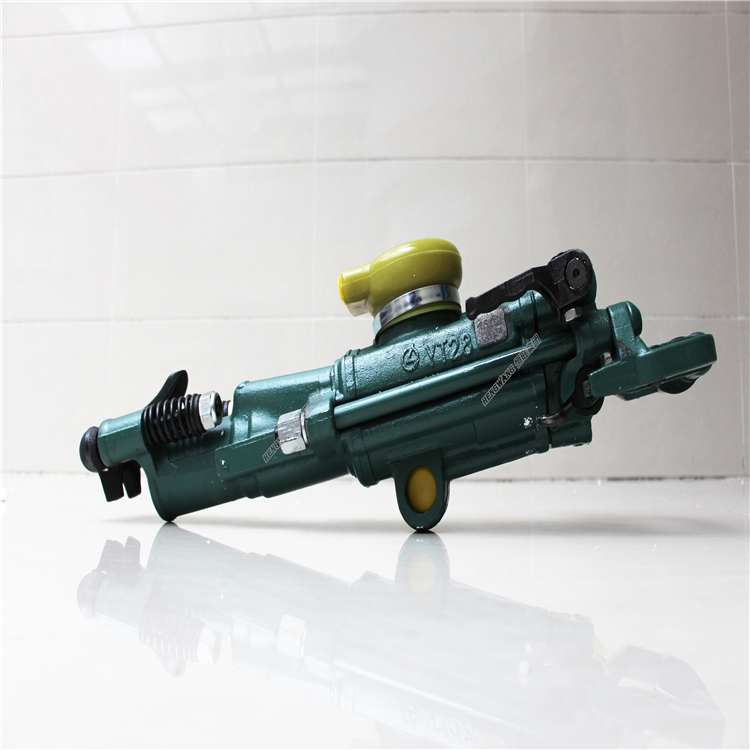

Yt28 Air Leg Rock Drill Pneumatic Rock Earth Drilling Machine With Compressor

Click on the image to view the original image

Product：	views：7Yt28 Air Leg Rock Drill Pneumatic Rock Earth Drilling Machine With Compressor
Branch：	hengwang
Type：	Air Drill
Size：	70X25X78 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:20

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: hengwang

Model Number:: YT28

Type:: Air Drill

Average Air Consumption:: 67L/S

Name:: Yt28Air Leg Rock Drill Pneumatic Rock Earth Drilling Machine

Application:: Pnaumatic

Air pressure:: 0.4-0.63Mpa

Air consumption:: 67L/S

Usage:: Concrete Breaking Tools

Product name:: Yt28Air Leg Rock Drill Pneumatic Rock Earth Drilling Machine

drill depth:: 5m

Color:: Customer's Requirement

Dia.of rock drill hole:: 34-42mm

Model Type:: Yt28Air Leg Rock Drill Pneumatic Rock Earth Drilling Machine

Packaging & Delivery

Selling Units:: Single item

Single package size:: 70X25X78 cm

Single gross weight:: 28.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 10	>10
Est. Time(days)	3	To be negotiated

Product Description

Advantages:

Safe and easy to operate

Best product quality control from cutting edge forging process to product completion

Durable with minimal maintenance

Low weight,reasonable structure

Handy use and little air consumption

Technical Parameter

YT28 air rock drill
Weight	28kg
Dia.of cylinder	60mm
Stroke	60mm
Rock drill frequency	37HZ
Strike power	70J
Working water pressure	0.35-0.63Mpa
Air consume of rock drill	67L/S
Dia.of rock drill hole	34-42mm
Depth of rock drill hole	5mm

Hand-hold Rock Drill Type

Model	Weight kg	Length mm	Cylinder Dia.×Stroke mm	Working pressure Mpa	Impact energy J	Impact frequency HZ	Air consumption I/s
YO15	15	550	58×45	0.4-0.63	≥21	≥32	≤20
YO18	18	550	58×45	0.4-0.63	≥22	≥32	≤20
Y19A	19	600	65×54	0.4-0.3-63	≥28	≥28	≤37
YO20	20	561	63×55	0.4-0.63	≥26	≥33	≤33
Y26	26	650	65×70	0.4-0.63	≥30	≥23	≤47

Air Leg Rock Drill Type

Model	Weight	Dimension	Cyilinder diameter xSroke	Working pressure	Impace energy	Impact frenquency	Air consumption
Model	kg	mm	mm	MPa	J	Hz	I/s
YT23	24	628	76×60	0.4-0.63	≥65	≥37	≤78
YT23D	24	668	70×70	0.4-0.63	≥65	≥31	≤67
YT24	24	678	70×70	0.4-0.63	≥65	≥31	≤67
ZY24	25	690	70×70	0.4-0.63	≥65	≥30	≤67
YT28	26	661	60 ×60	0.4-0.63	≥70	≥37	≤81
MZ7665	26	720	76x70	0.4-0.63	≥70	≥37	≤81
