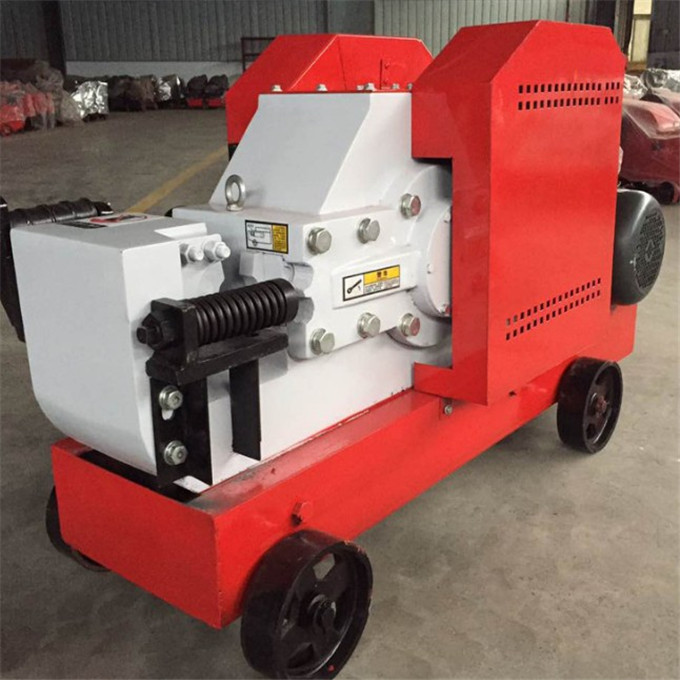

Home > Products > Contact Supplier Chat Now! Automatic GQ50 Electric Steel Rod Cutting Machine/Rebar cutting Machine With High Efficiency

Contact Supplier Chat Now! Automatic GQ50 Electric Steel Rod Cutting Machine/Rebar cutting Machine With High Efficiency

Click on the image to view the original image

Product：	views：2Contact Supplier Chat Now! Automatic GQ50 Electric Steel Rod Cutting Machine/Rebar cutting Machine With High Efficiency
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:22

Product Details

Overview

Quick Details

Model Number:: GQ40,GQ50,GQ60

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Voltage:: 220~440V

Dimension(L*W*H):: 1420*530*850mm

Certification:: ISO9001

Product type::: portable steel bar cutter

Cutting bar diameter::: up to 40mm/50mm

Name:: Rebar Cutting Machine With High Efficiency

Cutting angle steel::: 50x50mm

Cutting square steel:: 32x32mm

Cutting flat iron::: 70x15mm

Clutch::: Hand and foot clutch

Motor power::: 3kw

Motor brand::: Our own produced brand

Color::: Gray, white, black, etc

Weight:: 580

After-sales Service Provided:: Overseas third-party support available

Warranty:: 3 years

Rated Power:: 4-7.5KW

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month Rebar Cutting Machine With High Efficiency

Packaging & Delivery

Packaging Details: Rebar Cutting Machine With High Efficiency

Port: qingdao/dalian/shanghai/guangzhou

Lead Time:: within 3 days

Product Description

Contact SupplierChat Now! Automatic GQ50 Electric Steel Rod Cutting Machine/Rebar cutting Machine With High Efficiency

Main Features

1)26mm thickened cutting blade to prolong its service life.
2)Two positioning holes on cutting blade for stabilization.
3)Each edge of the cutting blade can be used to,save consumables.
4)The pressing plate for cutting blade is thickened.
5)Machine head is solid casting with high strength nodular cast iron, so it is more robust.
6)Equipped with machine base, convenient for fixing and transportation.
7)Inner gears and shafts are forged and service life is longer.
8)Copper wire motor could reach rated power and ensure the stable quality.
9) Good lubrication property,adopt enclosed gear box, use gear splashing to realize lubrication. It could continuous work over one month after adding 8KG gear oil.
10) Less loss because of the lubrication improvement. The gear section adopts rolling bearing, less resistance. Compared withsame type cutting machine, load can be reduced by 1/3.

Detailed Images
