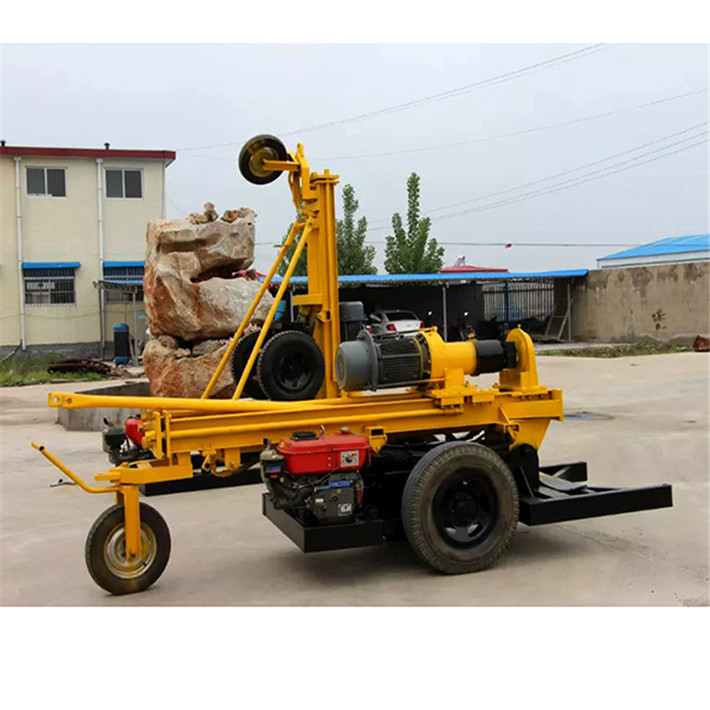

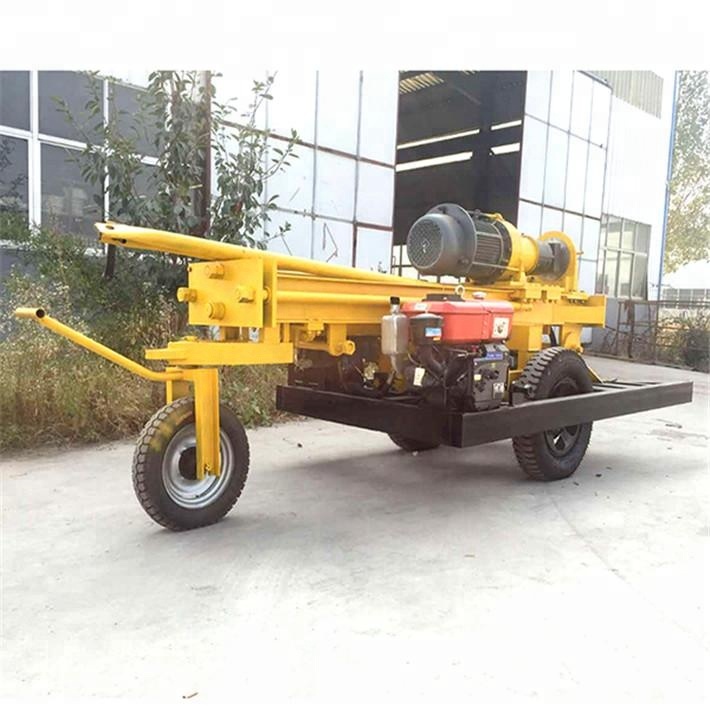

HW-150 portable rotary drilling rig machine

Click on the image to view the original image

Product：	views：2HW-150 portable rotary drilling rig machine
Branch：	HW
Type：	pneumatic drilling rig, pneumatic drilling rig
Size：	80X40X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:22

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: pneumatic drilling rig, pneumatic drilling rig

Power Type:: Diesel, air compressor

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: pneumatic drilling rig for hard rock

Voltage:: pneumatic drilling rig

Dimension(L*W*H):: 2400*950*1400mm

Weight:: 2330kg

Certification:: BV,SGS

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Engineers available to service machinery overseas

Maximum diameter:: 200mm

Drill Deep:: 245m

drill rod caliber:: 50mm

spindle stroke:: 450mm

end hole caliber:: 75mm

Working air pressure:: 1.05-4.5MPa

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X40X60 cm

Single gross weight:: 68.0 kg

Package Type:: drilling rig Standard wooden case packing

Lead Time:

Quantity(Set)	1 - 5	6 - 15	>15
Est. Time(days)	2	5	To be negotiated

Product Description

Pneumatic drilling rig Parameter

Features:
1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating

Introductions:
core drill rig is a high adaptability pneumatic DTH drill rig, with the characteristic of simple structure, easy operation and energy saving.  It can also drill vertical and horizontal blast  holes   in the fields of mines,national   defence,  water conservation,  road building and
stonework.  It has low center of gravity and its detachability is good.
It is essential for open mining drilling equipment, especially for the other drill rigs that do not work in the uneven rugged terrain;  It is with the characteristic of compact structure,  easy operation,
fast cutting speed, high efficiency, good removable.

Drilling diameter	100-254 MM	Drilling depth	200M
Drilling direction	45-90 degree	One-time drilling length	1500MM
Drilling rotary speed	52	Working pressure	1.45-2.5Mpa
Air Consumption	21 M3/MIN	Weight	1.8 Ton
