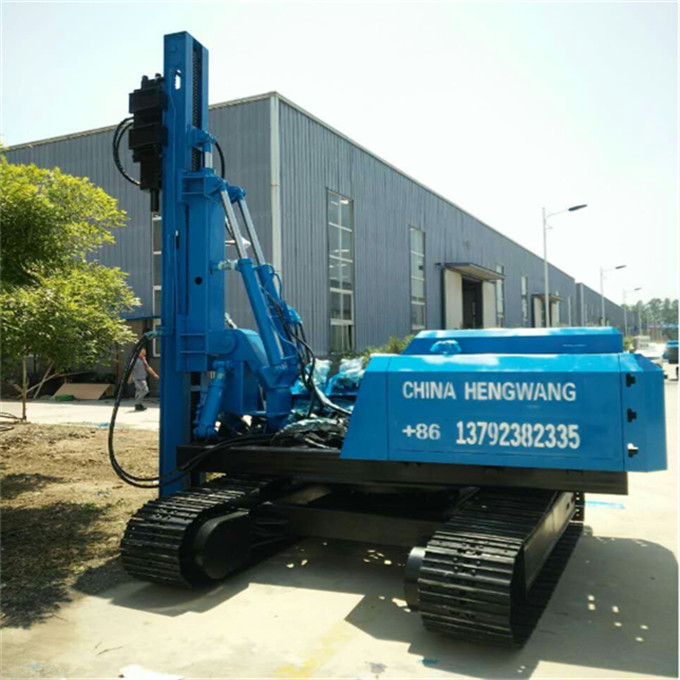

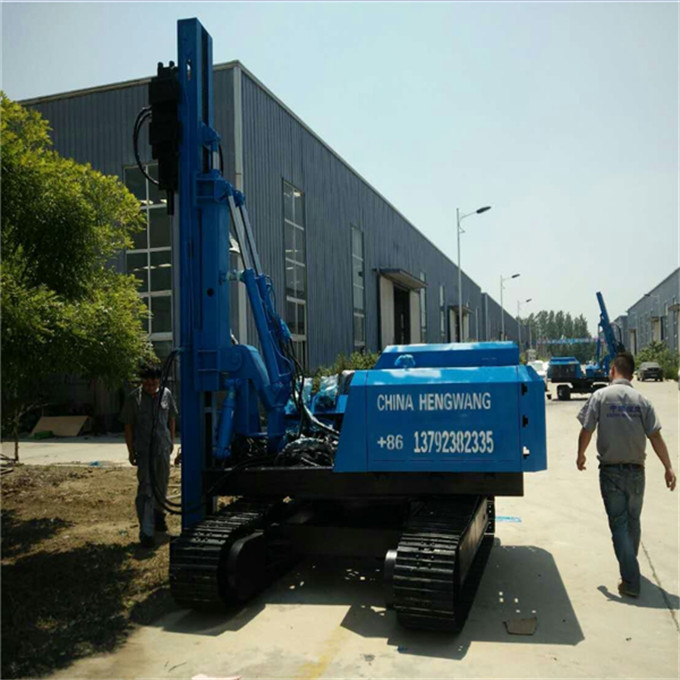

Hydraulic Solar Pile Driver Used for Photovoltaic System Installation
Click on the image to view the original image
Product： views：4Hydraulic Solar Pile Driver Used for Photovoltaic System Installation
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:22
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
2.7M/min
Efficiency:
High
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW-22
Weight:
150000
Dimension(L*W*H):
10500*2500*3200mm
Certification:
CE/SGS
working model:
self-pressure
Drilling diameter:
600-1200mm
Name:
Hydraulic Solar Pile Driver
Driling Depth:
15M
Rotation Angle:
360 Degree
Output torque:
26000
hydraulic system pressure:
20Mpa
Rotate speed:
25-30r/min
Engine power:
120Kw
Application:
Pile Driving
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
1000 Set/Sets per Month Hydraulic Solar Pile Driver Used for Photovoltaic System Instal
Packaging & Delivery
Packaging Details
Hydraulic Solar Pile Driver Used for Photovoltaic System Installation
Port
qingdao/dalian/shanghai/guangzhou/shenzhen
Lead Time:
within10 days
Video Description

 Hydraulic Solar Pile Driver Used for Photovoltaic System Installation

 Hydraulic Solar Pile Driver Used for Photovoltaic System Installation

Product Description

 Hydraulic Solar Pile Driver Used for Photovoltaic System Installation
Model HWZG-600L
Pile length0-6000mm
Duplex gear pump pressure25Mpa
Duplex gear pump displacement40/40/25ml/r
Hydraulic system pressure20Mpa
Main valve flow150L/Min
Overall Machine weight6T
Diesel engine power85KW
Rated Speed 2400R/min
Starting Voltage 24V
Rotation angle360°
Rotation semi diameter                         (rotating shaft to Pod distance)2150mm
Effective press pile stroke0-5000mm
Dimension(LXWXH)6300×2150×2300mm
Track shoe350mm
Walking motor total displacement1575ml/m
Motor  Head  Hamming Force 1700J
Walking motor rotate speed50r/min
Operating Speed (m/min) 1.590s/per pile
Number of impacts / strokes per 1 minute 900times/min
Maximum lengh of Piles to be rammed 6M
Walking speed 5-10Km/hr
Gradeability0-35°
Oil tank capacity 20L
 Daily production on 4.5m210Pieces
 Daily production on 2.5m260Pieces
Weather limitationWe have  exported to your country ,suitable for your cuntry
Soil limitation on freezed soilCan work on hard soil
 Hydraulic Solar Pile Driver Used for Photovoltaic System Installation
