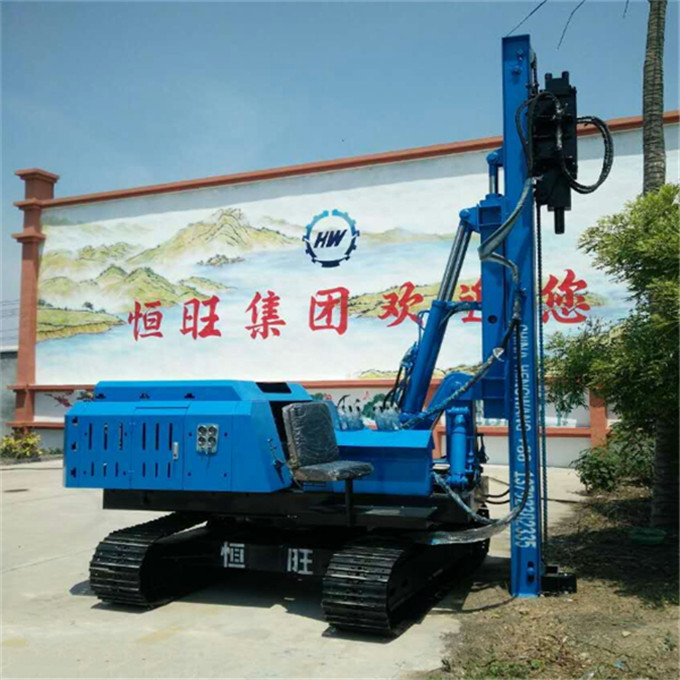

China best construction hydraulic auger drilling rig / pile driving machine / screw pile driver

Click on the image to view the original image

Product：	views：7China best construction hydraulic auger drilling rig / pile driving machine / screw pile driver
Branch：	HW
Size：	580X230X230 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:22

Product Details

Overview

Quick Details

Piling Speed(m/min):: 2.7M/min

Efficiency:: High

After-sales Service Provided:: Video technical support, Online support, Free spare parts, Overseas third-party support available

Warranty:: 1 Year

Applicable Industries:: Construction works

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 150000

Dimension(L*W*H):: 10500*2500*3200mm

Certification:: CE/SGS

UNIQUE SELLING POINT:: Fully hydraulic system

working model:: self-pressure

Drilling diameter:: 600-1200mm

Name:: Screw Drill

Driling Depth:: 15M

Rotation Angle:: 360 Degree

Output torque:: 26000

hydraulic system pressure:: 20Mpa

Rotate speed:: 25-30r/min

Engine power:: 120Kw

Packaging & Delivery

Selling Units:: Single item

Single package size:: 580X230X230 cm

Single gross weight:: 5000.0 kg

Package Type:: China best construction hydraulic auger drilling rig / pile driving machine / screw pile driver

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

China best construction hydraulic auger drilling rig / pile driving machine / screw pile driver

Product Description

China best construction hydraulic auger drilling rig / pile driving machine / screw pile driver

Model		HWZG-600L
Pile length	0-6000	mm
Duplex gear pump pressure	25	Mpa
Duplex gear pump displacement	40/40/25	ml/r
Hydraulic system pressure	20	Mpa
Main valve flow	150	L/Min
Overall Machine weight	6	T
Diesel engine power	85	KW
Rated Speed	2400	R/min
Starting Voltage	24	V
Rotation angle	360	°
Rotation semi diameter (rotating shaft to Pod distance)	2150	mm
Effective press pile stroke	0-5000	mm
Dimension(LXWXH)	6300×2150×2300	mm
Track shoe	350	mm
Walking motor total displacement	1575	ml/m
Motor Head Hamming Force	1700	J
Walking motor rotate speed	50	r/min
Operating Speed (m/min)	1.5	90s/per pile
Number of impacts / strokes per 1 minute	900	times/min
Maximum lengh of Piles to be rammed	6	M
Walking speed	5-10	Km/hr
Gradeability	0-35	°
Oil tank capacity	20	L
Daily production on 4.5m	210	Pieces
Daily production on 2.5m	260	Pieces
Weather limitation	We have exported to your country ,suitable for your cuntry
Soil limitation on freezed soil	Can work on hard soil
