Bore Hole Drilling Machine Dth Electric Portable Down Hole Rotary Drilling Rig

Click on the image to view the original image

Product：	views：2Bore Hole Drilling Machine Dth Electric Portable Down Hole Rotary Drilling Rig
Branch：	HENGWANG
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:22

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENGWANG

Model Number:: HQZ150/200

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 11kw

Dimension(L*W*H):: 3300*900*1200mm

Weight:: 900kg

Certification:: ISO

Name:: Bore Hole Drilling MachineDth Portable Down Hole Rotary Drilling Rig

Product name:: Bore Hole Drilling MachineDth Portable Down Hole Rotary Drilling Rig

Application:: Bore Hole Drilling MachineDth Portable Down Hole Rotary Drilling Rig

Drilling depth:: 150m

Feature:: High Drilling Efficiency

Color:: Customised

Model:: HQZ150/200

Drilling diameter:: 76-219mm

Engine:: Diesel Power

Spindle Speed:: 64. 128. 287. 557r/min

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month Bore Hole Drilling MachineDth Electric Portable Down Hole Rota

Packaging & Delivery

Packaging Details: woodencase

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:: within 7 daysafterreceiveyourfull payment

Product Description

Introductions:

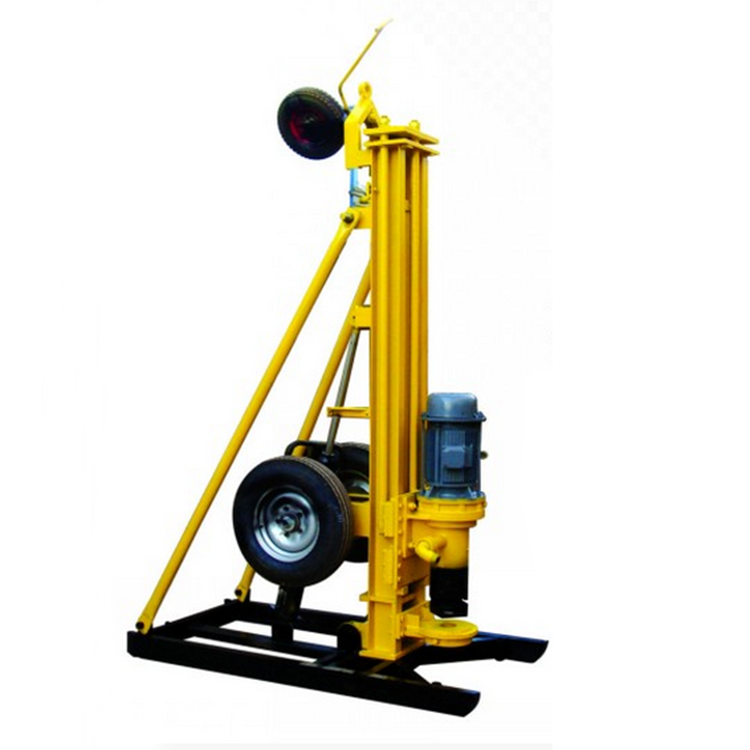

HQZ series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The rig can be Chuanzao work on different formations, drilling diameter up to 219mm. The rig adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.

Features:

1.High drilling efficiency, power provided by energy saving motor

2.High efficiency, large rotary torque

3.Simple structure and easy to move

4.Adopt consummate design, long service life

5.Easy to operating

The weight(T)	0.9
Dimensions(mm)	33009001200
The hole diameter(mm)	76~219
Drilling depth(m)	150
Once-time advance length(mm)	3000
Walking speed(km/h)	2.5~5
Climbing angles(Max.)	30
Minimum clearance clearance(mm)	250
Using air pressure(Mpa)	1-2.45
Air consumption(m³/min)	10-29
Equipped capacitor(Kw)	7.5
Swing torque(N.m)	8660-11150
Drill pipe diameter(mm)	Φ76 Φ89 Φ102
Drill pipe length(m)	1.5 2.0
Rig lifting force(T)	6.5 Te
