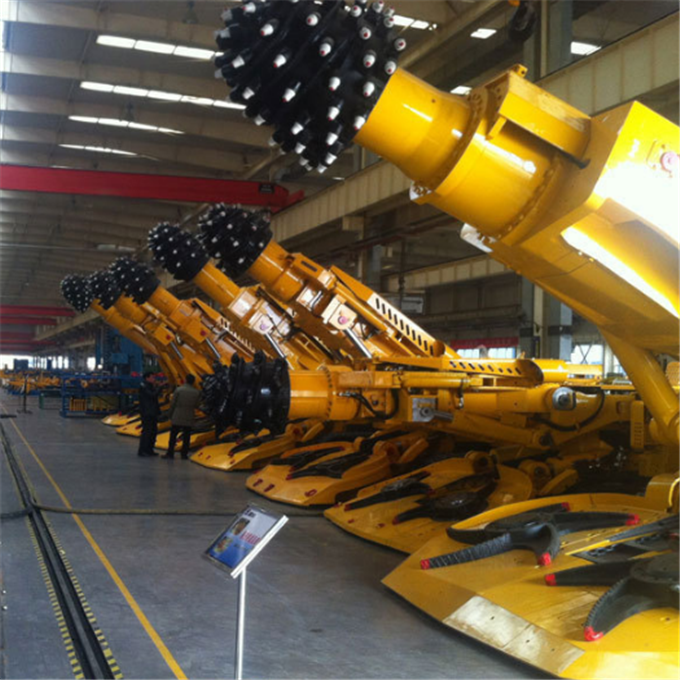

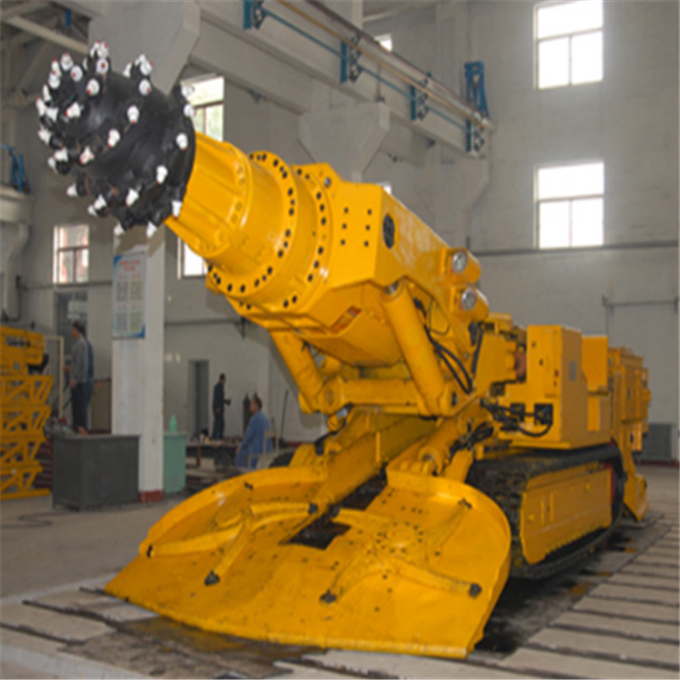

2018 water conservancy tunnel EBZ230 cantilever type roadheader
2018 water conservancy tunnel EBZ230 cantilever type roadheader
2018 water conservancy tunnel EBZ230 cantilever type roadheader
1: stable performance
2: high production efficiency 4m3/min
3: adopt imported variable control system ,
EBZ series Roadheader is a kind of comprehensive tunnelling equipment intergrated with continuous cutting , conveying and moving . it suits for tunneling with different shape crosssection in coal lane ,half coal lane and soft rock . The machine adpot three dimensional design and the key spare parts are famous international brand products to ensure reliable performance . The center of gravity preposition design benefit for stable operation after connecting the belt stage loader . EBZ series Roadheader suits for mechanized production in coal mine and tunnel works , our EBZ120 , EBZ160 ,EBZ200 , EBH120 roadheader enjoy a good reputation owning to its efficiency and practibility .
Technology Parameters
Items | Parameters | ||
Gross vehicle mass | 54t | ||
External Dimensions | Length | 10440mm | |
Width | Shovel board | 3200mm | |
Body | 2520mm | ||
Height | Highest point of the cutting head when placed horizontally | 2135mm | |
Body | 1720mm | ||
Dinting depth (extensible/inextensible) | 520/200mm | ||
Ground clearance | 250mm | ||
Positioning cutting Scope | Height (extensible/inextensible) | 5100/4460mm | |
Width (extensible/inextensible) | 6500/5670mm | ||
Area (extensible/inextensible) | 33/25m² | ||
Gantry height | 400mm | ||
Compressive strength in coal-rock cutting | ≤90/70MPa | ||
Gradeability | ±18° | ||
Travel speed | 7m/min | ||
Ground pressure | 0.132Mpa | ||
Total power | 290KW | ||
Cutting motor power | 200/110KW | ||
Pump station motor power | 90K W | ||
