Overview
Quick Details
- Applicable Industries:
- Construction works
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Coal
- Voltage:
- 220V/380V
- Dimension(L*W*H):
- 4850*1900*5250
- Weight:
- 12500kg
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
- Broaching Diameter:
- 3500mm
- Name:
- Raise boring machine
- Diameter Of Pilot Hole:
- 295mm
- Drilling Depth:
- 400meters
- Rotational Speed Of Shaft Extension:
- 5 to 28rpm
- Rated Torque:
- 75-80KN.m
- Maximum Torque:
- 150KN.m
- Maximum Thrust:
- 2000
- Drillig Angle:
- 60°-90°
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 480X190X520 cm
- Single gross weight:
- 12800.0 kg
- Package Type:
- Raise bore drilling machine /Raise boring machine/raise drilling rig

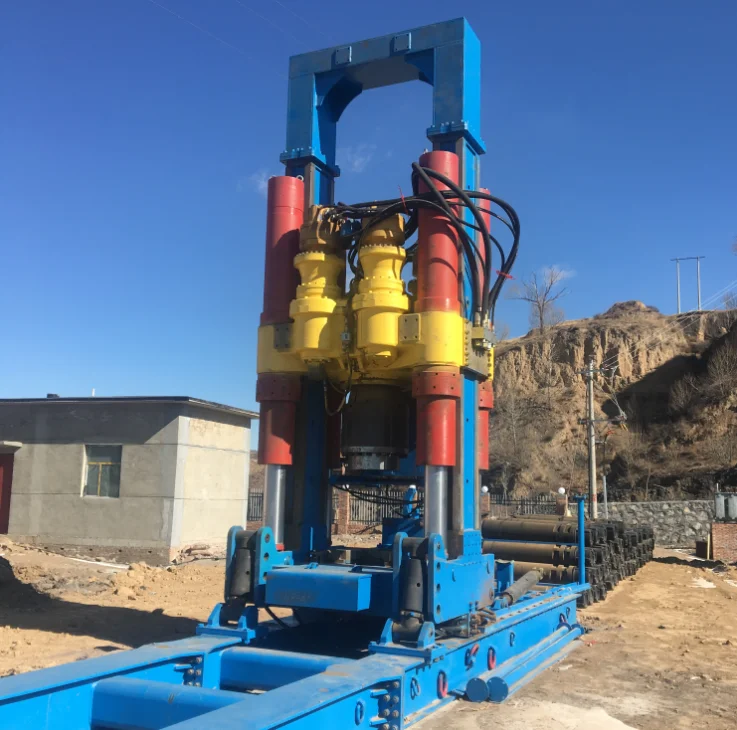

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 7 To be negotiated
ProductDescription
Raise bore drilling machine /Raise boring machine/raise drilling rig
1). The up drilling rig has the following advantages
1. The raise drilling rig main parameters such as pushing, pulling force, rotating torque and rotating speed of the drilling rig are reasonable in design, and the drilling process is simple, which can meet the construction requirements under different geological conditions and various apertures;
2, Raise bore drilling machine using full hydraulic drive, compact structure, light weight, power saving;
3, Raise boring machin the host installation and transportation and adjustment of all mechanization, simple and labor-saving, rapid and safe, no need for auxiliary equipment;
4, Mine drilling rig the host hydraulic system is simple and reliable, easy to operate, most of the hydraulic components use the national standard series of brand-name components, easy to repair and replace;
5. The coal drilling rig drilling process realizes mechanized operation, the operation is simple and safe, the working conditions are improved, and the labor intensity is reduced;
6. The drilling machine Drill pipe thread adopts API international general standard, safe and reliable, good interchangeability, long service life, reasonable process of loading and unloading drilling tools, short auxiliary time, drilling machine with open hole drill pipe and special stable drill pipe, which can effectively Prevent wellbore deflection;
7. The drill rig has strong applicability and can be constructed under more complicated geological conditions;
8. The drilling rig is explosion-proof and suitable for use in environments with flammable gases at all levels;
9. The anti-well drilling rig has high efficiency, good speed forming block and good quality.
2). The big diameter up drilling rig Taper worm gear hob has the following advantages
With the development of the times, hobs are widely used in the machinery industry. There are many types of hobs. Taper worm hobs are one of them. Do you know the characteristics of taper worm hobs? If you still don"t understand,
The drilling rig In the complex gear tool manufacturing industry, worm gear machining requires a special taper worm gear hob. The accuracy of the worm gear depends on the accuracy of the worm wheel hob, especially the large spiral angle worm gear hob (the worm wheel hob with a helix angle greater than 30°). The accuracy error is very high, so it is especially important to accurately detect the accuracy error of the large spiral angle worm hob. The taper worm gear hob is determined by the worm and there are no standardized tools. Generally made by the hob zk type. At the same time, the worm wheel hob determines the size of the hob by the worm and worm gear specifications.
The drilling machine type and main parameters of the basic worm (see worm drive) of the tapered worm hob (modulus, tooth angle, index circle diameter, screw hob angle and number of threads) should be the same as the working worm, so the worm wheel Knives are often dedicated. When the outer diameter is large, the hob is made into a set type; when the outer diameter is small, the hob is made into a shank structure integrated with the mandrel.
Taper worm gear hob features
1. Raise boring machine Axial modulus or tooth direction modulus, diameter section
2. Raise boring machine Pressure angle (tooth vertical, axis vertical)
3. Raise boring rig The outer diameter or pitch diameter of the worm wheel
4. Worm chamfering
5. Number and direction of the worm wheel
6. Handle type handle specifications
7. The standard contact rate of worm gear and worm is suitable for ordinary 20-30%. The inner diameter form or the shank type can be selected.
1. The raise drilling rig main parameters such as pushing, pulling force, rotating torque and rotating speed of the drilling rig are reasonable in design, and the drilling process is simple, which can meet the construction requirements under different geological conditions and various apertures;
2, Raise bore drilling machine using full hydraulic drive, compact structure, light weight, power saving;
3, Raise boring machin the host installation and transportation and adjustment of all mechanization, simple and labor-saving, rapid and safe, no need for auxiliary equipment;
4, Mine drilling rig the host hydraulic system is simple and reliable, easy to operate, most of the hydraulic components use the national standard series of brand-name components, easy to repair and replace;
5. The coal drilling rig drilling process realizes mechanized operation, the operation is simple and safe, the working conditions are improved, and the labor intensity is reduced;
6. The drilling machine Drill pipe thread adopts API international general standard, safe and reliable, good interchangeability, long service life, reasonable process of loading and unloading drilling tools, short auxiliary time, drilling machine with open hole drill pipe and special stable drill pipe, which can effectively Prevent wellbore deflection;
7. The drill rig has strong applicability and can be constructed under more complicated geological conditions;
8. The drilling rig is explosion-proof and suitable for use in environments with flammable gases at all levels;
9. The anti-well drilling rig has high efficiency, good speed forming block and good quality.
2). The big diameter up drilling rig Taper worm gear hob has the following advantages
With the development of the times, hobs are widely used in the machinery industry. There are many types of hobs. Taper worm hobs are one of them. Do you know the characteristics of taper worm hobs? If you still don"t understand,
The drilling rig In the complex gear tool manufacturing industry, worm gear machining requires a special taper worm gear hob. The accuracy of the worm gear depends on the accuracy of the worm wheel hob, especially the large spiral angle worm gear hob (the worm wheel hob with a helix angle greater than 30°). The accuracy error is very high, so it is especially important to accurately detect the accuracy error of the large spiral angle worm hob. The taper worm gear hob is determined by the worm and there are no standardized tools. Generally made by the hob zk type. At the same time, the worm wheel hob determines the size of the hob by the worm and worm gear specifications.
The drilling machine type and main parameters of the basic worm (see worm drive) of the tapered worm hob (modulus, tooth angle, index circle diameter, screw hob angle and number of threads) should be the same as the working worm, so the worm wheel Knives are often dedicated. When the outer diameter is large, the hob is made into a set type; when the outer diameter is small, the hob is made into a shank structure integrated with the mandrel.
Taper worm gear hob features
1. Raise boring machine Axial modulus or tooth direction modulus, diameter section
2. Raise boring machine Pressure angle (tooth vertical, axis vertical)
3. Raise boring rig The outer diameter or pitch diameter of the worm wheel
4. Worm chamfering
5. Number and direction of the worm wheel
6. Handle type handle specifications
7. The standard contact rate of worm gear and worm is suitable for ordinary 20-30%. The inner diameter form or the shank type can be selected.
1. The Raise boring machine working efficiency of the anti-drilling rig is high: the construction of the anti-drilling rig is mechanized continuous operation, the speed is fast, the work efficiency is several times higher than other construction methods, which creates favorable conditions for the later construction and the comprehensive benefits are remarkable.
2. The Raise bore drilling machine quality of the well wall is good: the anti-well drilling rig uses the hob mechanical to break the rock, which has little damage to the surrounding rock and the well wall is smooth, which is conducive to the expansion and slag slag, ventilation and drainage.
3. Raise bore drilling rig Low labor intensity: The anti-well drilling rig adopts hydraulic or electric control for transmission and control, and the operation is simple. Drill pipe lifting, loading and unloading, etc. are all assisted by the mechanism. The labor intensity of the workers is low and the labor is small.
4. Raise bore drilling machine Construction: Compared with other anti-well construction methods, when the anti-well drilling rig is constructed, the staff does not need to enter the rock-breaking working face, and does not need to do operations such as drilling, charging and temporary support. The personnel are in the environment and ** In the good condition, the construction personnel are no longer exposed to falling rocks, water, harmful gases, etc., and avoid the occurrence of all accidents.
Technical Parameters
Machine ModelItem
BasicParameters
Diameter Of Pilot Hole 295
Broaching Diameter 3.5
Drilling Depth 400
Rotational Speed Of Shaft Extension 5 to 28
Rated Torque75-80
Maximum Torque150
Maximum Thrust 2000
Maximum Tension Of Broaching3000
Drillig Angle 60°-90°
Weight Of Main Machine 12.5T
Handing Dimension Of Main Machine (Length,Width,and height)3000*1750*1750
Working Dimension Of Main Machine(Length,Width And Height )4850*1900*5250
Drill Rod Diameter*Effective Length)254mm*1000mm
Slope Of Drill Hole≤1
Motoe Power 168KW
DriveMethodFull Hydraulic Drive
Adaptive LithologyOne-way Compressive Strength Of Rocks ≤140.0MPa

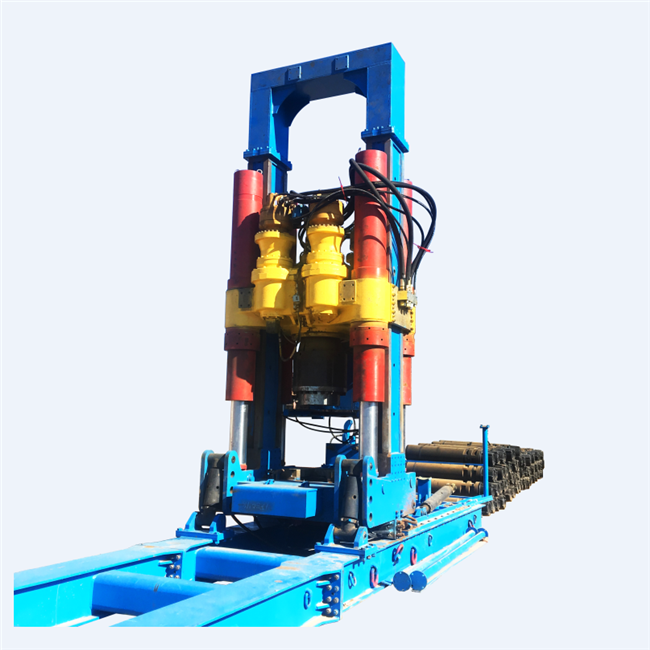

Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Detailed Images
Raise bore drilling machine /Raise boring machine/raise drilling rig
Machine Parts
Name: Spare Parts
Brand: HW
Original: Germany
American ParkerJiangsu Hengyuan Hydraulic Co., Ltd.Beijing Huade Hydraulic Industrial Group Co., Ltd.(Sino-German joint venture)SKF Bearing OilPumpGerman RexrothMainelectric partsSweden ABB
Raise bore drilling machine /Raise boring machine/raise drilling rig
Main Features
Name: Blade
Brand: HW
Original: Germany
Raise bore drilling machine /Raise boring machine/raise drilling rig
Machine Parts
Name: Drill Rod
Brand: HW
Original: Germany
Best Quality
Raise bore drilling machine /Raise boring machine/raise drilling rig
Main Features
Name: Drill Bit
Brand: HW
Original: Germany
Raise bore drilling machine /Raise boring machine/raise drilling rig
Packing & Delivery
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Our Company
Raise bore drilling machine /Raise boring machine/raise drilling rig
Certifications
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig

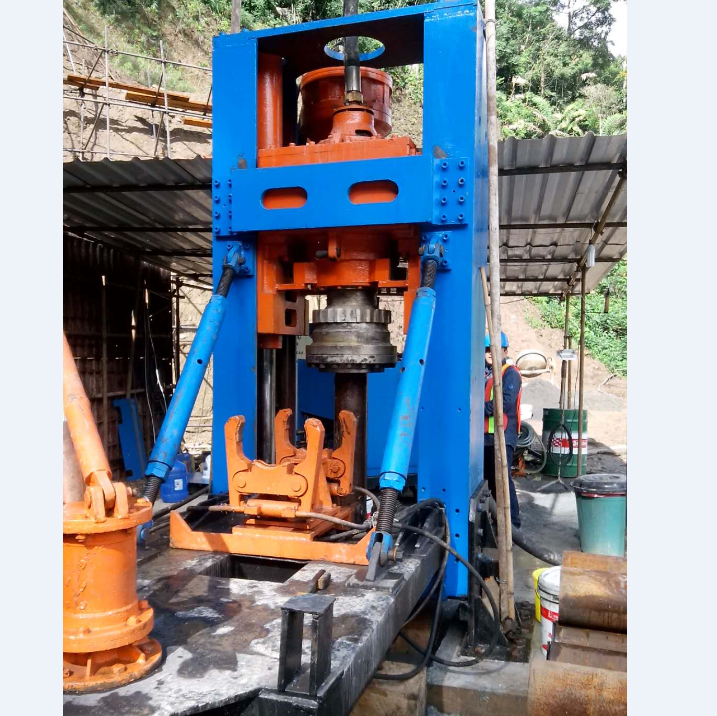

ProjectSite
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
Foreign Exhibition
Raise bore drilling machine /Raise boring machine/raise drilling rig
Raise bore drilling machine /Raise boring machine/raise drilling rig
