Home > Products > well drilling rig/deep water well drilling rig/small drilling rig

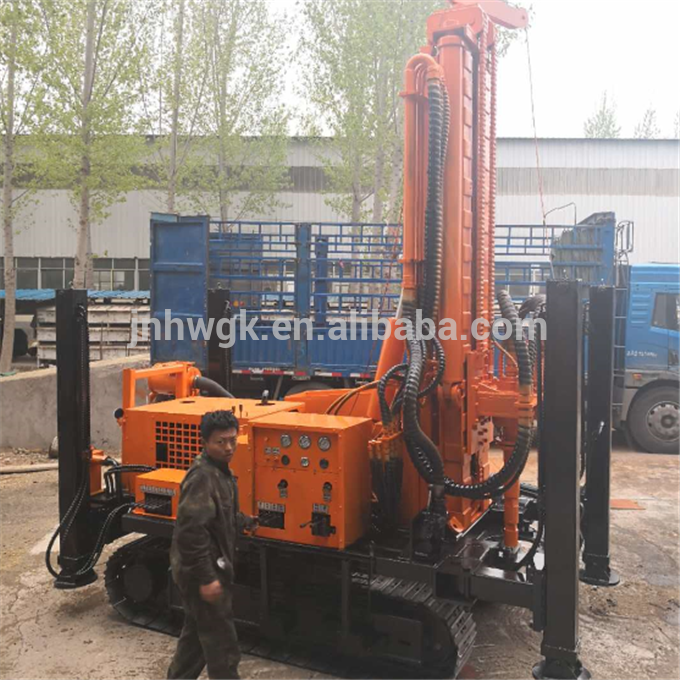

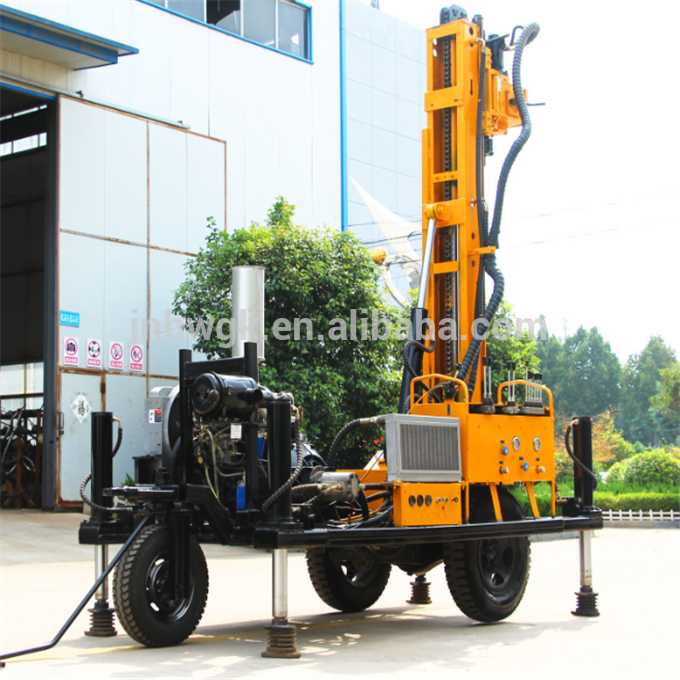

well drilling rig/deep water well drilling rig/small drilling rig

Click on the image to view the original image

Product：	views：2well drilling rig/deep water well drilling rig/small drilling rig
Branch：	HW
Type：	Rotary Drilling Rig
Size：	360X160X260 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:22

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 3800 * 1600 * 2600mm

Weight:: 4600KG

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Overseas service center available

Drilling depth::: 200m

Feature:::: High Efficiency

Name:: small drilling rig

drilling diameter:: 140mm

One advance length:: 3000mm

Walking speed:: 2.5km/h

Working pressure:: 30Mpa

Tractor power::: 80KW

Air consuption:: 17-35m3 / min

Packaging & Delivery

Selling Units:: Single item

Single package size:: 360X160X260 cm

Single gross weight:: 4500.0 kg

Package Type:: deep water well drilling rig

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

well drilling rig/deep water well drilling rig/small drilling rig

Product Description

well drilling rig/deep water well drilling rig/small drilling rig

Weight (T) 4.6
Dimensions (mm) 3800 * 1600 * 2600
Drilling diameter (mm) 140
Drilling depth (m) 200
One advance length (mm) 3000
Walking speed (km / h) 2.5
Standby climbing ability (max) 30
Minimum ground clearance (mm) 250
Working pressure (mpa) 1.7-3.0
Air consuption (m3 / min) 17-35
Host power (kw) 65
Rotation speed (rpm) 50-70
Rotary torque (Nm) 5000-6500

well drilling rig/deep water well drilling rig/small drilling rig

Packaging & Shipping

well drilling rig/deep water well drilling rig/small drilling rig

Our Services

well drilling rig/deep water well drilling rig/small drilling rig
