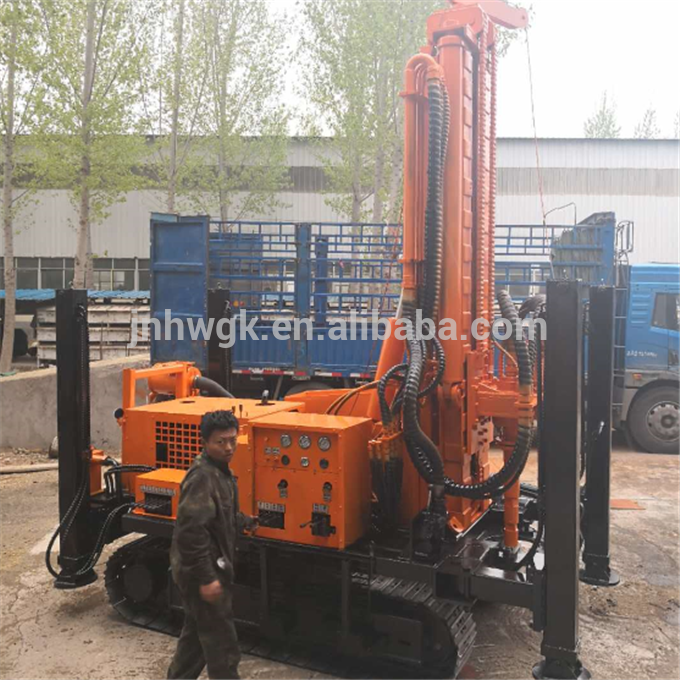

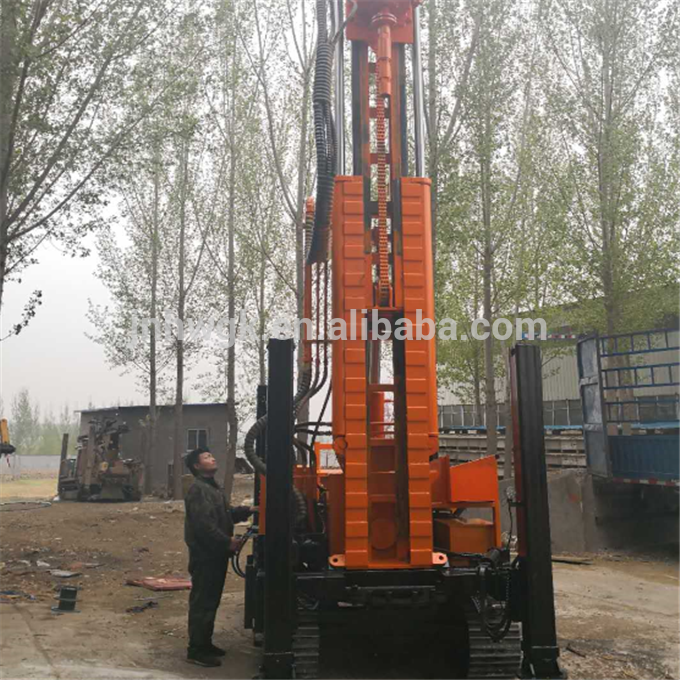

air borehole drilling machines rigs rotary crawler water well drilling rig machine well drilling machines

Click on the image to view the original image

Product：	views：4air borehole drilling machines rigs rotary crawler water well drilling rig machine well drilling machines
Branch：	HW
Type：	Rotary Drilling Rig
Size：	360X160X260 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:22

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 3800 * 1600 * 2600mm

Weight:: 4600KG

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Overseas service center available

Drilling depth::: 200m

Feature:::: High Efficiency

Name:: Water Well Drill Rigs For Sale

drilling diameter:: 140mm

One advance length:: 3000mm

Walking speed:: 2.5km/h

Working pressure:: 30Mpa

Tractor power::: 80KW

Air consuption:: 17-35m3 / min

Packaging & Delivery

Selling Units:: Single item

Single package size:: 360X160X260 cm

Single gross weight:: 4500.0 kg

Package Type:: Portable Water Well Drilling Rigs For Sale

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

air borehole drilling machines rigs rotary crawler water well drilling rig machine well drilling machines

Product Description

air borehole drilling machines rigs rotary crawler water well drilling rig machine well drilling machines

Weight (T) 4.6
Dimensions (mm) 3800 * 1600 * 2600
Drilling diameter (mm) 140
Drilling depth (m) 200
One advance length (mm) 3000
Walking speed (km / h) 2.5
Standby climbing ability (max) 30
Minimum ground clearance (mm) 250
Working pressure (mpa) 1.7-3.0
Air consuption (m3 / min) 17-35
Host power (kw) 65
Rotation speed (rpm) 50-70
Rotary torque (Nm) 5000-6500

air borehole drilling machines rigs rotary crawler water well drilling rig machine well drilling machines
