Home > Products > 200m Depth tractor mounted water well drilling rig/Machine to dig deep wells

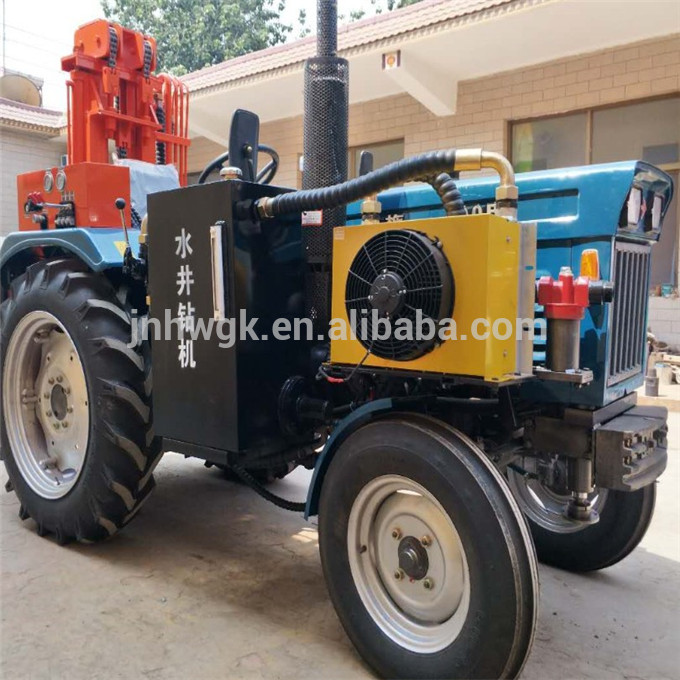

200m Depth tractor mounted water well drilling rig/Machine to dig deep wells
Click on the image to view the original image
Product： views：2200m Depth tractor mounted water well drilling rig/Machine to dig deep wells
Branch： HW
Type： Rotary Drilling Rig
Size： 560X200X260 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:23
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Voltage:
220V/380V
Dimension(L*W*H):
3400*1500*2200mm
Weight:
5000kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Overseas service center available
Drilling depth::
30-150
Feature:::
High Efficiency
Name:
200m Depth Tractor Mounted Water Well Drilling Rig
drilling diameter:
450~1200 mm
Speed of Liftin::
30 m/min
Sewage Pump:
15Kw
Working pressure:
5.7Mpa
Tractor power::
80KW
Color:
Customised

Packaging & Delivery

Selling Units:
Single item
Single package size:
560X200X260 cm
Single gross weight:
5000.0 kg
Package Type:
Tractor Mounted Water Well Drilling Rig
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)7To be negotiated
Video Description

200m Depth tractor mounted water well drilling rig/Machine to dig deep wells

200m Depth tractor mounted water well drilling rig/Machine to dig deep wells

Product Description

200m Depth tractor mounted water well drilling rig/Machine to dig deep wells

Tractor type water well  drilling rigHW-80-150
Drilling capacityMax drilling depth150 m
Max drilling diameter450~1200 mm
DP diameter*length127*2000 mm
Chassischassis drive mode4×4
Engine power80kW
Feeding systemLifting force/pressuring force120 kN / 40 kN
Speed of lifting and lowering0~10 m/min
Stroke3000 mm
Power unitTorque0~12000 N.m
Rotary speed0~160 r/min
Inner diameter127 mm
Mud pumpMax pressure/displacement/
Reverse circulation pumpMax. displacement/medium180m³/h  82mm
Tool winch Lifting force15 kN
Overall dimensiontravelling condition5650*2000*2660 mm
working condition 4800*2000*4180 mm
Overall weight5000 kg
