Overview
Quick Details
- Applicable Industries:
- Construction works
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- 220V/380V
- Dimension(L*W*H):
- 3400*1500*2200mm
- Weight:
- 5000kg
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Overseas service center available
- Drilling depth::
- 30-150
- Feature:::
- High Efficiency
- Name:
- Tractor Mounted Water Well Drilling Rig
- drilling diameter:
- 450~1200 mm
- Speed of Liftin::
- 30 m/min
- Sewage Pump:
- 15Kw
- Working pressure:
- 5.7Mpa
- Tractor power::
- 80KW
- Color:
- Customised
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 560X200X260 cm
- Single gross weight:
- 5000.0 kg
- Package Type:
- Tractor Mounted Water Well Drilling Rig
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 7 To be negotiated
Video Description

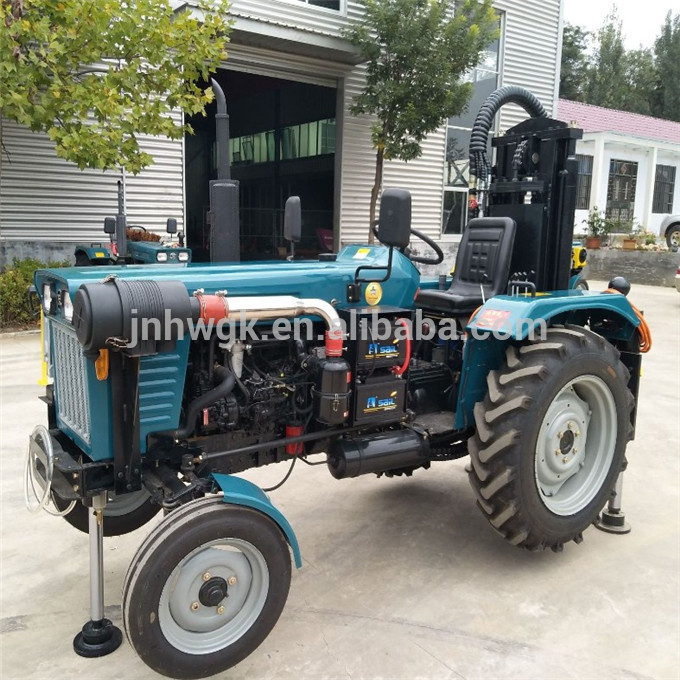

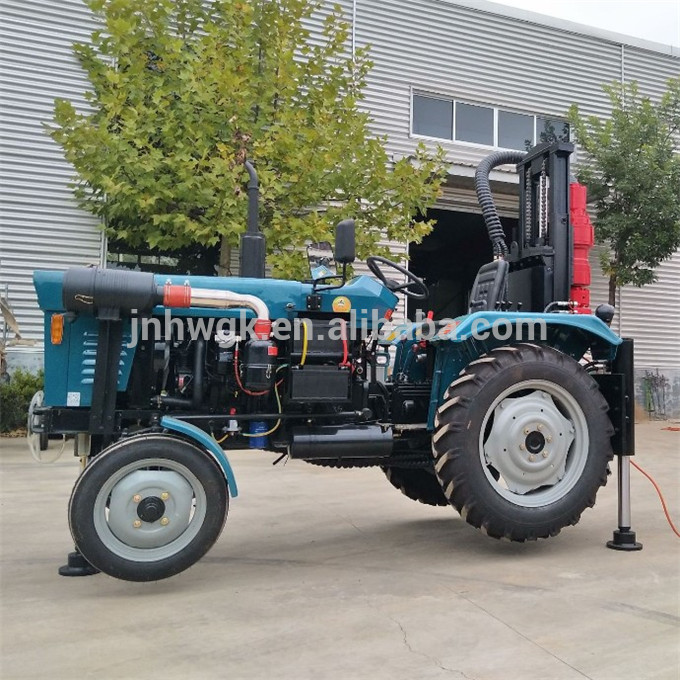

high quality tractor mounted water well drilling rig
high quality tractor mounted water well drilling rig
Product Description
high quality tractor mounted water well drilling rig
Tractor type water well drilling rig | HW-80-150 | ||
Drilling capacity | Max drilling depth | 150 m | |
Max drilling diameter | 450~1200 mm | ||
DP diameter*length | 127*2000 mm | ||
Chassis | chassis drive mode | 4×4 | |
Engine power | 80kW | ||
Feeding system | Lifting force/pressuring force | 120 kN / 40 kN | |
Speed of lifting and lowering | 0~10 m/min | ||
Stroke | 3000 mm | ||
Power unit | Torque | 0~12000 N.m | |
Rotary speed | 0~160 r/min | ||
Inner diameter | 127 mm | ||
Mud pump | Max pressure/displacement | / | |
Reverse circulation pump | Max. displacement/medium | 180m³/h 82mm | |
Tool winch | Lifting force | 15 kN | |
Overall dimension | travelling condition | 5650*2000*2660 mm | |
working condition | 4800*2000*4180 mm | ||
Overall weight | 5000 kg |
Packaging & Shipping
high quality tractor mounted water well drilling rig
high quality tractor mounted water well drilling rig
Our Services
high quality tractor mounted water well drilling rig
high quality tractor mounted water well drilling rig
Company Information
high quality tractor mounted water well drilling rig
