Home > Products > Tractor mounted water well drilling rig machine DTH drilling rig with air compressor for sale

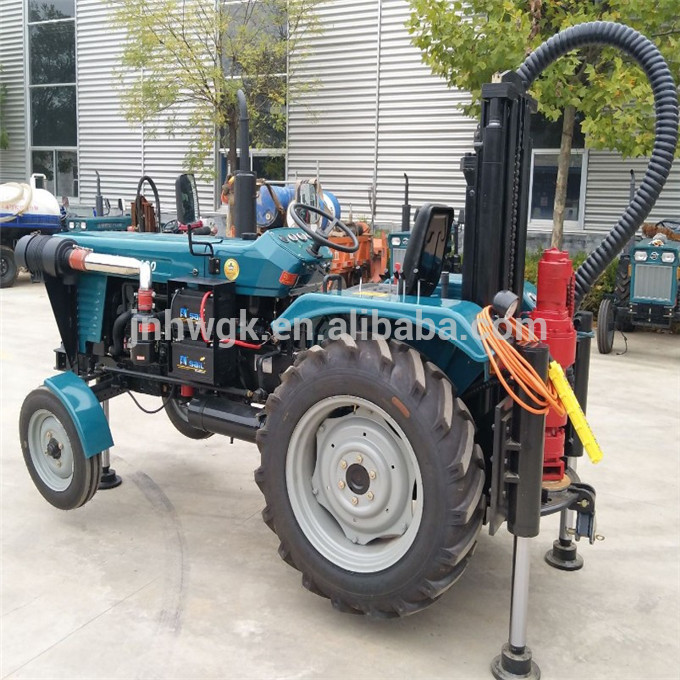

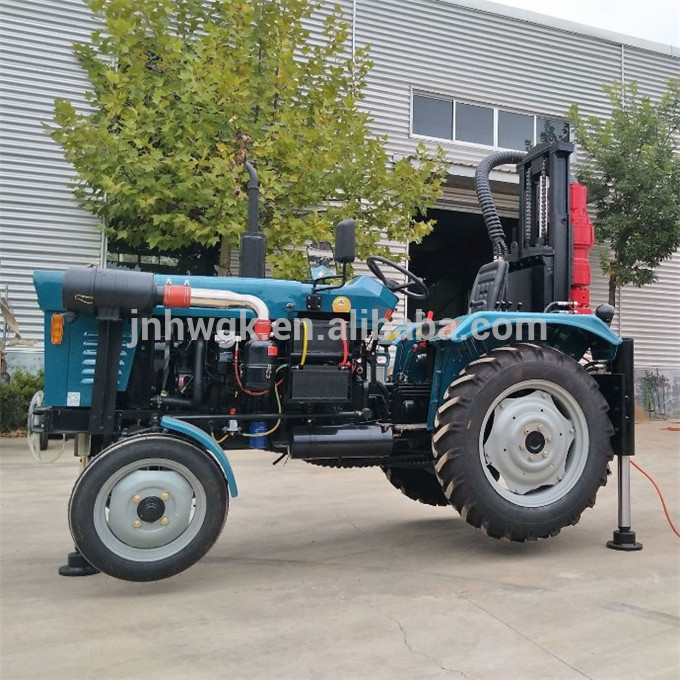

Tractor mounted water well drilling rig machine DTH drilling rig with air compressor for sale

Click on the image to view the original image

Product：	views：2Tractor mounted water well drilling rig machine DTH drilling rig with air compressor for sale
Branch：	HW
Type：	Rotary Drilling Rig
Size：	560X200X260 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 3400*1500*2200mm

Weight:: 5000kg

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Overseas service center available

Drilling depth::: 30-150

Feature:::: High Efficiency

Name:: Tractor Mounted Water Well Drilling Rig

drilling diameter:: 450~1200 mm

Speed of Liftin::: 30 m/min

Sewage Pump:: 15Kw

Working pressure:: 5.7Mpa

Tractor power::: 80KW

Color:: Customised

Packaging & Delivery

Selling Units:: Single item

Single package size:: 560X200X260 cm

Single gross weight:: 5000.0 kg

Package Type:: Tractor mounted water well drilling rig machine DTH drilling rig with air compressor for sale

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Tractor mounted water well drilling rig machine DTH drilling rig with air compressor for sale

Product Description

Tractor mounted water well drilling rig machine DTH drilling rig with air compressor for sale

Tractor type water well drilling rig		HW-80-150
Drilling capacity	Max drilling depth	150 m
	Max drilling diameter	450~1200 mm
	DP diameter*length	127*2000 mm
Chassis	chassis drive mode	4×4
	Engine power	80kW
Feeding system	Lifting force/pressuring force	120 kN / 40 kN
	Speed of lifting and lowering	0~10 m/min
	Stroke	3000 mm
Power unit	Torque	0~12000 N.m
	Rotary speed	0~160 r/min
	Inner diameter	127 mm
Mud pump	Max pressure/displacement	/
Reverse circulation pump	Max. displacement/medium	180m³/h 82mm
Tool winch	Lifting force	15 kN
Overall dimension	travelling condition	565020002660 mm
	working condition	480020004180 mm
Overall weight		5000 kg
