Home > Products > Portable 100m,250m,600m Portable Mining Mobile Water Well Drilling Rigs for Sale

Portable 100m,250m,600m Portable Mining Mobile Water Well Drilling Rigs for Sale

Click on the image to view the original image

Product：	views：2Portable 100m,250m,600m Portable Mining Mobile Water Well Drilling Rigs for Sale
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: jps300

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 30hp

Dimension(L*W*H):: 3.4*1.5*2.2m

Weight:: 3500KG

Certification:: ISO9001

Name:: water well drilling rig

Max drilling diameter:: 1800mm

Max drilling depth:: 400m

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Year water well drilling rig

Packaging & Delivery

Packaging Details: 40" CONTAINER

Port: QINGDAO

Lead Time:: 7days

Product Details

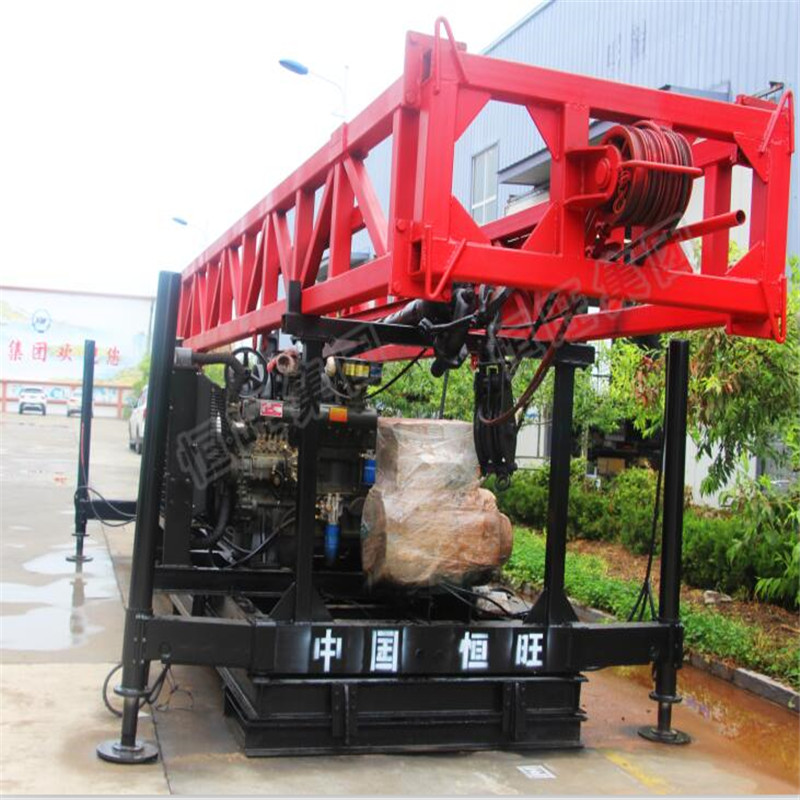

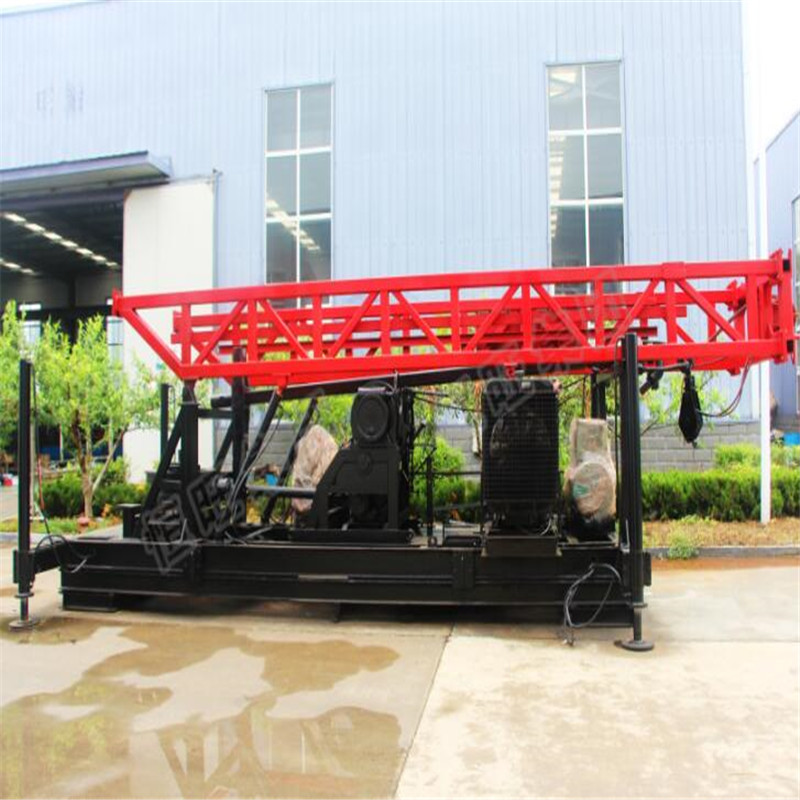

tractor water well drilling rig

This product is an integrated drilling equipment by combiningtractor and pneumatic water well drilling rig,which is easy to walk and combined the air compressor . Make the construction more convenient and efficient.

Product Introduction

tractor water well drilling rig

Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.

ModelSPJ-300SPJ-600
(mm) Drill DiameterΦ500-1800Φ500-2500
(m) Drill Depth400-50600
(kn/m) Maximum output torque18

(mm)Drive pipe108×108×4000108×108×8000108×108×12000
(mm) Drill pipeφ89×4200,φ89
main winch(KN)Single rope lift3035
auxiliary winch(KN)Single rope rated lift2015
(mm)Spindle inner diameterΦ500-1200Φ605
(,)(r/min)Spindle revolving speed40,70,12842/75/134
(m)Drill Mast vertical height8.615
(T)Weight 6.511
(mm)Dimension 8400×2050×8000

Product Parameters
