Use area:
1. Highway guardrail drilling, piling, pulling piles
2, other various sites piling (such as farms, ranches, orchards, etc.)
3. Highway field construction
Power configuration: The diesel engine with reasonable power and excellent performance provides a powerful source of power for construction operations, and the reliability of power and fuel economy have been greatly improved.
Hydraulic system: advanced hydraulic system, high quality hydraulic components and strict assembly process to ensure the high efficiency and durability of the hydraulic system.
Design: The overall frame structure is excellent, and the material is completely national standard. High-strength, good stability, in line with the design sense of industrial beauty, the operator"s working space is more spacious.
Production process: The production process is more reasonable, and the wear parts are all heat treated. The welding process is rigorous, and the entire frame is welded with stress-relief treatment to reduce deformation and improve the testing equipment.
Performance characteristics:
1. The mature and reliable chassis design, the plateau force without attenuation in the plateau, and the slope-free construction slope in mountainous areas are the first choice for safety and reliability.
2, 4-cylinder stepless speed, easy to move, special roads can change their own field, easy to operate, high precision, positioning faster, more efficient than the 260 about 10%.
3, unique heat dissipation design to ensure long-term equipment.
4. The integrated track moves steadily, and the drilling (piling) has high precision.
5. Innovative hydraulic pump design greatly improves construction efficiency.
6, full-time four-wheel drive, four-wheel brake
TECHNICAL PARAMETER

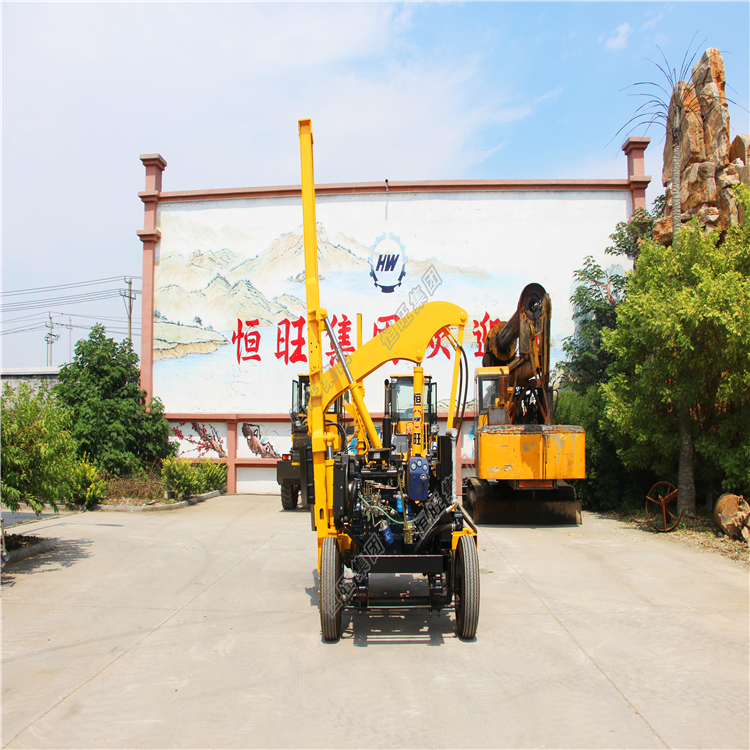

Hydraulic drilling machine
Diesel engine power (KW) 32
Hydraulic system flow (L/Min) 80-110
Rated system pressure (Mpa) 15
Track (M) 1620
Wheelbase (M) 2070
Dimensions (length * width * height)
Weight (Kg) about 1900
Piling device Weight of hammer ((Kg) 180
Hydraulic hammer blow frequency (Bpm) 500-900
Hydraulic hammer working flow (L/min) 40-70
Hydraulic hammer working pressure (Mpa) 11-14
Drilling device Power head weight (Kg) 140
Drilling diameter (Mm) φ120-φ200
Drilling speed (Mm/Min) 800-2000
Impact Frequency of Impactor (Bpm) 900-1200
Working air pressure of Impactor (Mpa) 0.6-1.2
Gas consumption of Impactor (m3/min) 7-13
Screw Drill,Screw pile Foundations,Screwable Foundation Post driver
Screw Drill,Screw pile Foundations,Screwable Foundation Post driver
Screw Drill,Screw pile Foundations,Screwable Foundation Post driver
Screw Drill,Screw pile Foundations,Screwable Foundation Post driver
