Use area:
1. Highway guardrail drilling, piling, pulling piles
2, other various sites piling (such as farms, ranches, orchards, etc.)
3. Highway field construction
Power configuration: The diesel engine with reasonable power and excellent performance provides a powerful source of power for construction operations, and the reliability of power and fuel economy have been greatly improved.
Hydraulic system: advanced hydraulic system, high quality hydraulic components and strict assembly process to ensure the high efficiency and durability of the hydraulic system.
Design: The overall frame structure is excellent, and the material is completely national standard. High-strength, good stability, in line with the design sense of industrial beauty, the operator"s working space is more spacious.
Production process: The production process is more reasonable, and the wear parts are all heat treated. The welding process is rigorous, and the entire frame is welded with stress-relief treatment to reduce deformation and improve the testing equipment.
Performance characteristics:
1. The mature and reliable chassis design, the plateau force without attenuation in the plateau, and the slope-free construction slope in mountainous areas are the first choice for safety and reliability.
2, 4-cylinder stepless speed, easy to move, special roads can change their own field, easy to operate, high precision, positioning faster, more efficient than the 260 about 10%.
3, unique heat dissipation design to ensure long-term equipment.
4. The integrated track moves steadily, and the drilling (piling) has high precision.
5. Innovative hydraulic pump design greatly improves construction efficiency.
6, full-time four-wheel drive, four-wheel brake
TECHNICAL PARAMETER
Hydraulic drilling machine
Diesel engine power (KW) 32
Hydraulic system flow (L/Min) 80-110
Rated system pressure (Mpa) 15
Track (M) 1620
Wheelbase (M) 2070
Dimensions (length * width * height)
Weight (Kg) about 1900
Piling device Weight of hammer ((Kg) 180
Hydraulic hammer blow frequency (Bpm) 500-900
Hydraulic hammer working flow (L/min) 40-70
Hydraulic hammer working pressure (Mpa) 11-14
Drilling device Power head weight (Kg) 140
Drilling diameter (Mm) φ120-φ200
Drilling speed (Mm/Min) 800-2000
Impact Frequency of Impactor (Bpm) 900-1200
Working air pressure of Impactor (Mpa) 0.6-1.2
Gas consumption of Impactor (m3/min) 7-13

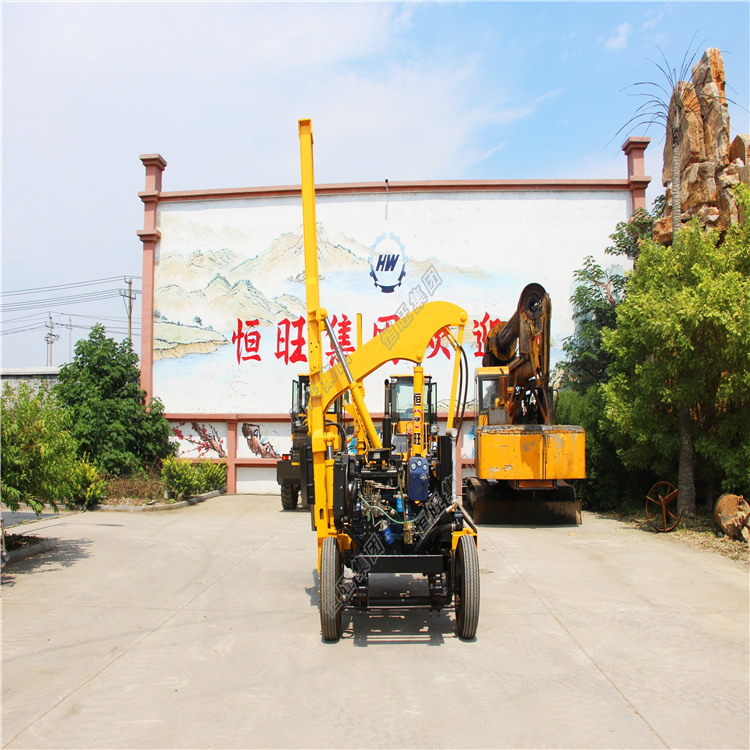

rotary piling rig screw pile driver pole hole digger portable pile machinerotary piling rig screw pile driver pole hole digger portable pile machine

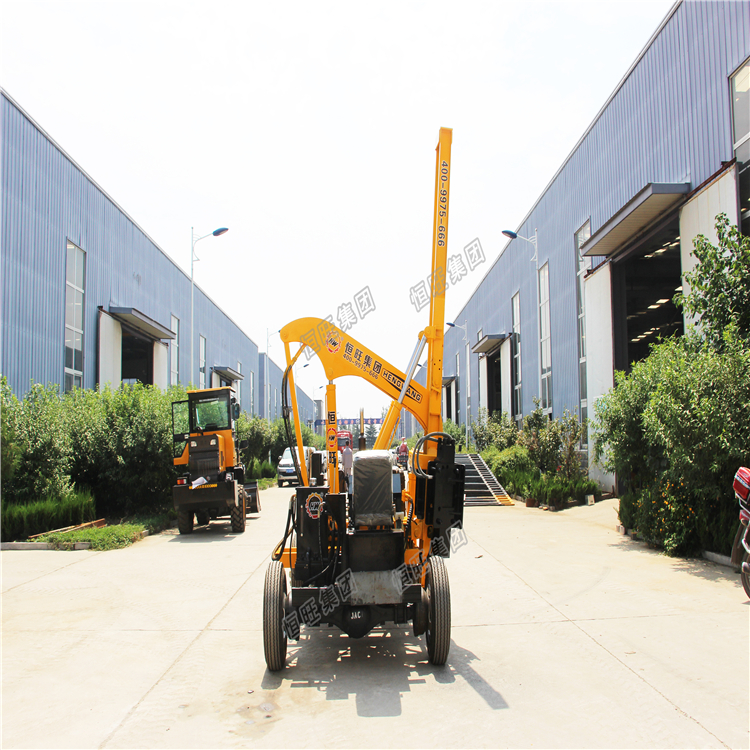

rotary piling rig screw pile driver pole hole digger portable pile machine
