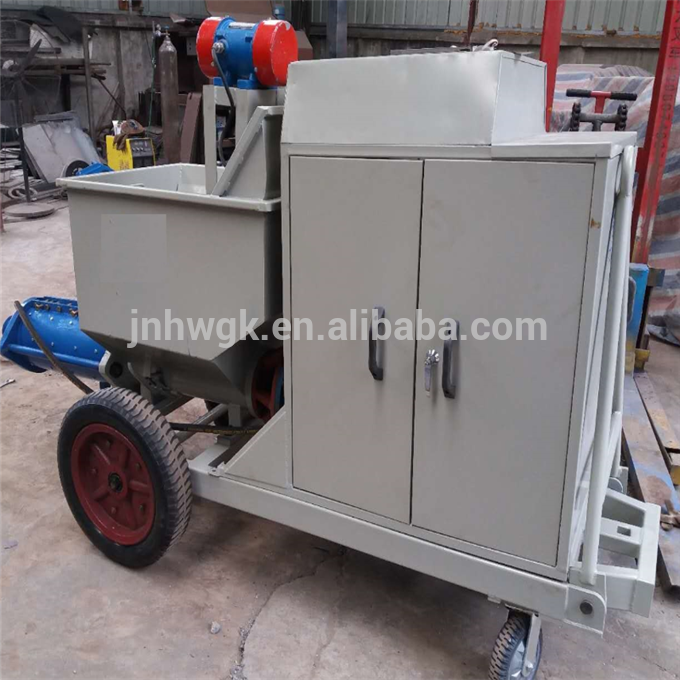

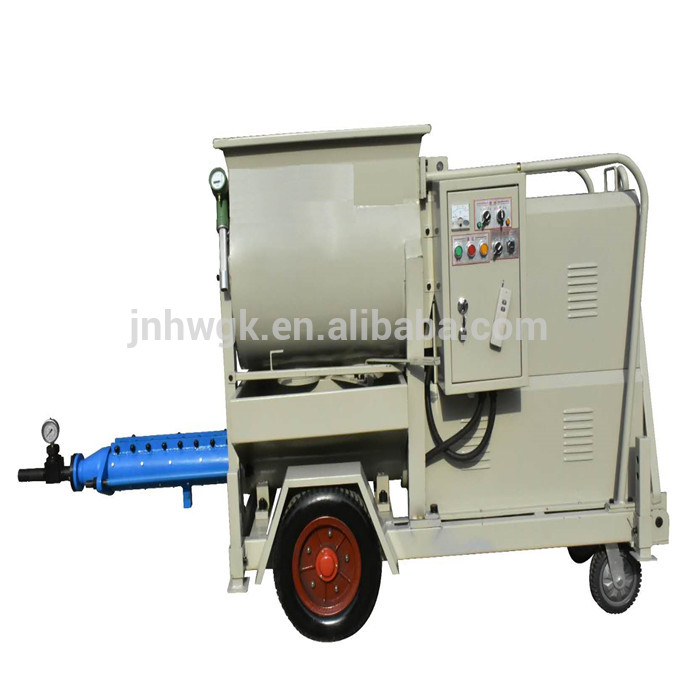

china made high quality grouting machine price/pressure grouting machine/electric grouting machine
Click on the image to view the original image
Product： views：2china made high quality grouting machine price/pressure grouting machine/electric grouting machine
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:23
  Negotiated
Product Details
Overview
Quick Details
Dimension(L*W*H):
2650*850*1200
Weight:
680kg
Condition:
New
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW5000
Power(W):
7.5kw
Certification:
ISO9001
Model:
HW5000
Production capacity:
5m3/h
Name:
electric grouting machine
Motor:
7.5KW
Pressure:
10 Mpa
Air consumption:
150-1000
Delivery distance:
30/80 meters
Bucket capacity:
200L
Particle diameter:
<=5mm
Dimension:
2650*850*1200
After-sales Service Provided:
Overseas service center available
Warranty:
12 Months
Supply Ability
Supply Ability:
1000 Set/Sets per Month electric grouting machine
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao/dalian/shanghai/guangzhou
Lead Time:
withinoneweek
Video Description
Product Description

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine

Screw grout pump is a special transport mortar equipment, which is widely used in highway, railway, tunnel, urban terrain, subway, hydropower station, underground caverns, such as bolt grouting, consolidation grouting and backfill grouting anchor grouting engineering. And it can be used for dam slope, soft rock reinforcement soil curtain grouting and pressure grouting engineering.
Features

1. Continuous stable grouting, no pulse, adjustable pressure, stable flow rate

2. Inclined vertical structure, slurry flow, light weight, wheel design,easy to move

3. The pump head adopts the design of universal joint, flexible rotation

4. The grouting liquid, large range of water-cement ratio and design suitable concentration of thick

5. The wheel use single or double screw, on the same stem diameter, thegrouting adopts double screw pump, displacement is larger and smaller pulse, pressure is stable and smooth operation, low energy consumption.

Parameters

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine

Model  HW5000

Production capacity 5m3/h

Pressure 10mpa

Electric power7.5kw

Bucket capacity200L

Delivery distance:30Meters

particle diameter<=5mm

dimension2650*850*1200

weight680Kg

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine
Detailed Images

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine

Main Features

Name: High Pressure Grout Mixer and Pump Grouting Machine
Brand:HW
Original: China
Domestic famous engines, strong driving force, low fuel consumption

Machine Parts

Name: High Pressure Grout Mixer and Pump Grouting
Brand: HW
Original:Chian
Domestic famous engines, strong driving force, low fuel consumption

ConstructionSite

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine

chinamadehigh quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine
Packing & Delivery

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine
Packaging
Size
2650 (L) * 850 (W) * 1200 (D)
Weight
700



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine
Certifications

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

High Pressure Grout Mixer and Pump Grouting Machine

High Pressure Grout Mixer and Pump Grouting Machine

Our Factory
china made high quality grouting machine price/pressure grouting machine/electric grouting machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

HistoryOrder

china made high quality grouting machine price/pressure grouting machine/electric grouting machine

china made high quality grouting machine price/pressure grouting machine/electric grouting machine
