Click on the image to view the original image

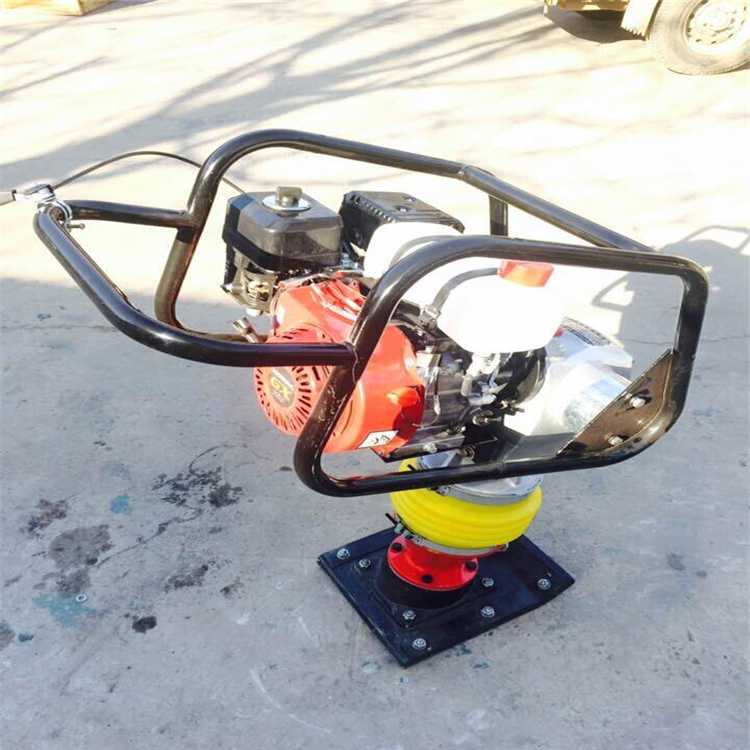

In order to improve the stability of the track bed, our factory has taken the lead in developing the ZH-25 road bed tamping machine. The aircraft has the advantages of novel design, easy operation, convenient access from top to bottom, high strength, high speed, and safe and reliable operation. It is suitable for various types of concrete sleeper lines and turnouts, and it can perform tapping operations on the pillow and track slopes. Three sets are a group, and the combination work is better. The machine is a new type of road maintenance machinery that can improve the quality of the track bed.
Technical Parameter
Internal combustion engine power
Imported Honda 2.2kW (GX100, 3.0Hp)
Fuel tank volume 2.2L
Impact frequency 600 beats/minute
Provoke height 65mm
System oil 40# mechanical oil
Jump height 65mm
Travel speed 17m/min
Shooting efficiency 240 sleepers / group / hour
Dimensions 1000mm×770mm×380mm
Total weight 78kg

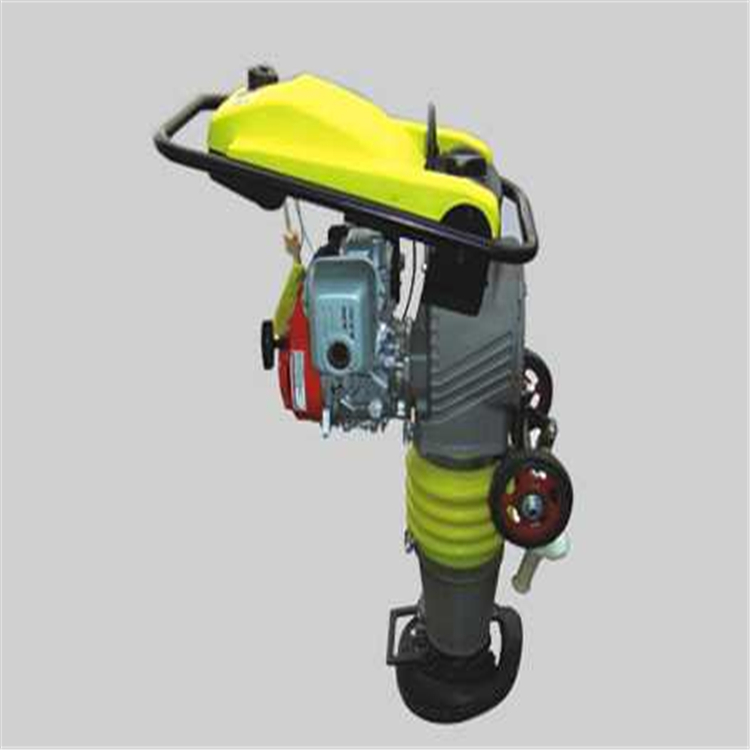

ZH-25 Railway Machine Rail Track Tamping Rammer,Vibrating Rammer,Tamping RammerGasoline Rammer/tamping Rummer,Compact Rammer,Pneumatic Rammer
Gasoline Rammer/tamping Rummer,Compact Rammer,Pneumatic Rammer
