Home > Products > wheels Crawler self propelled scissor lift Track type scissor lift

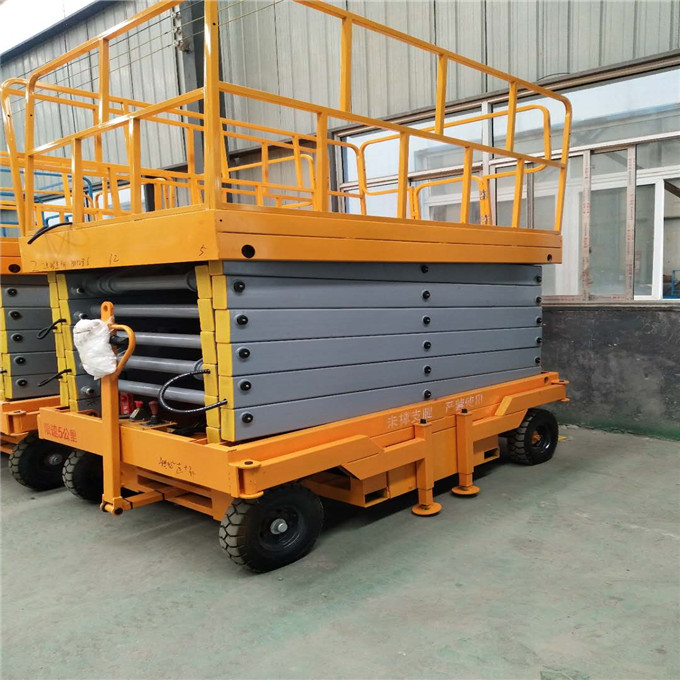

wheels Crawler self propelled scissor lift Track type scissor lift
Click on the image to view the original image
Product： views：2wheels Crawler self propelled scissor lift Track type scissor lift
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:23
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW0.3-12
Lift Mechanism:
Scissor Lift, Scissor Lift
Lift Drive / Actuation:
Hydraulic
Power:
4kw, 2.2KW, AC/DC battery/diesel
Rated Loading Capacity:
350kg
Min. Lifting Height:
4m, 4000mm
Max. Lifting Height:
18m, 18000mm
Table Size:
CUSTOMIZED SIZE,2100*1200mm
Overall Dimensions:
2820*1770*1850mm
Weight:
2260KG
Certification:
ISO,ISO9001:2008 CE Certificate
Lift Drive:
Hydraulic
Name:
CrawlerScissor Lift
Rated Loading:
350
Overall Dimension:
2820*1770*1850mm
After-sales Service Provided:
Overseas service center available
Warranty:
1 Year
Supply Ability
Supply Ability:
10000 Set/Sets per Month CrawlerScissor Lift
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao/dalian/shanghai/tianjin
Lead Time:
within one week
Video Description

wheels  Crawler self propelled scissor lift Track type scissor lift

Product Description

wheels  Crawler self propelled scissor lift Track type scissor lift



Model

Height

Rate Capacity

Platformsize(mm)

Overall size(mm)

Weight

 Engine

HW0.3-4

4m

300kg

2100*820

2200*980*1100

850kg

AC /DC/Diesel

HW0.3-6

6m

300kg

2100*820

2200*950*1200

900kg

AC /DC/Diesel

HW0.3-7

7m

300kg

2100*820

2200*950*1280

950kg

AC /DC/Diesel

HW0.3-8

8m

300kg

2100*900

2200*1060*1380

1100kg

AC /DC/Diesel

HW0.3-9

9m

300kg

2100*900

2200*1060*1500

1260kg

AC /DC/Diesel

HW0.3-10

10m

300kg

2100*1200

2200*1350*1530

1500kg

AC /DC/Diesel

HW0.3-11

11m

300kg

2100*1200

2200*1400*165

1700kg

AC /DC/Diesel

HW0.3-12

12m

300kg

2550*1500

2720*1670*1750

2480kg

AC /DC/Diesel

HW0.3-14

14m

300kg

2550*1500

2800*1800*1950

2800kg

AC /DC/Diesel

HW0.3-16

16m

300kg

3220*1650

3600*1950*2200

4500kg

AC /DC/Diesel

HW0.3-18

18m

300kg

3220*1650

3600*1950*2400

4800kg

AC /DC/Diesel

wheels  Crawler self propelled scissor lift Track type scissor lift

Packaging & Shipping
wheels  Crawler self propelled scissor lift Track type scissor lift
wheels  Crawler self propelled scissor lift Track type scissor lift
Our Services

wheels  Crawler self propelled scissor lift Track type scissor lift



wheels  Crawler self propelled scissor lift Track type scissor lift

Company Information

wheels  Crawler self propelled scissor lift Track type scissor lift
