tractor water well drilling rig use air compressor rock drilling

Click on the image to view the original image

Product：	views：2tractor water well drilling rig use air compressor rock drilling
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:23

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: TQZ150

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 30hp

Dimension(L*W*H):: 3.4*1.5*2.2m

Weight:: 3500KG

Certification:: ISO9001

Name:: water well drilling rig

Max drilling diameter:: 219mm

Max drilling depth:: 150m

Rotary torque:: 4000NM

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Year water well drilling rig

Packaging & Delivery

Packaging Details: 40" CONTAINER

Port: QINGDAO

Lead Time:: 7days

Product Details

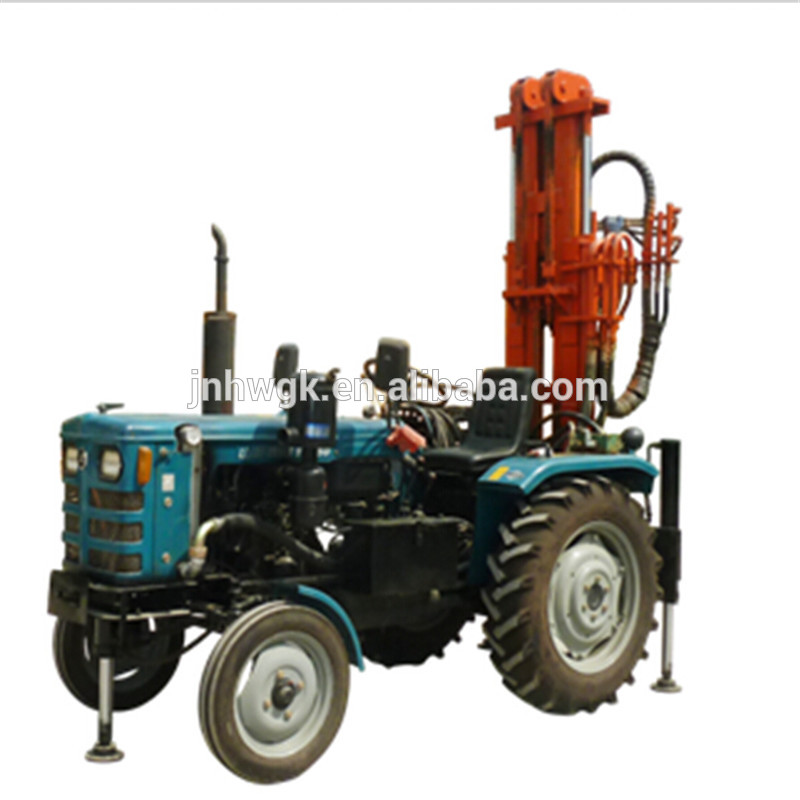

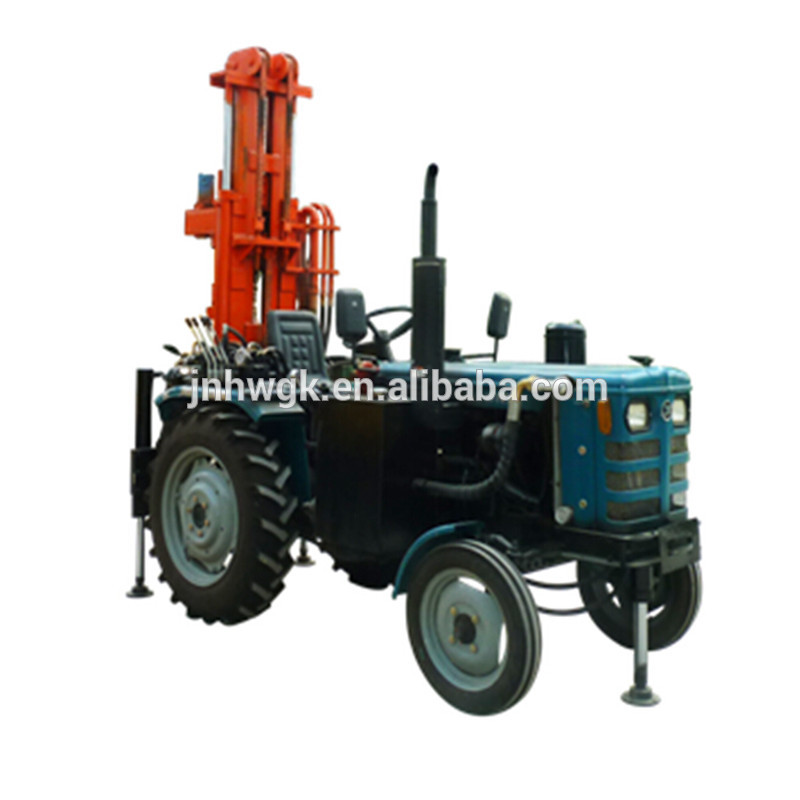

tractor water well drilling rig

This product is an integrated drilling equipment by combiningtractor and pneumatic water well drilling rig,which is easy to walk and combined the air compressor . Make the construction more convenient and efficient.

Product Introduction

tractor water well drilling rig

Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.

Product Parameters

Model	TQZ150
Overall weight	3.5T
Dimension	340015002200MM
Drilling diameter	130-219MM
Drilling depth	150M
One-time advance length of the drill	1500MM
Traveling speed	30KW/H
Climbing capacity	25°
Minimum ground clearance	250MM
Working Air Pressure	1.45-2.5 MPA
Main machine power	30HP
Rotation speed	38 - 80 RPM
Rotary torque	3500-4000 NM
