Home > Products > new improved YCD-22 hydraulic Rail Tamper,Rail Steel Tamping Machine
new improved YCD-22 hydraulic Rail Tamper,Rail Steel Tamping Machine
Click on the image to view the original image
Product： views：2new improved YCD-22 hydraulic Rail Tamper,Rail Steel Tamping Machine
Branch： Heng wang
Type： Tie Plates
Size： 60X45X70 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:23
  Negotiated
Product Details
Overview
Quick Details
Type:
Tie Plates
Material:
Steel
Dimensions (L x W x H) (mm):
1480*762*1485mm
Place of Origin:
Shandong, China
Brand Name:
Heng wang
Name:
YCD-22hydraulic Rail Tamper,Rail Steel Tamping Machine
Surface:
Plain
Certificate:
ISO9001:2008
Standard:
DIN17221
Quality Control:
Inspection
Raw material:
Steel Bar
Usage:
Tamping
Application:
Rail Maintenance
Processing:
Casting
Color:
Clients'demend

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X45X70 cm
Single gross weight:
65.0 kg
Package Type:
wooden caseor as your requirement
Lead Time:
Quantity(Piece)1 - 1>1
Est. Time(days)3To be negotiated
Product Description

Product Application

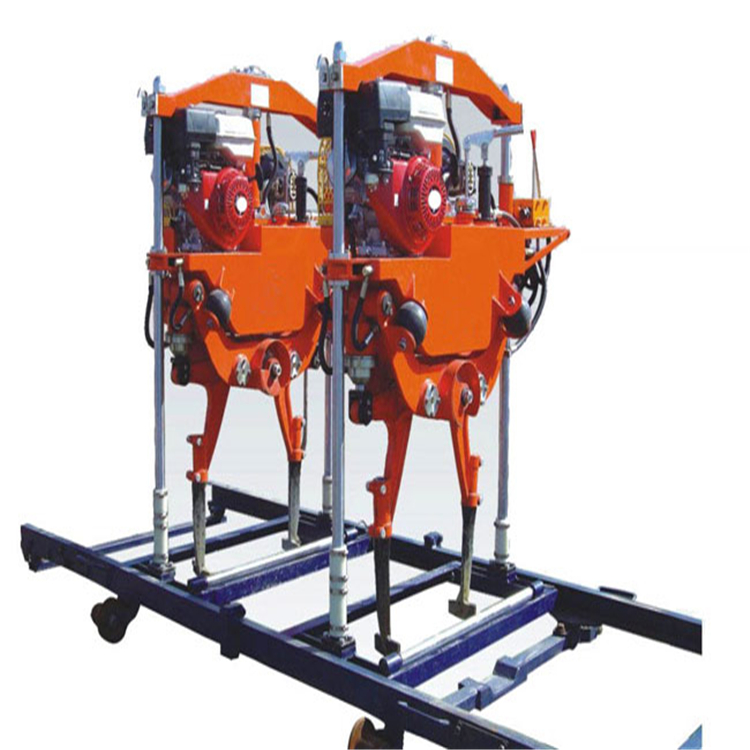

YCD-22 hydraulic ballast tamping machine is a special purpose machinery used in the
maintenance of the railway works.
It is mainly used for the ballast tamping of the rail sleeper. It can be used to work in the interval time of the trains and no need for interval close. It has three kinds of engine: gasoline, diesel and motor.



Model:YCD-22Switch Tamping Machine
Dimension:1200X520X1650mm
Material:Metal and Stainless Steel
Color:Yellow
Application:Rail Track Ballast Tamping Operation
Motive power:Honda GX270 Engine Power : 6.6 kw
Hydraulic pressure:4~5MPa
Vibration frequency:60~67Hz
Exciting force:22kN
Max.under thrust force:110mm±10mm
Production efficiency:240 Pieces /Hour
Main frame net weihgt:300Kg




Certifications
Factory and Team
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1200*520*1650mm
Weight
320KG



Packaging Details
The normal package is wooden box(Size: 1200*520*1650mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
